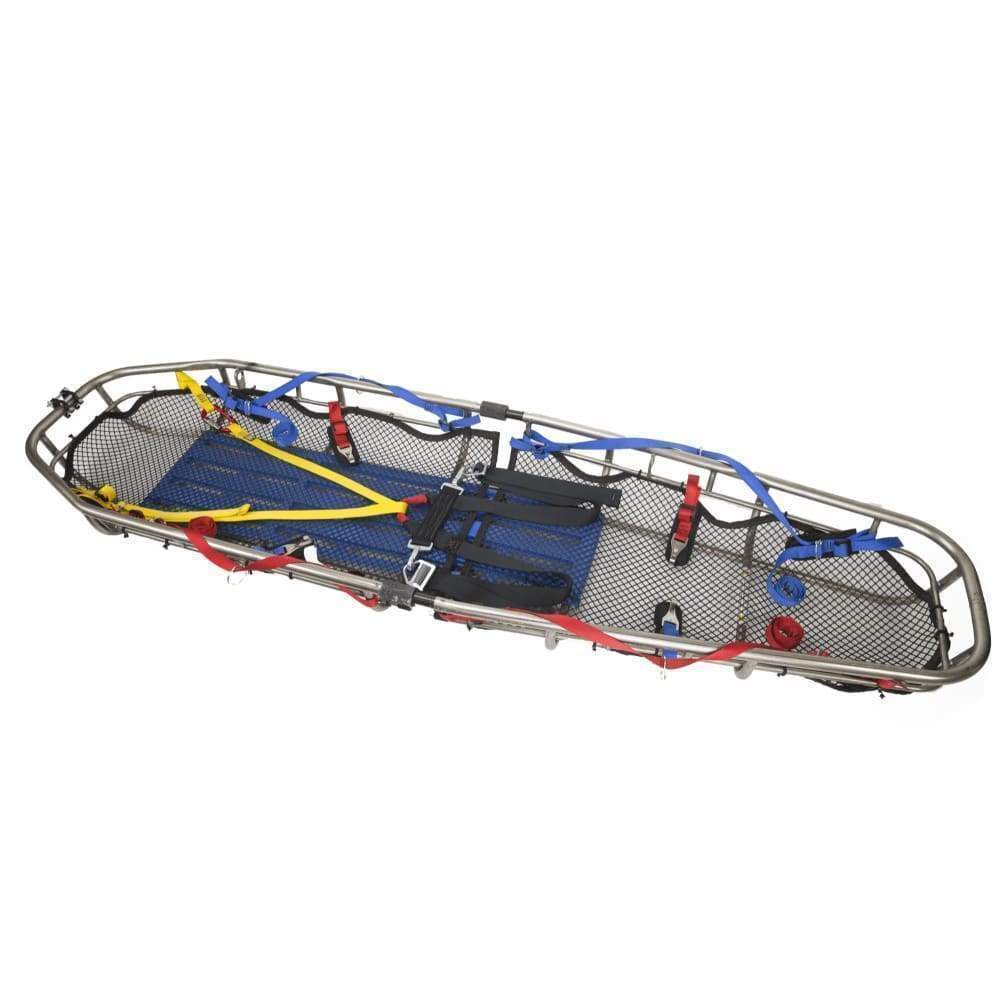

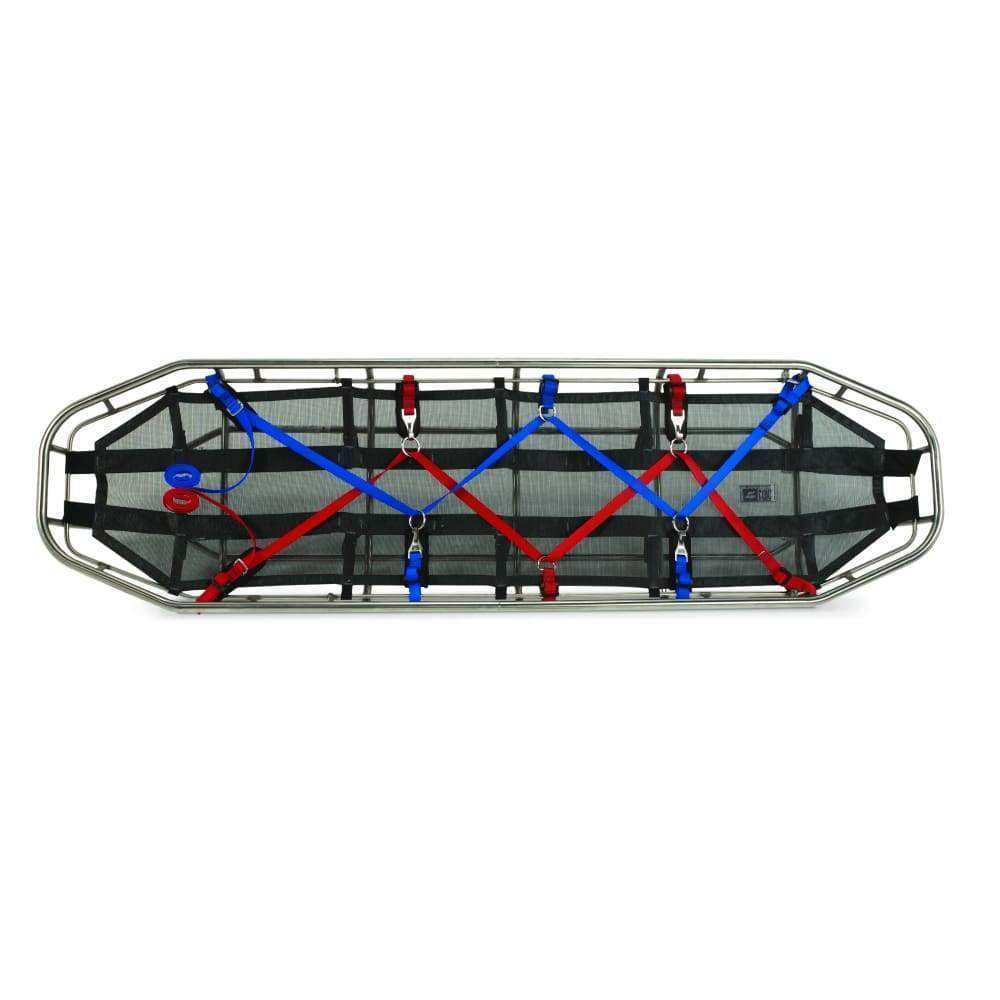

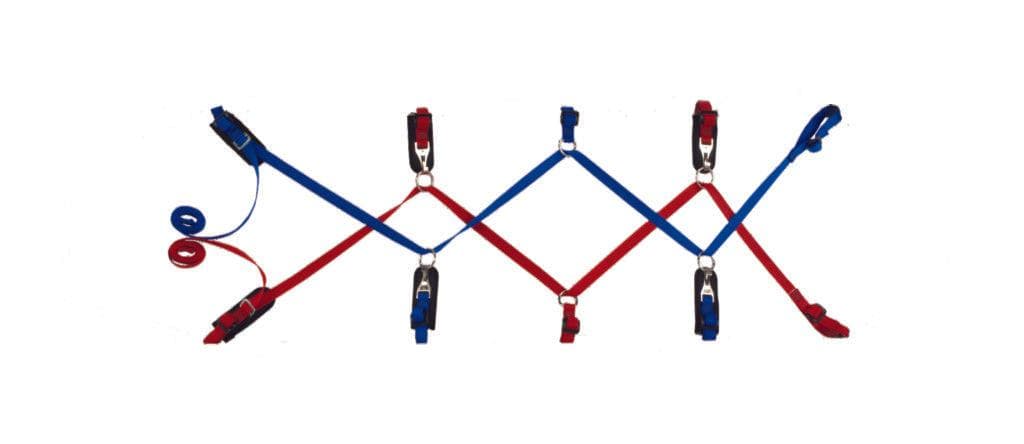

The Patient Tie-In System is designed to save critical patient packaging time by providing a fast, secure, and intuitive method for securing patients in litters and rescue stretchers. Developed through extensive field testing and training applications, this system replaces improvised webbing lashings with a purpose-built solution that improves efficiency, consistency, and patient comfort during rescue operations.
Color-coded webbing and snap-ring closures allow rescuers to quickly identify attachment points and secure patients with confidence. The lightweight, adjustable design helps accommodate a wide range of patient sizes while maintaining comfort and stability during transport. Available for both one-piece and two-piece litters, the system can also be used with backboards and other patient transport devices.
Features
• Color-coded webbing for fast, intuitive patient packaging
• Snap-ring closures help reduce patient packaging time
• Lightweight and adjustable design for improved patient comfort
• Compatible with rescue litters, stretchers, and backboards
• Designed to provide secure patient restraint during transport
• Available for both one-piece and two-piece litter configurations
• Durable construction for demanding rescue environments
• Includes storage bag for organized transport and deployment
Specifications
• Manufacturer: CMC
• Product Type: Patient Tie-In System
• Compatible Applications: Technical Rescue, EMS, Confined Space Rescue, High-Angle Rescue
Patient Tie-In System Only (One-Piece Litter)
• Item Number: 724151
• Configuration: One-Piece Litter
• Components Included: Patient Tie-In System Only
• Weight: 2.8 lb (1.2 kg)
• Color: Red / Blue
Patient Tie-In System Only (Two-Piece Litter)
• Item Number: 724152
• Configuration: Two-Piece Litter
• Components Included: Patient Tie-In System Only
• Weight: 3.0 lb (1.3 kg)
• Color: Red / Blue

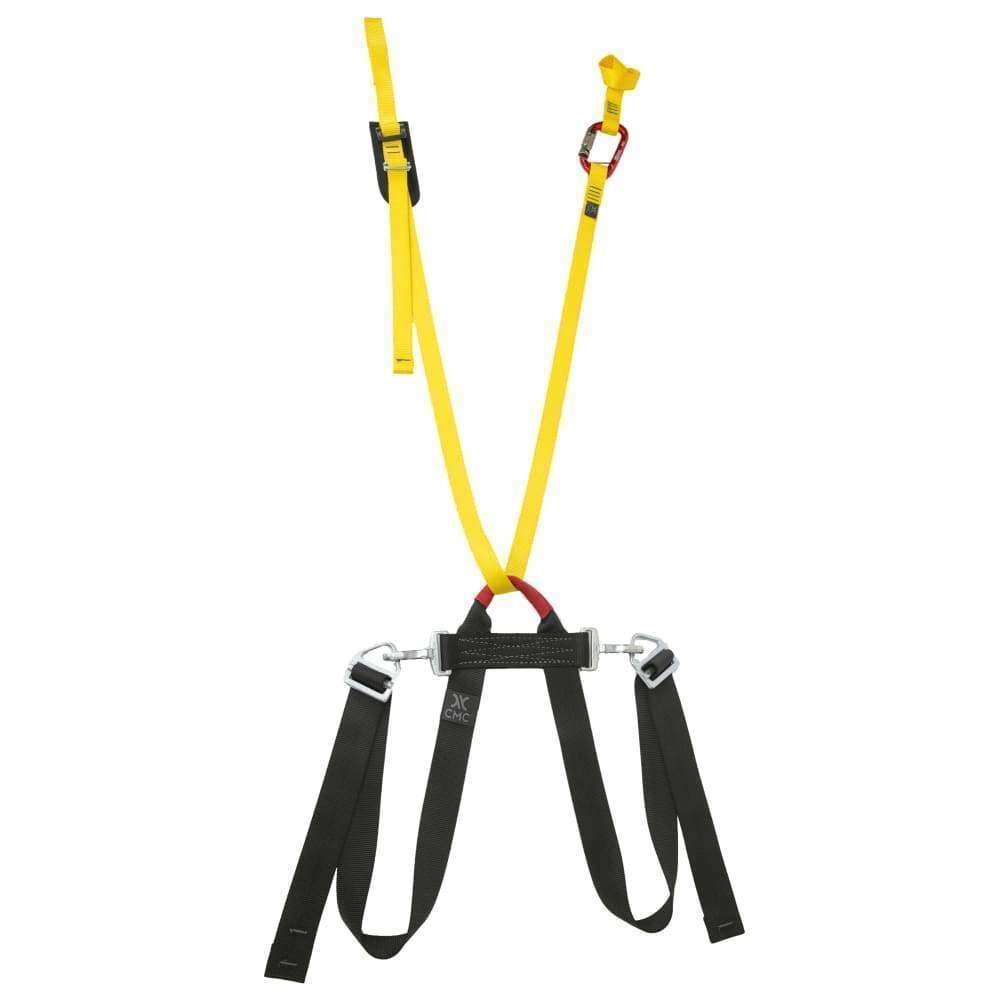

Pelvic Harness Only
• Item Number: 724153
• Configuration: Pelvic Harness
• Components Included: Pelvic Harness Only
• Weight: 2.5 lb (1.1 kg)
• Color: Yellow
Applications
• Technical Rescue
• High-Angle Rescue
• Rope Rescue
• Confined Space Rescue
• EMS Patient Packaging
• Litter and Stretcher Operations
• Backboard Patient Restraint Systems
