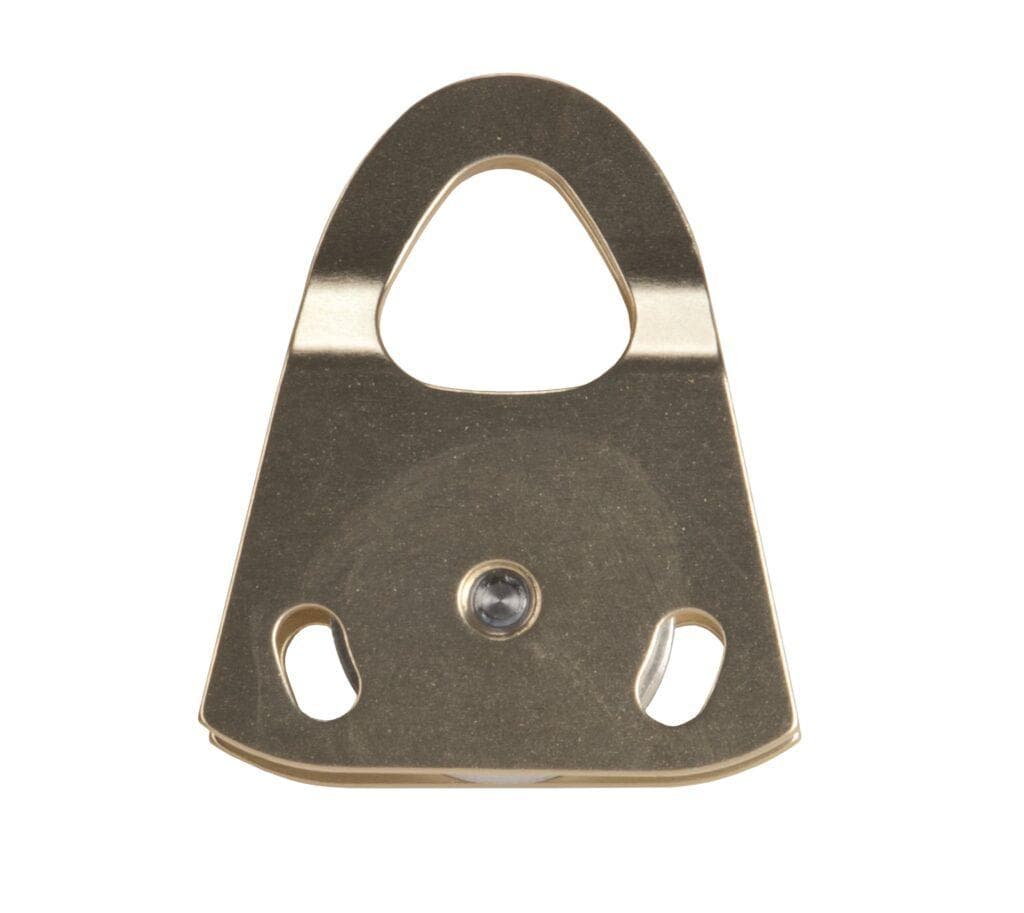

The PROTECH™ Single Pulley is a lightweight, high-strength Prusik-minding pulley designed for technical rescue, rope access, swift water rescue, ski patrol, tower work, and other applications where minimizing equipment weight is critical. Precision-machined side plates optimize the strength-to-weight ratio while maintaining exceptional durability in demanding environments.

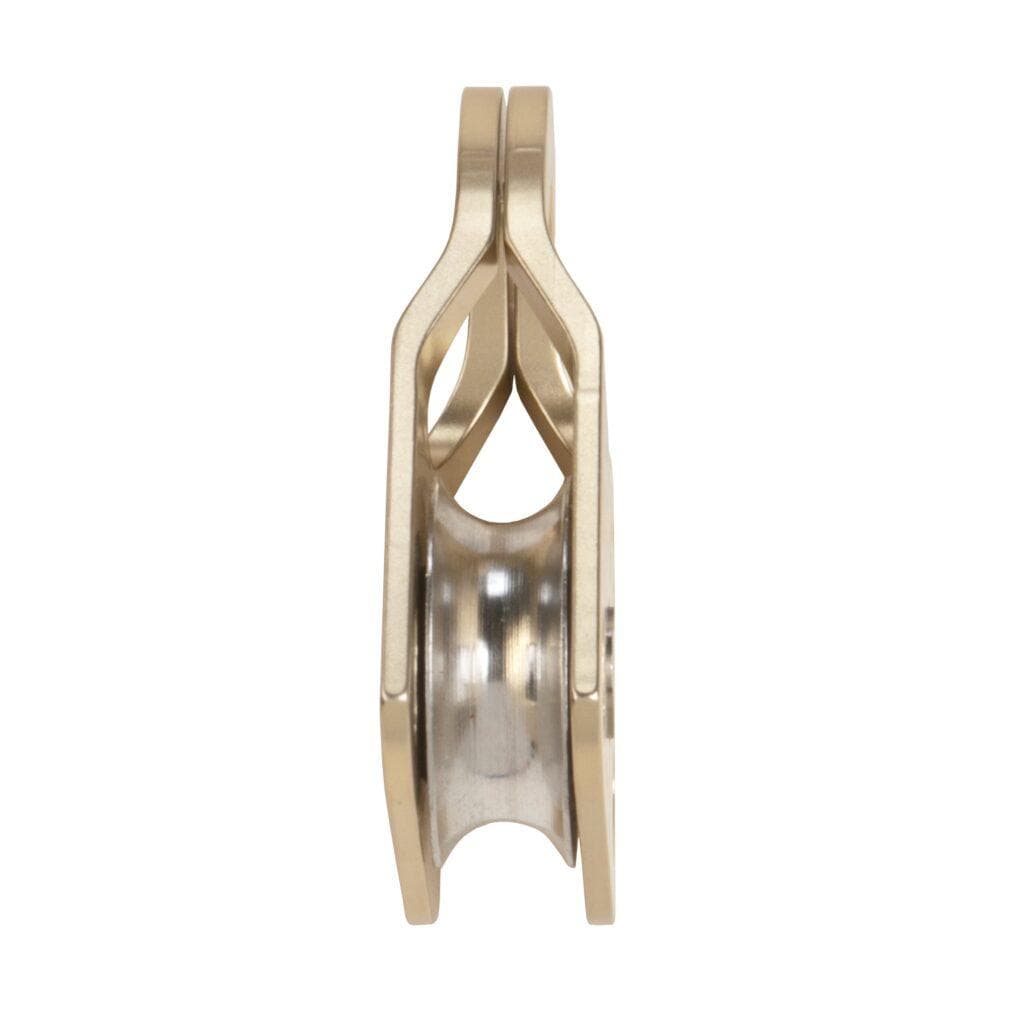

Engineered with extremely low-profile stainless steel hardware, the PROTECH Single Pulley helps reduce snagging on rocks, roots, and other obstacles encountered in the field. Its unique axle assembly creates a smooth side plate design while providing impressive strength. The aluminum sheave rides on sealed ball bearings for outstanding efficiency and smooth operation, making it an excellent choice for small block-and-tackle systems and mechanical advantage setups.
Features
• Lightweight design ideal for technical rescue and rope access applications
• Full-strength Prusik-minding pulley configuration
• Precision-machined side plates maximize strength while reducing weight
• Low-profile stainless steel hardware minimizes snagging hazards
• Smooth side plate design with unique high-strength axle assembly
• Aluminum sheave mounted on sealed ball bearings for high efficiency
• Excellent for small block-and-tackle and mechanical advantage systems
• Compatible with rope diameters up to 11 mm (7/16 in)
• NFPA General Use rated
Specifications
• Manufacturer: CMC
• Product Type: Single Pulley
• Model: PROTECH™ Single Pulley
• Item Number: 300501
• Type: Single Sheave
• Weight: 3.3 oz (94 g)
• Sheave Tread Size: 1 x 7/16 in (25 x 11 mm)
• Color: Sand
• Maximum Rope Diameter: 11 mm (7/16 in)
• NFPA Rating: General Use

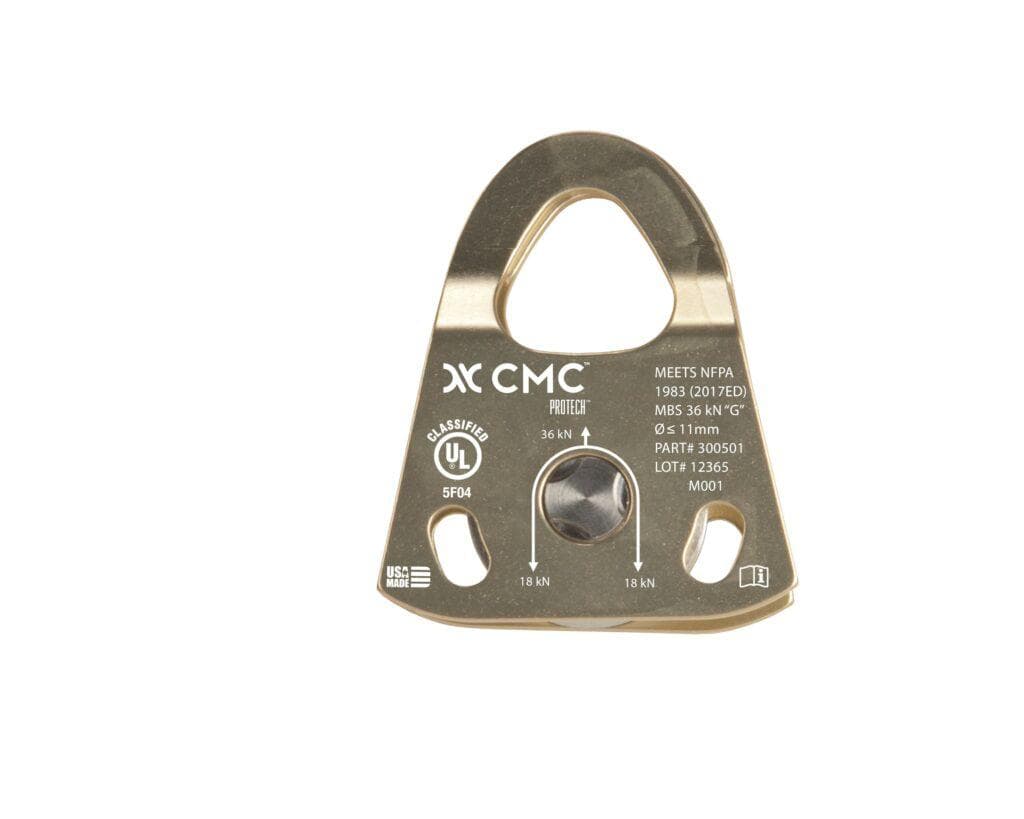

• 3 Sigma MBS: 36 kN (8,093 lbf)
Important Note
• For double-sheave pulley systems, never load only one side of the pulley.
