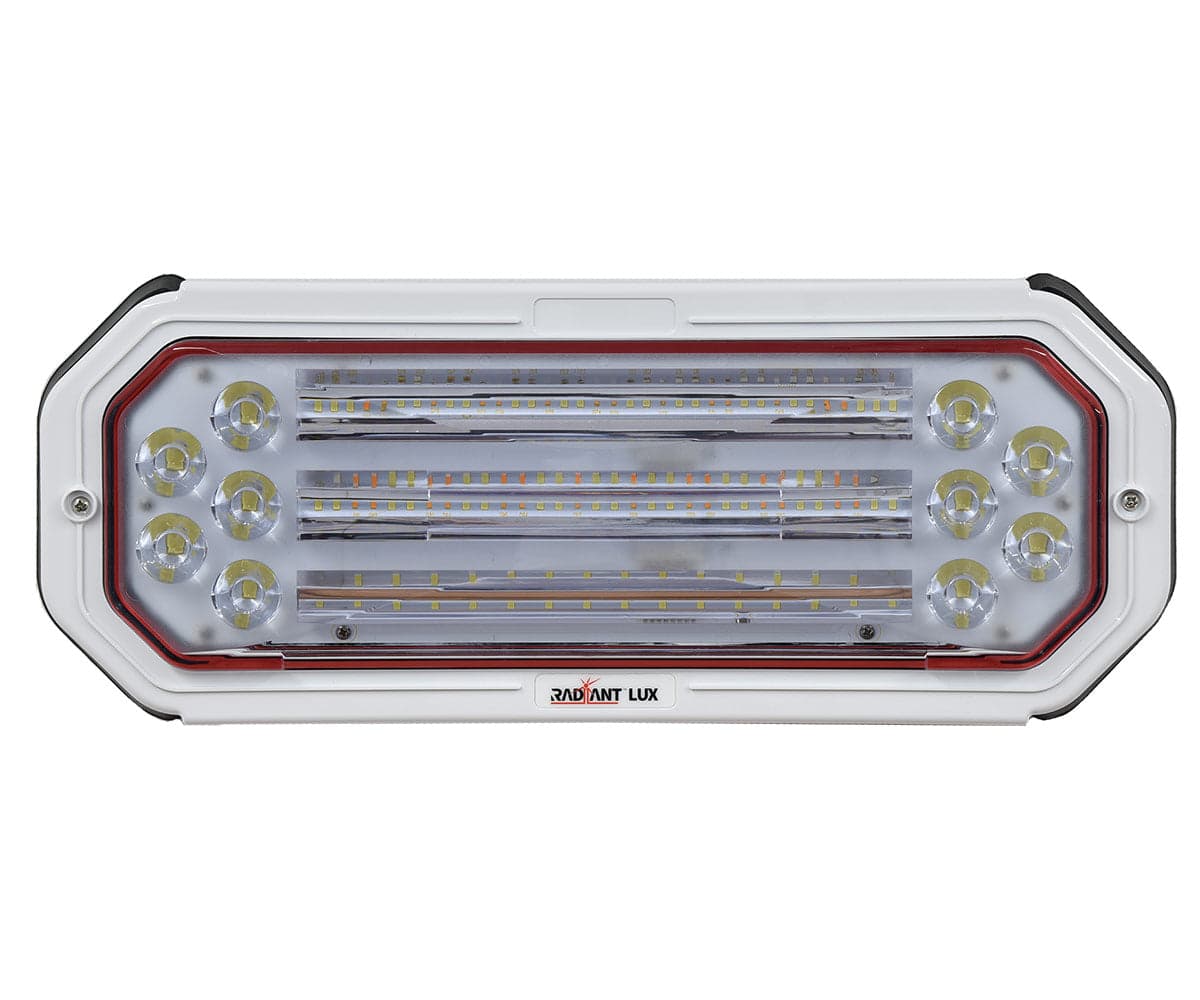

The RADIANT LUX LED Surface Mount delivers industry-leading scene lighting performance in a sleek, low-profile package designed for fire apparatus, rescue vehicles, utility fleets, and specialty response units. Producing an impressive 22,000 raw lumens, the RADIANT LUX is engineered to provide powerful, evenly distributed illumination while maximizing efficiency and minimizing power consumption. Advanced optics and premium LED technology direct light precisely where it is needed, improving scene visibility and operational safety.
Designed for continuous-duty performance, the RADIANT LUX utilizes an advanced power supply and innovative heat sink technology to maintain full light output without degradation during extended operation. Available with standard switching or optional CANbus control, operators can customize light output, independently control spot and flood lighting sections, and optimize power consumption for a wide range of scene lighting applications.
Features
• High-output LED surface mount scene light
• Produces up to 22,000 raw lumens
• Delivers 19,800 effective lumens
• Advanced engineered optic design maximizes usable light output
• Even light distribution improves scene visibility and safety
• Advanced heat sink design maintains full light output during extended operation
• Available with standard switch control or optional CANbus control
• Dimmable when equipped with CANbus control
• Adjustable brightness for power management and scene customization
• Spot and flood sections can be controlled independently
• Spot-only mode for long-range illumination
• Flood-only mode for area and ground lighting
• Combined spot and flood mode for maximum scene coverage
• Multiple lighting combinations available through CANbus control
• Sleek, rugged housing design
• Available with black, chrome, or white bezel options
• Suitable for fire, rescue, EMS, utility, and industrial vehicle applications
• IP68-rated for dust and water protection
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: RADIANT LUX LED
• Product Type: Surface Mount Scene Light
• Light Output:
• Raw Lumens: 22,000
• Effective Lumens: 19,800
• Color Temperature: 6500K (Daylight White)
• LED Configuration:
• 10 Spot LEDs
• 56 Flood LEDs
• Power Consumption: 150 Watts
• Environmental Rating: IP68
• Maximum Operating Ambient Temperature: 115°F (45°C) without light output derating
• Controller Options:
• Standard Switch Control
• Optional CANbus Control
DC Model Specifications
• Voltage: 12/24 VDC
• Current Draw:
• 12.5 Amps (12V)
• 6.3 Amps (24V)
• Dimensions:
• 16.24" W x 2.2" D x 6.375" H
• 412.5 mm W x 55.8 mm D x 161.93 mm H
• Weight:
• 7.0 lbs.
• 3.1 kg
AC Model Specifications
• Voltage: 120/240 VAC
• Current Draw:
• 1.25 Amps (120V)
• 0.7 Amps (240V)
• Dimensions:
• 16.24" W x 3.7" D x 6.375" H
• 412.5 mm W x 93.98 mm D x 161.93 mm H
• Weight:
• 7.5 lbs.
• 3.4 kg
CANbus Lighting Functions
• Brightness Control
• Power Consumption Management
• Independent Spot Light Control
• Independent Flood Light Control
• Spot-Only Operation
• Flood-Only Operation
• Combined Spot and Flood Operation
• Custom Lighting Combinations
Note: The RADIANT LUX LED Surface Mount combines exceptional light output, advanced optical performance, and intelligent lighting control options to provide one of the most powerful and versatile surface-mounted scene lights available for emergency and specialty vehicle applications.
