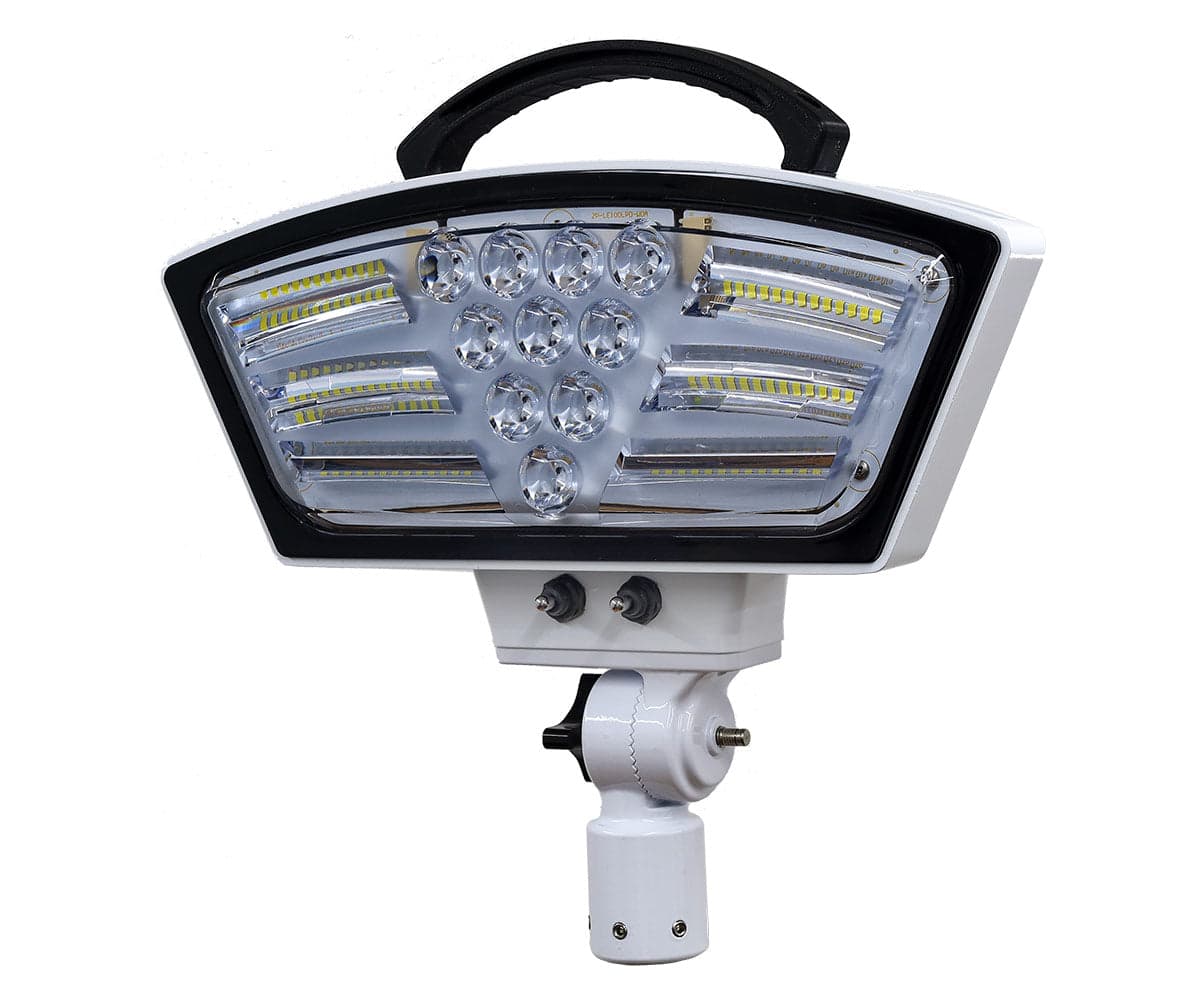

The Radiant MAX LED Lampheads deliver industry-leading scene lighting performance with up to 32,000 lumens of ultra-bright white light. Designed for fire apparatus, rescue vehicles, utility fleets, industrial equipment, and specialty response units, the Radiant MAX combines advanced optics, multiple lighting modes, and rugged construction to provide exceptional visibility in the most demanding environments.
The Radiant MAX utilizes a unique combination of spot and flood optics to create a highly effective illumination pattern that enhances both work area visibility and long-range scene coverage. Operators can independently control the spot and flood functions to tailor lighting performance for specific tasks, while integrated brightness and power management controls provide additional flexibility. Available in both AC and DC configurations, the Radiant MAX can be installed on FRC poles, tripods, fixed mounts, or ordered as a standalone lamphead.
Features
• High-performance LED scene lighting lamphead
• Produces up to 32,000 lumens of ultra-bright white light
• Uniform flood and spot combination beam pattern
• Advanced optics maximize usable illumination
• Available as a standalone lamphead or with FRC mounting systems
• Adjustable mounting arm allows vertical lamphead positioning
• Robust arm and swivel assembly for durability
• Compatible with FRC poles, tripods, fixed mounts, and top mounts
• Available in both AC and DC power configurations
• Instant-on operation at full brightness
• Designed for emergency service, utility, and industrial applications
Lighting Features
• New optic design combines spot and flood illumination
• 10 spot LEDs provide long-distance visibility
• 78 flood LEDs provide broad work area coverage
• Spot-only mode for penetrating long-range illumination
• Flood-only mode for ground and work area lighting
• Combined spot and flood mode for maximum scene coverage
• Adjustable brightness control
• Power consumption control capability
• Bright white 6500K daylight color temperature
• Uniform light distribution across the scene
Control Features
• On/Off switch
• Adjustable brightness control
• Power consumption management
• Independent spot light control
• Independent flood light control
• Combined spot and flood operation
• Instant full-intensity startup
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Radiant MAX LED
• Product Type: LED Scene Light Lamphead
• Raw Light Output: 32,000 Lumens
• Effective Light Output: 28,000 Lumens
• Color Temperature: 6500K (Daylight)
• LED Distribution:
• 10 Spot LEDs
• 78 Flood LEDs
• Power Consumption: 220 Watts
• Environmental Rating: IP68
• Maximum Ambient Operating Temperature:
• 115°F (45°C) without light output derating
Dimensions
• Width: 13.75" (349.25 mm)
• Depth: 3.75" (95.25 mm)
• Height: 7.5" (190.5 mm)
Weight
• DC Model with Arm and Swivel: 7.9 lbs. (3.6 kg)
• AC Model with Arm and Swivel: 8.9 lbs. (4.0 kg)
Electrical Specifications
• 12/24 VDC
• 18 Amps @ 12V
• 9 Amps @ 24V
• 120/240 VAC
• 1.7 Amps @ 120V
• 0.9 Amps @ 240V
Mounting Options
• FRC Pole Mounts
• FRC Tripods
• Fixed Mounts
• Top Mounts
• Standalone Lamphead Configuration
Applications
• Fire Apparatus Scene Lighting
• Rescue Vehicle Operations
• EMS Response Units
• Utility Service Vehicles
• Industrial Facilities
• Incident Command Areas
• Large-Area Emergency Scene Illumination
Note: The Radiant MAX LED Lamphead combines advanced spot and flood optics, multiple lighting modes, and up to 32,000 lumens of output to provide exceptional scene visibility, operational flexibility, and reliable performance in the most demanding emergency response environments.
