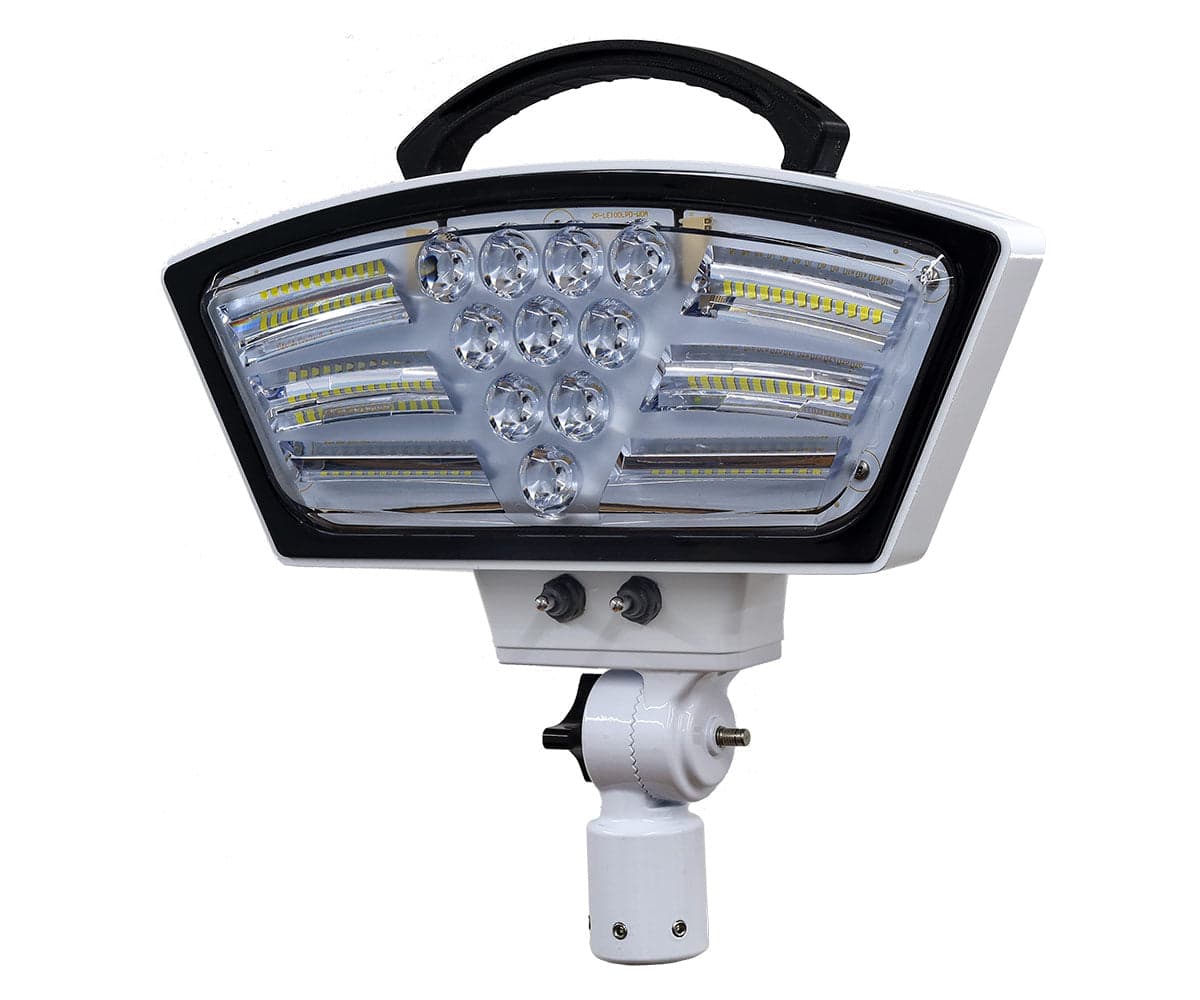

The RADIANT MAX LED Fixed Side Mount combines powerful scene illumination with a rugged side-mounted pedestal system designed for fire apparatus, rescue vehicles, utility trucks, and specialty response units. Utilizing the durable 580 fixed pedestal mount, this lighting system provides exceptional flexibility with 450° of lamphead rotation, allowing operators to precisely direct light where it is needed while maintaining a secure position during vehicle operation.
The RADIANT MAX LED lamphead produces an impressive 32,000 lumens through an advanced combination flood-and-spot optical system. This unique beam pattern delivers broad work area illumination while simultaneously projecting light farther downrange for improved visibility. The side-mounted pedestal incorporates a self-adjusting friction brake that prevents unwanted movement and maintains the selected lamphead position even in demanding operating environments.
Features
• Fixed side-mounted scene light system
• 580 pedestal mount with side-mount bracket
• Lamphead rotates up to 450°
• Self-adjusting friction brake prevents unwanted rotation
• Produces up to 32,000 lumens of bright white light
• Advanced combination flood-and-spot beam pattern
• Enhanced close-range work area illumination
• Long-distance object visibility and scene coverage
• Advanced optical design maximizes usable light output
• Spot beam for penetrating long-range illumination
• Flood beam for area and ground lighting
• Combined flood and spot mode for maximum scene coverage
• Robust arm and swivel assembly
• Instant-on full-intensity illumination
• Available for fixed-mount installations
• Suitable for fire, rescue, EMS, utility, and industrial applications
Lighting Features
• New optic design combines spot and flood lighting technologies
• Uniform scene illumination with improved light distribution
• Spot-only mode for long-distance lighting
• Flood-only mode for area illumination
• Combined flood-and-spot mode for maximum visibility
• Adjustable brightness control
• Power consumption management capability
• Enhanced work area visibility in all operating conditions
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: RADIANT MAX LED
• Product Type: Fixed Side Mount Scene Light
• Mount Style: 580 Fixed Pedestal with Side-Mount Bracket
• Rotation: 450°
• Rotation Control: Self-Adjusting Friction Brake
• Maximum Light Output: 32,000 Lumens
• Beam Pattern: Combination Flood and Spot
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Arm Assembly: Heavy-Duty Swivel Mount
Switch Box Functions
• On/Off Control
• Brightness Control
• Power Consumption Control
• Spot-Only Mode
• Flood-Only Mode
• Combined Flood and Spot Mode
Note: The RADIANT MAX LED Fixed Side Mount delivers high-output scene lighting with exceptional positioning flexibility, making it an ideal solution for apparatus requiring powerful side-scene illumination and long-range visibility from a durable fixed mounting platform.
