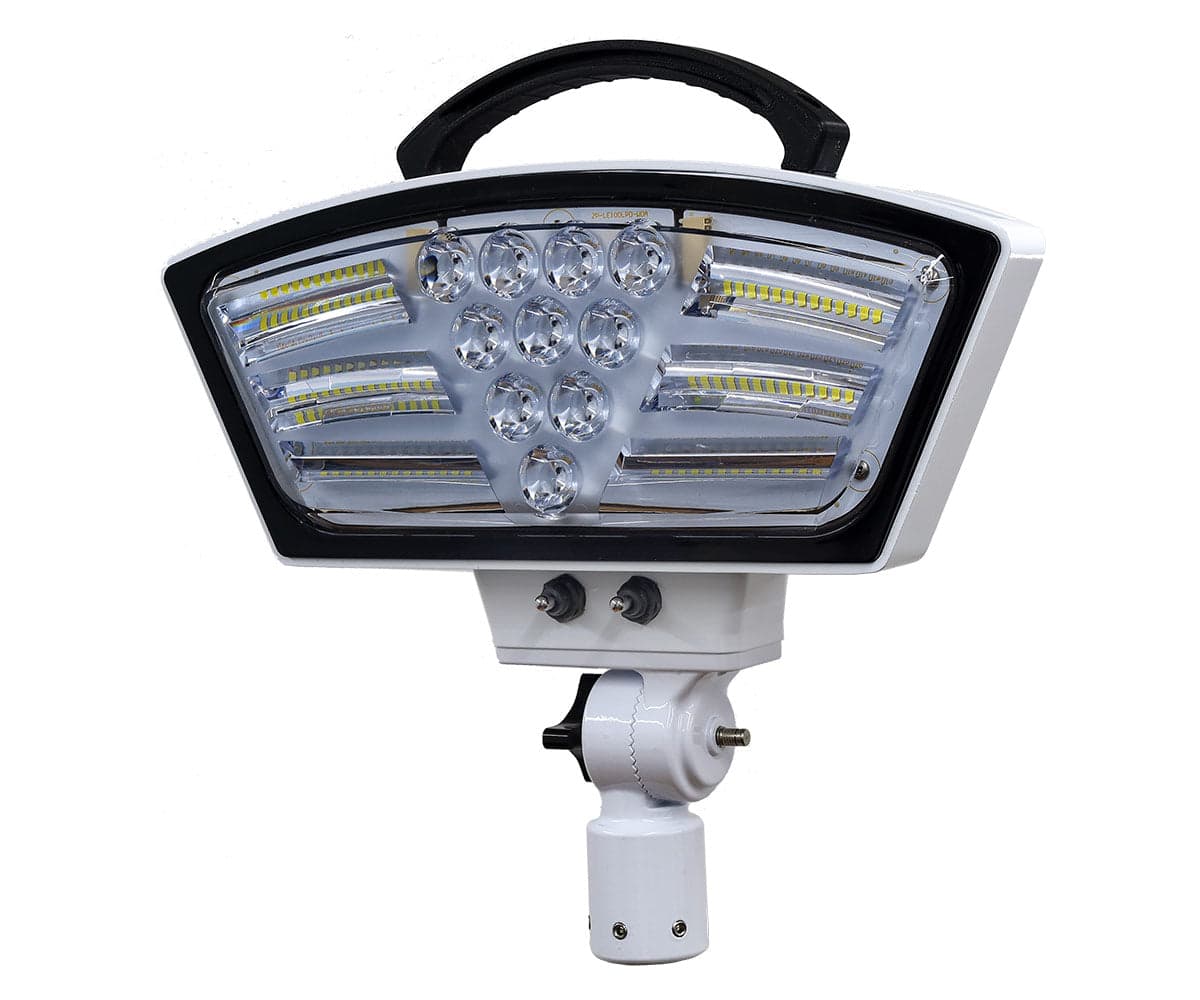

The RADIANT MAX LED Fixed Top Mount combines high-output scene lighting with the rugged and versatile 570 Fixed Top Mount pedestal system. Designed for fire apparatus, rescue vehicles, utility trucks, and specialty response units, this configuration provides exceptional lighting coverage and positioning flexibility while maintaining a secure installation for demanding emergency response environments.
The 570 Fixed Top Mount allows the lamphead to rotate through a full 450°, providing complete 360° coverage plus an additional quarter turn to eliminate blind spots around the vehicle. A built-in rotation stop protects internal wiring from binding, while an integrated friction mechanism keeps the lamphead securely positioned during vehicle travel. Paired with the RADIANT MAX LED lamphead, which delivers up to 32,000 lumens through an advanced flood-and-spot optical system, this mounting solution provides powerful illumination for both nearby work areas and distant scene visibility.
Features
• Fixed top-mounted scene light system
• 570 Fixed Top Mount pedestal design
• Lamphead rotates up to 450°
• Full-circle coverage plus an additional quarter turn
• Built-in wiring stop prevents internal cable binding
• Integrated friction mechanism prevents unwanted rotation during travel
• Produces up to 32,000 lumens of bright white light
• Advanced combination flood-and-spot beam pattern
• Enhanced close-range work area illumination
• Long-distance object visibility and scene coverage
• Advanced optical design maximizes usable light output
• Robust arm and swivel assembly
• Instant-on full-intensity illumination
• Suitable for fire, rescue, EMS, utility, and industrial applications
• Available for permanent vehicle mounting installations
Lighting Features
• New optic design combines spot and flood lighting technologies
• Uniform scene illumination with improved light distribution
• Spot-only mode for long-range penetrating light
• Flood-only mode for area and ground illumination
• Combined flood-and-spot mode for maximum scene coverage
• Adjustable brightness control
• Power consumption management capability
• Enhanced visibility at both short and long distances
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: RADIANT MAX LED
• Product Type: Fixed Top Mount Scene Light
• Mount Style: 570 Fixed Top Mount
• Rotation: 450°
• Rotation Protection: Built-In Wiring Stop
• Rotation Control: Integrated Friction Mechanism
• Maximum Light Output: 32,000 Lumens
• Beam Pattern: Combination Flood and Spot
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Arm Assembly: Heavy-Duty Swivel Mount
Switch Box Functions
• On/Off Control
• Brightness Control
• Power Consumption Control
• Spot-Only Mode
• Flood-Only Mode
• Combined Flood and Spot Mode
Note: The RADIANT MAX LED Fixed Top Mount provides exceptional 450° scene coverage and powerful high-output illumination, making it an ideal solution for apparatus requiring versatile overhead lighting capable of illuminating both nearby work zones and distant incident areas.
