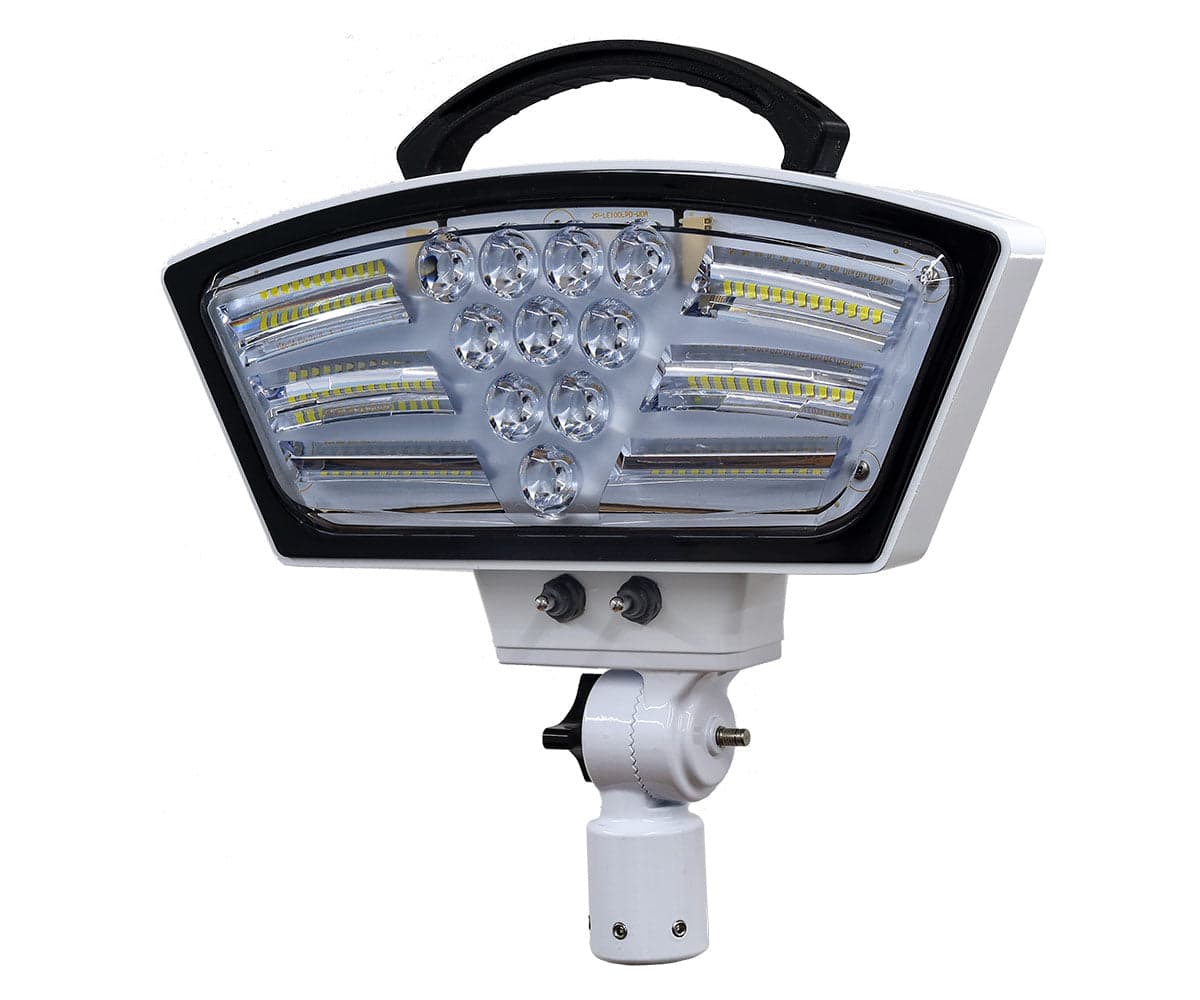

The RADIANT MAX LED TwistLock Telescopic Poles combine Fire Research Corporation's rugged telescoping pole systems with the powerful RADIANT MAX LED lamphead to provide elevated scene lighting for fire apparatus, rescue vehicles, utility trucks, and specialty response units. Designed to position high-output lighting above apparatus obstructions, these telescopic systems allow operators to quickly deploy and direct light where it is needed while maximizing coverage and minimizing shadows.
Built from maintenance-free anodized aluminum, all FRC telescopic poles feature 360° rotation and the exclusive patented TwistLock locking system for secure positioning. Paired with the RADIANT MAX LED lamphead, which delivers up to 32,000 lumens through an advanced flood-and-spot optical system, these telescopic pole systems provide exceptional illumination, durability, and ease of operation in demanding emergency response environments.
Features
• Elevated telescopic pole scene lighting system
• RADIANT MAX LED lamphead produces up to 32,000 lumens
• Advanced flood-and-spot combination beam pattern
• Enhanced close-range and long-distance illumination
• New optical design maximizes usable scene lighting
• Lightweight anodized aluminum pole construction
• Maintenance-free design for extended service life
• All poles rotate 360° for maximum positioning flexibility
• Exclusive TwistLock locking mechanism secures pole extensions
• TwistLock operates in either direction
• Locking system cannot jam or be over-tightened
• No protruding handles to snag gear or straps
• Knurled locking surface provides a secure grip
• No metal-to-metal contact reduces pole wear
• Standard four-foot retractable wiring cord on extension poles
• Grooved outer tube surfaces improve handling and grip
• Adjustable lamphead elevation using pivoting arm and knurled adjustment knob
• Robust arm and swivel assembly
• Compatible with DC and AC lighting systems
• Instant-on full-intensity illumination
Lighting Features
• Produces up to 32,000 lumens of bright white light
• Combination flood and spot beam pattern
• Spot beam provides long-range penetrating illumination
• Flood beam provides area and ground lighting
• Combined flood and spot mode for maximum scene coverage
• Adjustable brightness control
• Power consumption management capability
• Enhanced visibility for work areas and distant objects
Pole Features
• Anodized aluminum construction
• 360° pole rotation
• Exclusive patented Safety TwistLock mechanism
• Four-foot retractable wiring cord on standard extension poles
• Grooved outer pole tubes for improved grip
• Adjustable lamphead elevation control
• Available top-mount, through-roof, and side-mount configurations
• NFPA-compliant Grab Handle on Models 530, 540, and 542
• Grab Handle provides secure operation while wearing gloves
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: RADIANT MAX LED
• Product Type: Telescopic Pole Scene Light System
• Pole Material: Anodized Aluminum
• Pole Rotation: 360°
• Locking Mechanism: Patented TwistLock System
• Wiring: Four-Foot Retractable Cord (Standard Models)
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Maximum Light Output: 32,000 Lumens
• Beam Pattern: Combination Flood and Spot
Switch Box Functions
• On/Off Control
• Brightness Control
• Power Consumption Control
• Spot-Only Mode
• Flood-Only Mode
• Combined Flood and Spot Mode
Available Pole Models
• Model 510 – Top Mount, Pull-Up Telescopic Pole
• Model 510C – Model 510 with Square Flange Option
• Model 510E – Model 510 with Square Flange for 3" Extrusion Mounting
• Model 512 – Through-the-Roof, Push-Up Telescopic Pole
• Model 530 – Side Mount, Push-Up Telescopic Pole
• Model 540 – Side Mount, Pull-Up Telescopic Pole
• Model 542 – Side Mount, Short Pull-Up Telescopic Pole
Note: The RADIANT MAX LED TwistLock Telescopic Pole system combines powerful elevated illumination, 360° positioning capability, and FRC's patented TwistLock technology to provide dependable high-output scene lighting for emergency response operations and specialty vehicle applications.
