The Rope Rescue Rigging Kit is a comprehensive rescue system designed to provide the equipment needed for high-angle and low-angle rope rescue operations. Built around the versatile CMC CLUTCH™ by Harken™, this kit includes mainline and belay systems, mechanical advantage equipment, patient packaging components, anchor-building gear, edge protection, and the highly adaptable AZTEK ProSeries™ LT System. It delivers a complete solution for rescue teams performing technical rope rescues in demanding environments.
Available in configurations for either 11 mm G11™ rope or 13 mm Static-Pro™ rope, the kit is organized into dedicated bags and packs for efficient transport, deployment, and storage. The CLUTCH devices provide exceptional hauling efficiency and lowering control through their ratcheting rotating sheave, Anti-Panic brake, force-limiting overload protection, and integrated becket. Combined with patient packaging equipment and comprehensive rigging hardware, the Rope Rescue Rigging Kit equips teams with the tools necessary to perform safe and efficient rescue operations.
Features
• Complete rope rescue system for high-angle and low-angle rescue operations
• Includes mainline and belay rope systems, patient packaging equipment, and anchor-building hardware
• Built around two CMC CLUTCH™ by Harken™ devices for hauling and lowering operations
• CLUTCH features rotating ratcheting sheave, Anti-Panic brake, overload protection, and integrated becket
• Includes AZTEK ProSeries™ LT System for versatile mechanical advantage applications
• Comprehensive patient packaging system with litter, harnesses, and tie-in systems
• Dedicated edge protection components help reduce rope wear and protect anchor points
• Organized in multiple bags and packs for rapid deployment and transport
• Available in 11 mm and 13 mm rope configurations
• Suitable for technical rescue, fire rescue, industrial rescue, and wilderness rescue operations
Kit Contents
Bags & Storage
• Shasta Gear Bag with Shoulder Strap, Red
• Truck Cache Case, Red
• Litter Pack
• Rope Bag #2, Orange
• Rope Bag #2, Red
Technical Gear
• AZTEK ProSeries™ LT System
• ProTech Auto-Lock Carabiners, Red (2)
• ProSeries Locking Carabiners (9)
• 1.5" ProSwivel PMP Stainless Steel Pulleys (3)
• 1.5" ProSwivel Double Pulley (1)
• 1" Tubular Webbing, Red, 20 ft (2)
• 1" Tubular Webbing, Yellow, 12 ft (2)
• FastLink Anchor Straps, Medium (2)
• FastLink Pick-Off Strap (1)
• 8 mm Sewn Loop Prusiks, Red, 18 in (5)
• Rope Rescue Manual
Patient Packaging
• ProSeries Litter Harness
• One-Piece Patient Tie-In System
• Pelvic Harness Tie-In System
• Lifesaver Victim Harness
• Adjustable Litter Straps (4)
• Stainless Steel Rescue Litter
Edge Protection
• Medium Anchor Strap Sleeves (2)
• XL Edge Pads (2)
• Ultra Pro 4 Edge Protector (1)

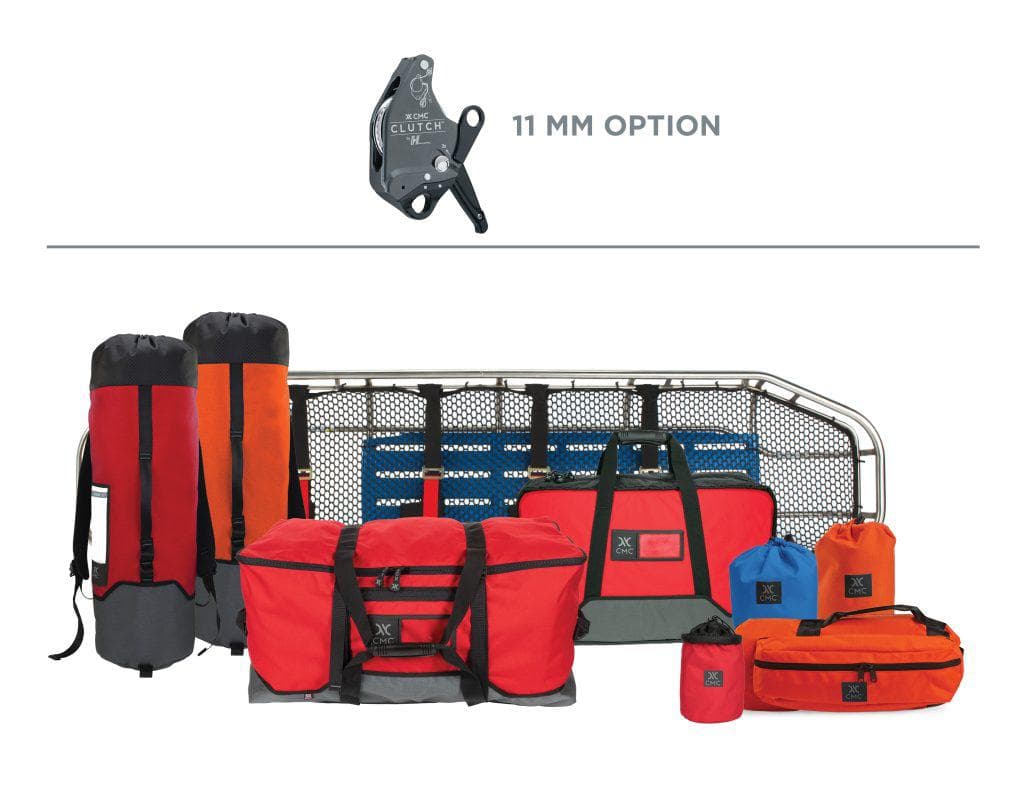

11 mm Kit Includes
• 11 mm CLUTCH™ Devices, Gray (2)
• CMC G11™ Rope, Blue/White, 200 ft (1)
• CMC G11™ Rope, Red/White, 200 ft (1)

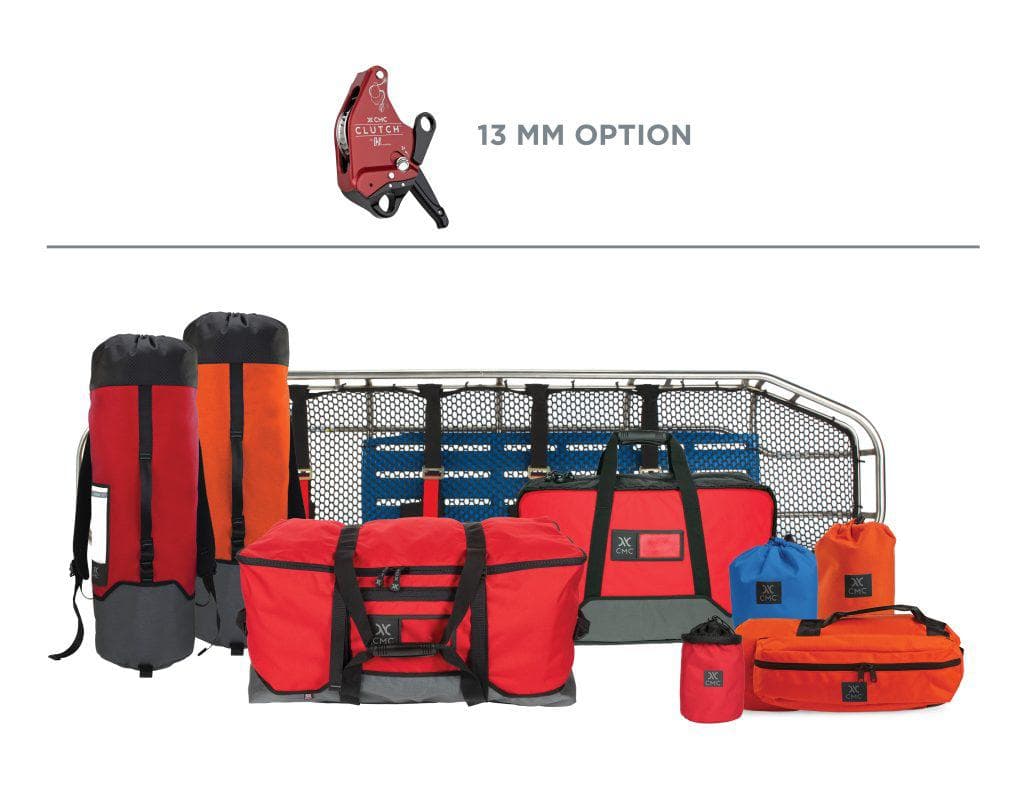

13 mm Kit Includes
• 13 mm CLUTCH™ Devices, Red (2)
• Static-Pro™ Rope, Orange, 200 ft (1)
• Static-Pro™ Rope, Red, 200 ft (1)
Specifications
• Manufacturer: CMC
• Product Type: Complete Rope Rescue Rigging Kit
• Available Variants: 11 mm CLUTCH Kit, 13 mm CLUTCH Kit
• Item Number (11 mm): 501133
• Item Number (13 mm): 501134
• Primary Descender/Belay Device: CMC CLUTCH™ by Harken™
• Included Mechanical Advantage System: AZTEK ProSeries™ LT
• Rescue Litter Included: Yes
• Patient Packaging System Included: Yes
• Edge Protection Included: Yes
• Rope Included: Yes
• Rope Length: Two 200 ft ropes per kit
• Intended Applications: High-Angle Rescue, Low-Angle Rescue, Technical Rope Rescue, Industrial Rescue, Fire Rescue, Wilderness Rescue
CMC recommends pairing this kit with the Technical Rope Rescuer Personal Kit to fully equip individual rescue team members.
