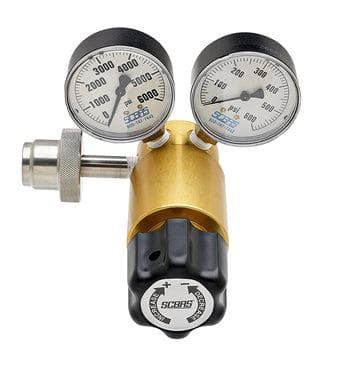

The SCBAS Low Pressure Regulator is designed to convert high-pressure breathing air into a controlled low-pressure air supply for a variety of applications, including supplied air systems, air chisels, air bag systems, and other pneumatic equipment. Engineered for dependable performance, this regulator provides precise pressure reduction while maintaining safe, reliable airflow in demanding fire service and industrial environments.
Featuring a 0–6000 PSI inlet pressure range and an adjustable 0–400 PSI outlet pressure, the regulator is equipped with a CGA-347 hand-tight nut and nipple inlet and a 1/4-inch female NPT outlet for easy connection to compatible systems. Integrated 6000 PSI inlet and 600 PSI outlet gauges allow operators to monitor system and regulated pressures at a glance. The regulator is compatible with both 2216 PSI and 4500 PSI SCBA cylinders.
Features
• High-pressure to low-pressure air regulator
• Designed for supplied air systems, air chisels, air bag systems, and pneumatic equipment
• 0–6000 PSI inlet pressure range
• Adjustable 0–400 PSI outlet pressure
• CGA-347 hand-tight nut and nipple inlet
• 1/4-inch female NPT outlet connection
• 6000 PSI inlet pressure gauge
• 600 PSI regulated outlet pressure gauge
• Compatible with 2216 PSI and 4500 PSI SCBA cylinders
• Durable construction for long service life
Specifications
• Manufacturer: SCBAS
• Product Type: Low Pressure Regulator
• Inlet Pressure: 0–6000 PSI
• Outlet Pressure: 0–400 PSI
• Inlet Connection: CGA-347 hand-tight nut and nipple
• Outlet Connection: 1/4-inch female NPT
• Inlet Gauge: 6000 PSI
• Outlet Gauge: 600 PSI
• Cylinder Compatibility: 2216 PSI and 4500 PSI SCBA cylinders
• Application: Supplied air systems, air chisels, air bag systems, pneumatic equipment, and breathing air systems
