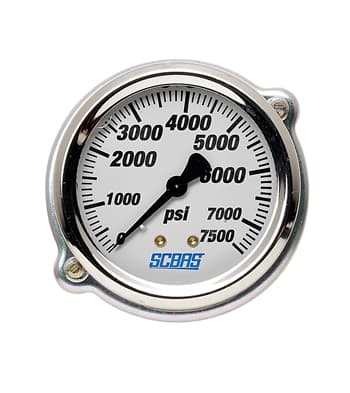

The SCBAS 94-001SS Gauge is designed to provide accurate high-pressure monitoring for breathing air systems, SCBA fill stations, and cascade systems. Featuring a 0–7500 PSI pressure range, this 2-1/2-inch panel mount gauge delivers clear, easy-to-read pressure measurements for dependable operation in demanding fire service and industrial applications.
Constructed with a liquid-filled design, the gauge minimizes needle vibration for enhanced accuracy and long-term reliability. A 1/4-inch male NPT connection allows for easy installation into compatible breathing air systems, making it an ideal choice for monitoring high-pressure air systems.
Features
• Pressure gauge with 0–7500 PSI range
• 2-1/2-inch dial for easy readability
• Panel mount design
• Liquid-filled gauge minimizes vibration and improves accuracy
• 1/4-inch male NPT connection
• Ideal for breathing air systems, SCBA fill stations, and cascade systems
• Reliable performance for fire service and industrial use
Specifications
• Manufacturer: SCBAS
• Product Type: Pressure Gauge
• Model: 94-001SS
• Pressure Range: 0–7500 PSI
• Dial Size: 2-1/2 inches
• Mounting Style: Panel mount
• Gauge Type: Liquid-filled
• Connection: 1/4-inch male NPT
• Application: Breathing air systems, SCBA fill stations, cascade systems, and high-pressure air systems
