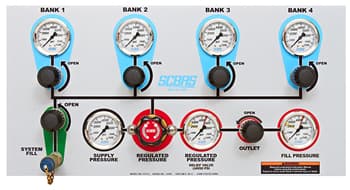

The SCBAS Air Control Panel provides a safe, efficient, and organized solution for managing high-pressure breathing air cascade systems. Designed for fire departments, SCBA fill stations, industrial facilities, and mobile breathing air systems, these control panels allow operators to safely control air flow, regulate pressure, and refill SCBA cylinders from a centralized location.
Available in 1 Bank, 2 Bank, 3 Bank, 4 Bank, 5 Bank, 6 Bank, and 8 Bank configurations, each panel features an easy-to-read NFPA 1901 color-coded overlay with an integrated flow diagram mounted on a durable ¼-inch aluminum panel. Individual liquid-filled gauges and soft-seat control valves provide precise monitoring and control of each bank, while the push-to-set pressure regulator accommodates inlet and outlet pressures up to 6000 PSI.
Designed for long-term reliability and simplified maintenance, all control valves can be rebuilt from the front of the panel without disturbing the plumbing. Every valve, fitting, and tube is rated for a minimum working pressure of 6000 PSI, and each panel is manufactured to meet or exceed NFPA 1901 standards for dependable performance in demanding emergency service environments.
Features
• High-pressure breathing air control panel for SCBA cascade systems
• Available in 1, 2, 3, 4, 5, 6, and 8-bank configurations
• NFPA 1901 color-coded panel overlay with integrated flow diagram
• Durable ¼-inch thick aluminum control panel
• 2½-inch liquid-filled gauge for each bank (0–7500 PSI)
• Soft-seat control valve for each bank for smooth, reliable operation
• Push-to-set pressure reducing regulator with 0–6000 PSI inlet and outlet pressure range
• 2½-inch master inlet gauge for regulator monitoring
• 2½-inch regulated pressure gauge piped at 2216 PSI, 4500 PSI, and 5500 PSI
• Quick-disconnect refill connection with shutoff valve
• CGA-347 male outlet with valve
• All valves, fittings, and tubing rated for a minimum 6000 PSI working pressure
• Front-serviceable control valves simplify maintenance without disturbing plumbing
• Preset relief valve on regulator outlet for added safety
• Manufactured to meet or exceed NFPA 1901 standards
Specifications
• Manufacturer: SCBAS
• Product Type: Air Control Panel
• Available Configurations: 1 Bank, 2 Bank, 3 Bank, 4 Bank, 5 Bank, 6 Bank, and 8 Bank
• Panel Material: ¼-inch aluminum
• Panel Overlay: NFPA 1901 color-coded with flow diagram
• Bank Gauges: 2½-inch liquid-filled, 0–7500 PSI
• Master Inlet Gauge: 2½-inch liquid-filled
• Regulated Pressure Gauge: 2½-inch liquid-filled, piped at 2216 PSI, 4500 PSI, and 5500 PSI
• Pressure Regulator: Push-to-set, 0–6000 PSI inlet / 0–6000 PSI outlet
• Refill Connection: Quick-disconnect with valve
• Outlet Connection: CGA-347 male with valve
• Working Pressure Rating: 6000 PSI minimum for all valves, fittings, and tubing
• Maintenance: Front-serviceable control valves
• Certification: Meets or exceeds NFPA 1901 standards
