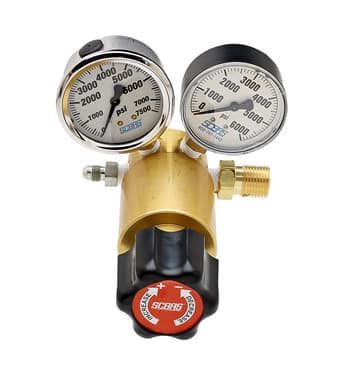

The SCBAS High Pressure CGA-702 Regulator is designed to provide precise pressure regulation for high-pressure breathing air systems, cascade systems, and SCBA filling applications. Engineered for dependable performance in demanding fire service and industrial environments, this regulator offers a full 0–6000 PSI inlet and outlet pressure range for maximum versatility.
The regulator features a CGA-702 connection, a #4 JIC male inlet, and a CGA-347 male threaded outlet for compatibility with a wide variety of breathing air system components. Integrated inlet and outlet pressure gauges provide clear, accurate pressure monitoring, allowing operators to safely regulate and monitor system performance during cylinder filling operations.
Built for use in high-pressure breathing air applications, the SCBAS High Pressure CGA-702 Regulator delivers the reliability and durability required for fire departments, SCBA fill stations, mobile cascade systems, and industrial breathing air installations.
Features
• High-pressure regulator for breathing air systems and cascade systems
• CGA-702 regulator connection
• 0–6000 PSI inlet pressure range
• 0–6000 PSI outlet pressure range
• #4 JIC male inlet connection
• CGA-347 male threaded outlet connection
• 0–7500 PSI inlet pressure gauge
• 0–6000 PSI outlet pressure gauge
• Provides accurate pressure regulation for SCBA filling applications
• Ideal for fire departments, breathing air systems, and cascade systems
Specifications
• Manufacturer: SCBAS
• Product Type: High Pressure Regulator
• Regulator Connection: CGA-702
• Inlet Pressure Range: 0–6000 PSI
• Outlet Pressure Range: 0–6000 PSI
• Inlet Connection: #4 JIC male
• Outlet Connection: CGA-347 male thread
• Inlet Gauge: 0–7500 PSI
• Outlet Gauge: 0–6000 PSI
• Application: SCBA fill stations, breathing air systems, and high-pressure cascade systems
