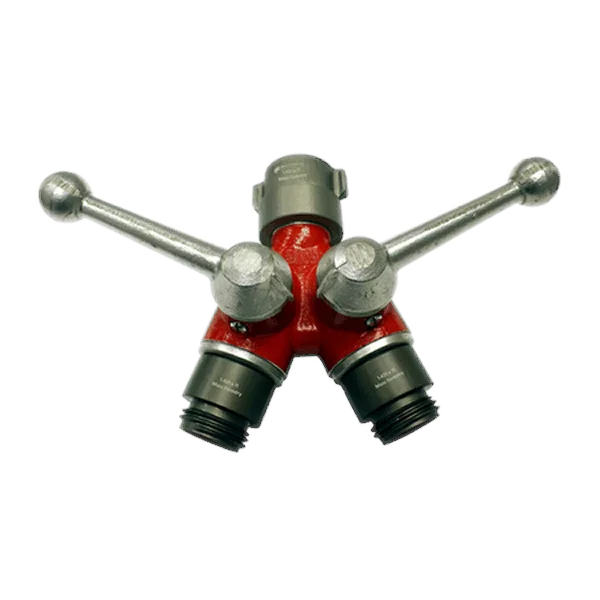

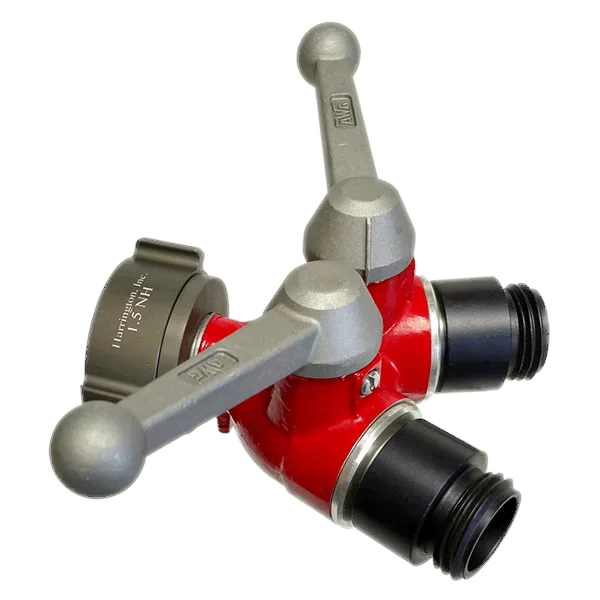

The Small 2-Way Ball Valves are compact forestry-style wyes designed to divide a single water supply into two independently controlled hose lines. Ideal for wildland firefighting, forestry operations, brush trucks, and light-duty water distribution applications, these lightweight valves provide reliable flow control in a compact package.
Constructed from corrosion-resistant aluminum, each valve features a female swivel inlet and dual male outlets for flexible hose configurations. The rugged ball valve design allows smooth operation and dependable shutoff performance, making these valves well-suited for demanding field conditions.
Features
• Compact forestry-style 2-way ball valve design
• Splits one supply line into two independently controlled outlets
• Lightweight aluminum construction
• Corrosion-resistant finish for long service life
• Female swivel inlet for quick and secure hose connections
• Smooth-operating ball valves for reliable flow control
• Ideal for forestry, wildland, brush truck, and water distribution applications
• Available with NH and NPSH outlet configurations
Specifications
• Manufacturer: Harrington
• Product Type: Small 2-Way Ball Valve / Forestry Wye
• Inlet Connection: NH Female Swivel
• Outlet Connections: (2) Male Outlets
• Construction: Aluminum
• Length: 6.125"
• Width: 9.25"
• Height: 4.25"
• Weight: 2 lbs.
Available Models
• H201F-10NHFS-10NHM — 1" NH Female Swivel x (2) 1" NH Male Outlets
• H201F-10NHFS-10NPSHM — 1" NH Female Swivel x (2) 1" NPSH Male Outlets
• H201F-15NHFS-10NHM — 1.5" NH Female Swivel x (2) 1" NH Male Outlets
• H201F-15NHFS-15NHM — 1.5" NH Female Swivel x (2) 1.5" NH Male Outlets
