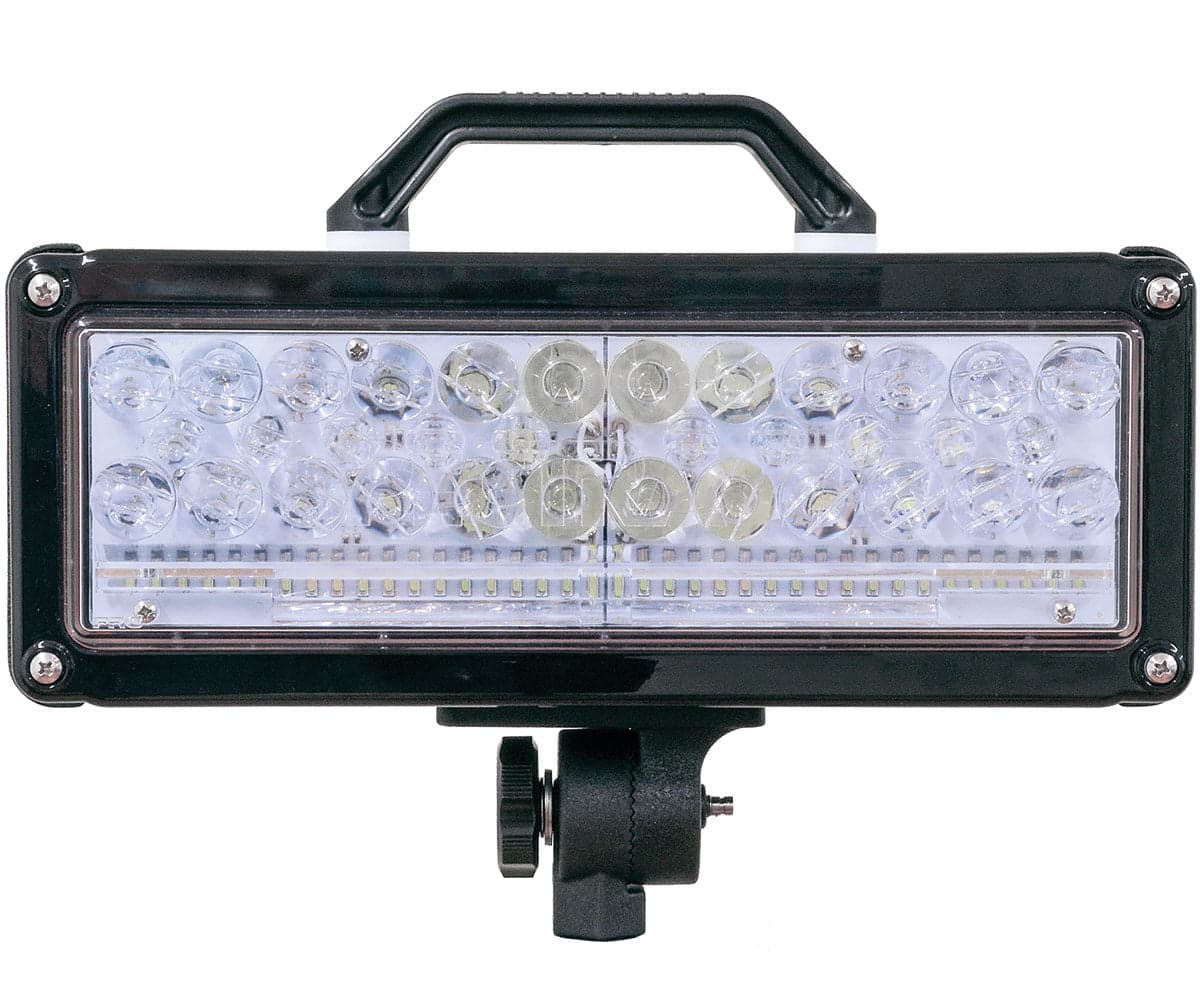

The Spectra HR LED Fixed Top Mount combines Fire Research Corporation's advanced Spectra HR lighting technology with the rugged 570 Fixed Top Mount pedestal system to provide exceptional overhead scene illumination for fire apparatus, rescue vehicles, and specialty response units. Designed for permanent vehicle installation, this system delivers broad scene coverage while allowing operators to precisely position the lamphead for maximum effectiveness during emergency operations.
The 570 Fixed Top Mount provides a full 450° of rotation, allowing complete 360° coverage plus an additional quarter turn to eliminate blind spots around the apparatus. A built-in rotation stop protects internal wiring from binding, while an integrated friction mechanism prevents unwanted movement during vehicle travel. The Spectra HR lamphead utilizes a unique dual-zone optical system that simultaneously illuminates building faces and ground-level work areas, producing 28,000 lumens of bright white light without requiring manual lamp adjustment.
Features
• Fixed top-mounted scene light system
• 570 Fixed Top Mount pedestal design
• Lamphead rotates up to 450°
• Full-circle coverage plus an additional quarter turn
• Built-in wiring stop prevents internal cable binding
• Integrated friction mechanism prevents unwanted rotation during travel
• Produces 28,000 lumens of bright white light
• Dual-zone lighting system illuminates both vertical and ground-level work areas
• No lamp adjustment required for optimal scene coverage
• Upper lens group projects wide beams at multiple angles
• Lower lens group illuminates the ground area in front of the apparatus
• 72 ultra-bright white LEDs total
• 34 LEDs dedicated to upper lighting zone
• 38 LEDs dedicated to lower lighting zone
• Adjustable pivoting mounting arm
• Reinforced knurled locking knob for secure positioning
• Sure-Grip molded handle remains cool to the touch
• Ideal for fire apparatus, rescue vehicles, and specialty response units
• Available with or without integrated switching
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Spectra HR LED
• Product Type: Fixed Top Mount Scene Light
• Mount Style: 570 Fixed Top Mount
• Rotation: 450°
• Rotation Protection: Built-In Wiring Stop
• Rotation Control: Integrated Friction Mechanism
• Light Output: 28,000 Lumens
• LED Configuration:
• 34 LEDs – Upper Lens Group
• 38 LEDs – Lower Lens Group
• Total LEDs: 72
• Lamphead Dimensions:
• Width: 14" (355 mm)
• Depth: 3.75" (95 mm)
• Height: 5.375" (137 mm)
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Switch Options:
• With Switch
• Without Switch
Lighting Design
• Upper Group:
• Projects wide beams at multiple angles
• Illuminates building faces, elevated work areas, rooftops, and upper-story operations
• Lower Group:
• Illuminates the ground area directly in front of the apparatus
• Improves visibility around personnel, equipment, and hazards
Note: The Spectra HR LED Fixed Top Mount combines a versatile 450° rotating pedestal mount with FRC's advanced dual-zone optical technology, delivering simultaneous building-face and ground-level illumination while eliminating blind spots around the apparatus and improving overall scene visibility.
