Description

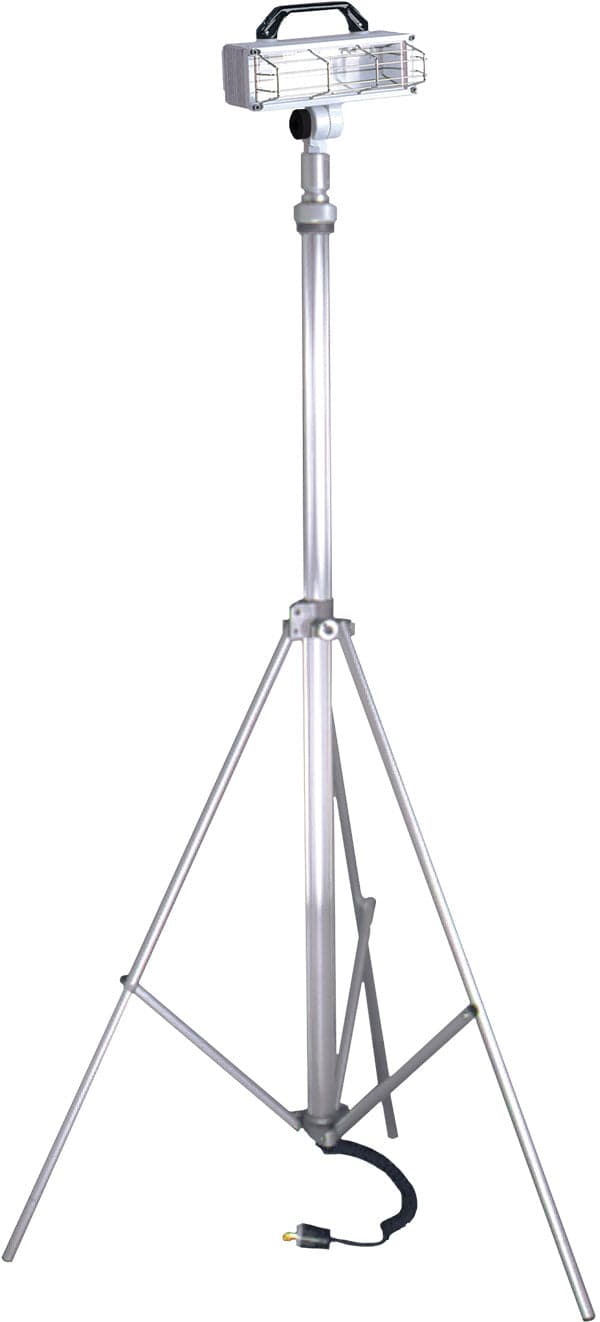

The Spectra HR LED TwistLock Telescopic Tripods combine Fire Research Corporation's proven portable tripod system with the powerful Spectra HR LED lamphead to provide elevated scene lighting for fire, rescue, EMS, and emergency response operations. Designed for rapid deployment and maximum versatility, these tripod systems allow responders to position high-output lighting above apparatus and ground-level obstructions, improving visibility across large incident scenes.
The Spectra HR lamphead utilizes a unique dual-zone optical system that simultaneously illuminates both the vertical face of a structure and the ground area in front of the apparatus. Producing 28,000 lumens of bright white light, the lamphead requires no adjustment to achieve comprehensive scene coverage. Combined with FRC's exclusive TwistLock tripod technology, lightweight anodized aluminum construction, and extension heights up to 12 feet, the system provides exceptional illumination and ease of operation in demanding emergency environments.
Features
• Portable telescopic tripod scene lighting system
• Produces 28,000 lumens of bright white light
• Dual-zone lighting system illuminates both vertical and ground-level work areas
• No lamp adjustment required for optimal scene coverage
• Exclusive TwistLock locking mechanism operates in either direction
• Easy operation while wearing firefighting gloves
• Air-cushioned pole release prevents sudden lowering
• Helps reduce pinched fingers and equipment damage
• Simultaneous three-leg deployment for rapid setup
• Lightweight anodized aluminum construction
• Standard tripod weighs approximately 16 lbs.
• Cammed tightening knobs resist loosening from vibration
• Anti-chatter rubber leg covers provide quiet transport
• Compact folded footprint for apparatus storage
• Truck-mountable for on-vehicle and portable use
• Standard wire guard protection included
• Extends up to 12 feet in height
• Adjustable pivoting mounting arm
• Reinforced knurled locking knob for secure positioning
• Sure-Grip molded handle remains cool to the touch
• Available with or without integrated switching
Lighting Features
• 28,000 lumens of bright white illumination
• Upper lens group projects wide beams at multiple angles
• Lower lens group illuminates the ground area below and ahead of the light
• Simultaneous vertical and ground-level scene illumination
• 72 ultra-bright white LEDs
• No manual aiming required for comprehensive scene coverage
Tripod Features
• Anodized aluminum pole construction
• Exclusive patented TwistLock locking system
• Air-cushioned pole lowering system
• Simultaneous leg deployment design
• Anti-chatter rubber leg covers
• Cammed tightening knobs
• Standard wire guard included
• Truck-mountable design
• Maximum extended height of up to 12 feet
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Spectra HR LED
• Product Type: Telescopic Tripod Scene Light System
• Pole Material: Anodized Aluminum
• Locking Mechanism: Patented TwistLock System
• Maximum Extension Height: Up to 12 ft.
• Standard Tripod Weight: Approximately 16 lbs.
• Light Output: 28,000 Lumens
• LED Configuration:
• 34 LEDs – Upper Lens Group
• 38 LEDs – Lower Lens Group
• Total LEDs: 72
• Lamphead Dimensions:
• Width: 14" (355 mm)
• Depth: 3.75" (95 mm)
• Height: 5.375" (137 mm)
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Switch Options:
• With Switch
• Without Switch
Available Models
• Model 600 (Full Size)
• Standard tripod configuration
• Supplied with NEMA L5-15 three-prong TwistLock plug
• Overall height with lamphead retracted: 72"
• Model 656 (Medium)
• Compact tripod design
• Approximately 14" shorter overall length than Model 600
• Model 642 (Small)
• Most compact tripod design
• Approximately 14" shorter overall length than Model 600
Note: The Spectra HR LED TwistLock Telescopic Tripods combine elevated lighting capability, rapid deployment, and FRC's unique dual-zone optical technology to provide simultaneous building-face and ground-level illumination from a portable system that can be quickly positioned wherever the incident demands.
