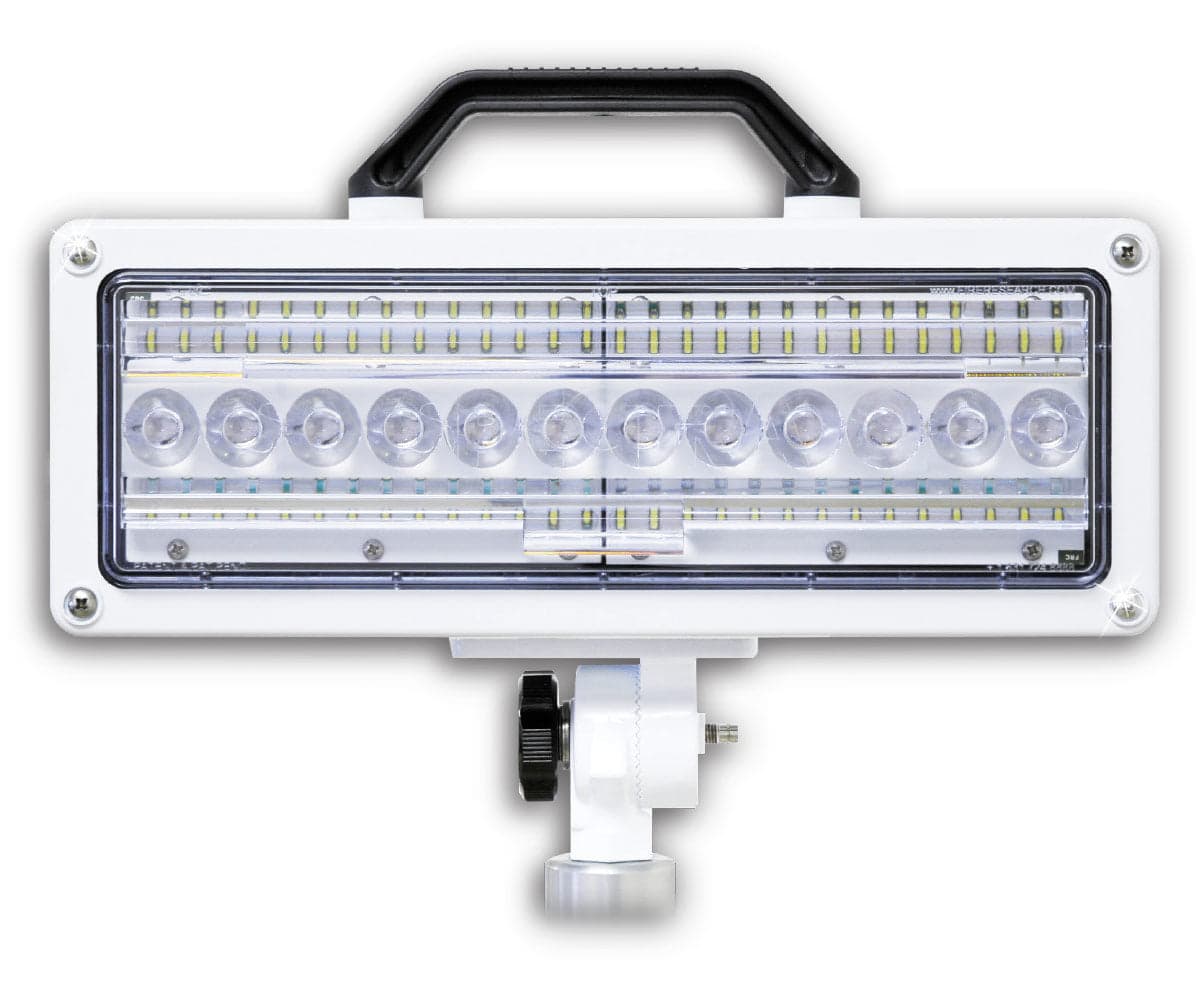

The Spectra MAX LED Fixed Side Mount combines Fire Research Corporation's high-output Spectra MAX LED lamphead with the rugged 580 pedestal mounting system to provide exceptional side-scene illumination for fire apparatus, rescue vehicles, utility fleets, and specialty response units. Designed for permanent vehicle installation, this system allows operators to direct powerful lighting exactly where it is needed while maintaining secure positioning during vehicle operation.
The 580 fixed pedestal mount provides 450° of lamphead rotation and incorporates a self-adjusting friction brake to prevent unwanted movement. The Spectra MAX LED lamphead delivers up to 28,000 lumens of ultra-bright white light through a combined flood and spot beam pattern, providing both broad work area illumination and long-distance visibility. Its slim 1.75-inch profile keeps the lamphead close to the vehicle while simplifying installation and maintaining a clean apparatus appearance.
Features
• Fixed side-mounted scene light system
• 580 pedestal mount with side-mount bracket
• Lamphead rotates up to 450°
• Self-adjusting friction brake prevents unwanted rotation
• Produces up to 28,000 lumens of ultra-bright light
• Combined flood and spot beam pattern
• Provides both close-range and long-distance illumination
• Slim body design maintains a low-profile installation
• Surface-mount lamphead for simplified installation
• Improves scene visibility and operational safety
• Suitable for fire apparatus, rescue vehicles, and specialty response units
• Durable construction for demanding emergency service applications
Lighting Features
• Combined flood and spot light pattern
• Broad work area illumination
• Enhanced long-distance visibility
• Bright white LED output for improved scene safety
• Uniform light distribution across the scene
• Optimized optics maximize usable illumination
• Instant-on operation with no warm-up time required
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Spectra MAX LED
• Product Type: Fixed Side Mount Scene Light
• Mount Style: 580 Fixed Pedestal with Side-Mount Bracket
• Rotation: 450°
• Rotation Control: Self-Adjusting Friction Brake
• Light Output: 28,000 Lumens
• Beam Pattern: Combined Flood and Spot
• Lamphead Depth: 1.75" (44 mm)
• Installation Type: Surface Mount
• Available Power Configurations:
• 120 VAC
• 240 VAC
• 12/24 VDC
• Mounting Bracket Size:
• Spectra MAX LED: 2.75"
Mounting Information
• Side-mounted pedestal design
• Round mounting base attached to side-mount bracket
• Secure positioning through friction brake mechanism
• Suitable for apparatus side-scene lighting applications
Note: The Spectra MAX LED Fixed Side Mount combines a rugged 450° rotating pedestal mount with up to 28,000 lumens of powerful flood and spot illumination, delivering exceptional scene visibility while maintaining a compact, low-profile installation on emergency response vehicles.
