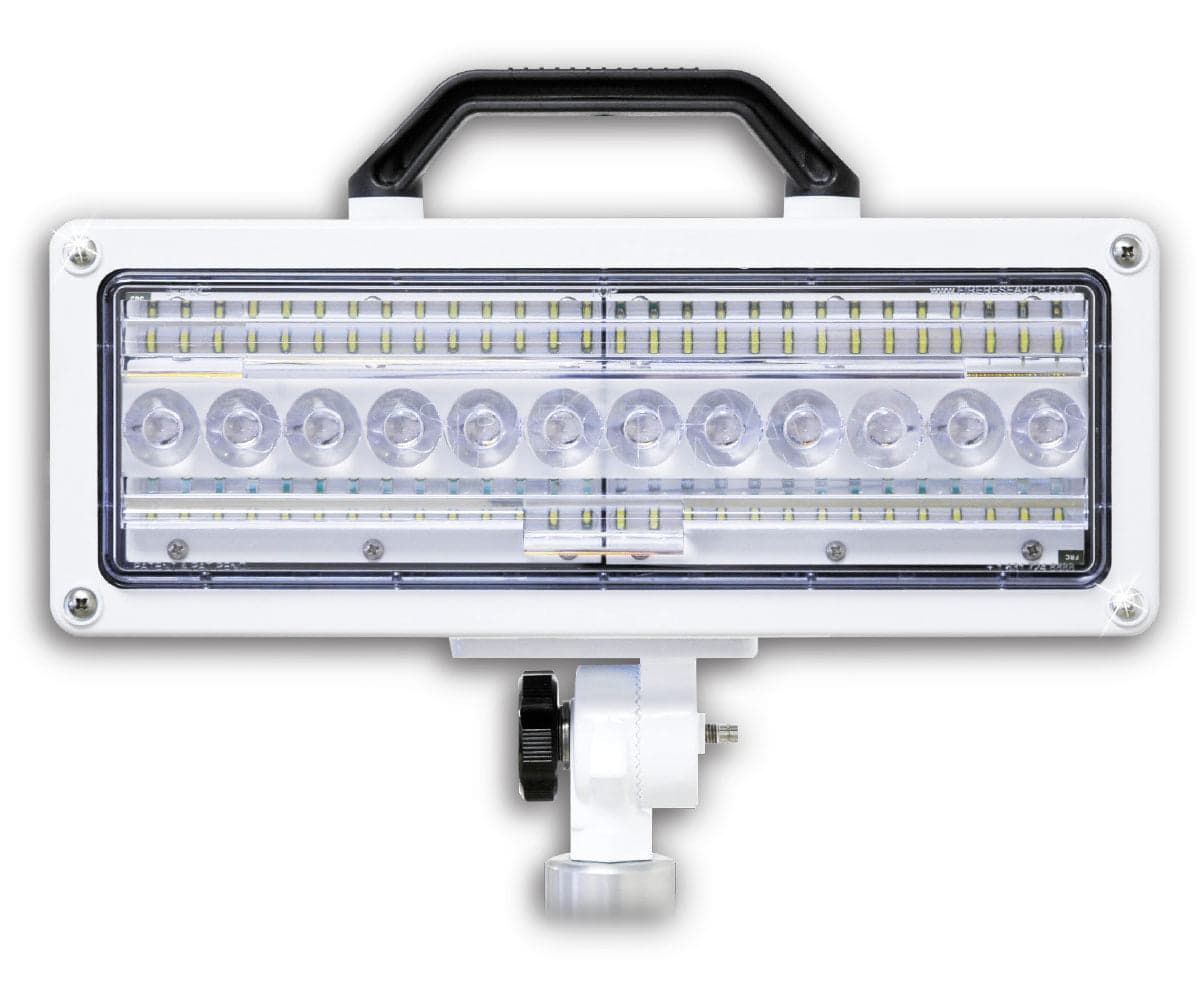

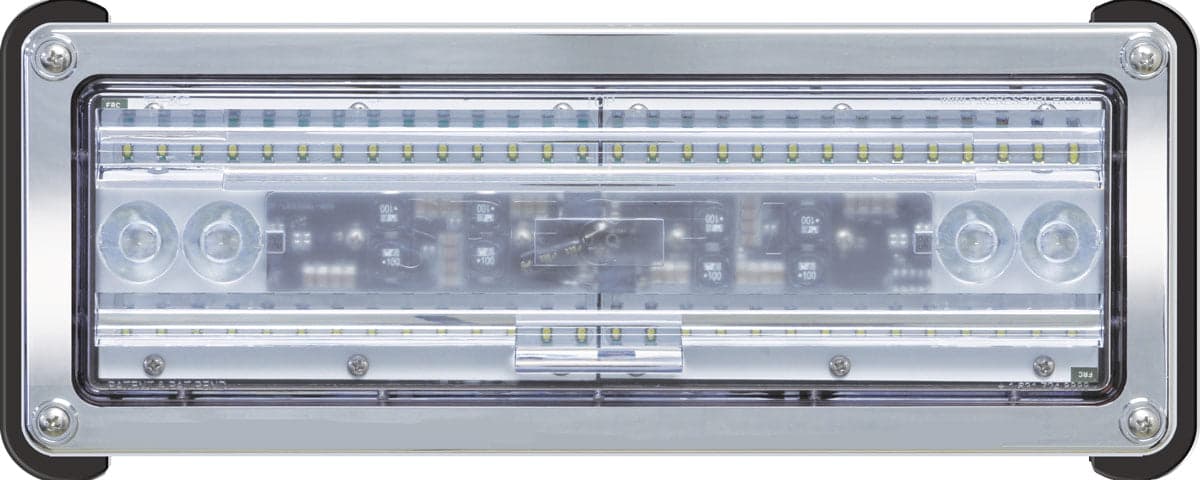

The Spectra MAX LED Lampheads are engineered to deliver exceptional scene and work area illumination for fire apparatus, rescue vehicles, utility fleets, and specialty response units. Designed to maximize visibility while maintaining a compact profile, these high-output lampheads provide powerful flood and spot lighting from a single fixture, helping responders operate more safely and effectively in low-light environments.
Producing up to 28,000 lumens of ultra-bright white light, the Spectra MAX utilizes a unique LED arrangement that combines broad flood illumination with long-range spot lighting. Two rows of high-intensity flood LEDs illuminate the work area surrounding the apparatus, while a center row of focused spot LEDs provides enhanced visibility at greater distances. The integrated Sure Grip handle remains cool to the touch during operation, allowing for safe adjustment and positioning when needed.
Features
• High-performance LED scene lighting lamphead
• Produces up to 28,000 lumens of ultra-bright white light
• Combined flood and spot beam pattern
• Sure Grip handle remains cool to the touch during operation
• Slim body design keeps lamphead close to the vehicle
• Surface-mount design simplifies installation
• Improves overall scene visibility and operational safety
• Suitable for fire, rescue, EMS, utility, and industrial applications
• Durable construction for demanding emergency service environments
Lighting Features
• Two rows of intense flood LEDs provide broad work area illumination
• Center row of focused spot LEDs enhances long-distance visibility
• Combined flood and spot light pattern maximizes scene coverage
• Bright white LED output improves visibility and safety
• Uniform light distribution across work areas and distant targets
• Optimized optics direct light where it is needed most
• Instant-on operation with no warm-up time required
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Spectra MAX LED
• Product Type: LED Scene Light Lamphead
• Light Output: 28,000 Lumens
• Beam Pattern: Combined Flood and Spot
• Lamphead Depth: 1.75" (44 mm)
• Handle Type: Sure Grip Cool-Touch Handle
• Installation Type: Surface Mount
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
Applications
• Fire Apparatus Scene Lighting
• Rescue Vehicle Lighting
• EMS Response Vehicles
• Utility Service Vehicles
• Industrial Facilities
• Incident Command Areas
• Large-Area Emergency Scene Illumination
Note: The Spectra MAX LED Lamphead combines up to 28,000 lumens of powerful flood and spot illumination in a slim, low-profile package, providing exceptional visibility for both immediate work areas and distant portions of the emergency scene.
