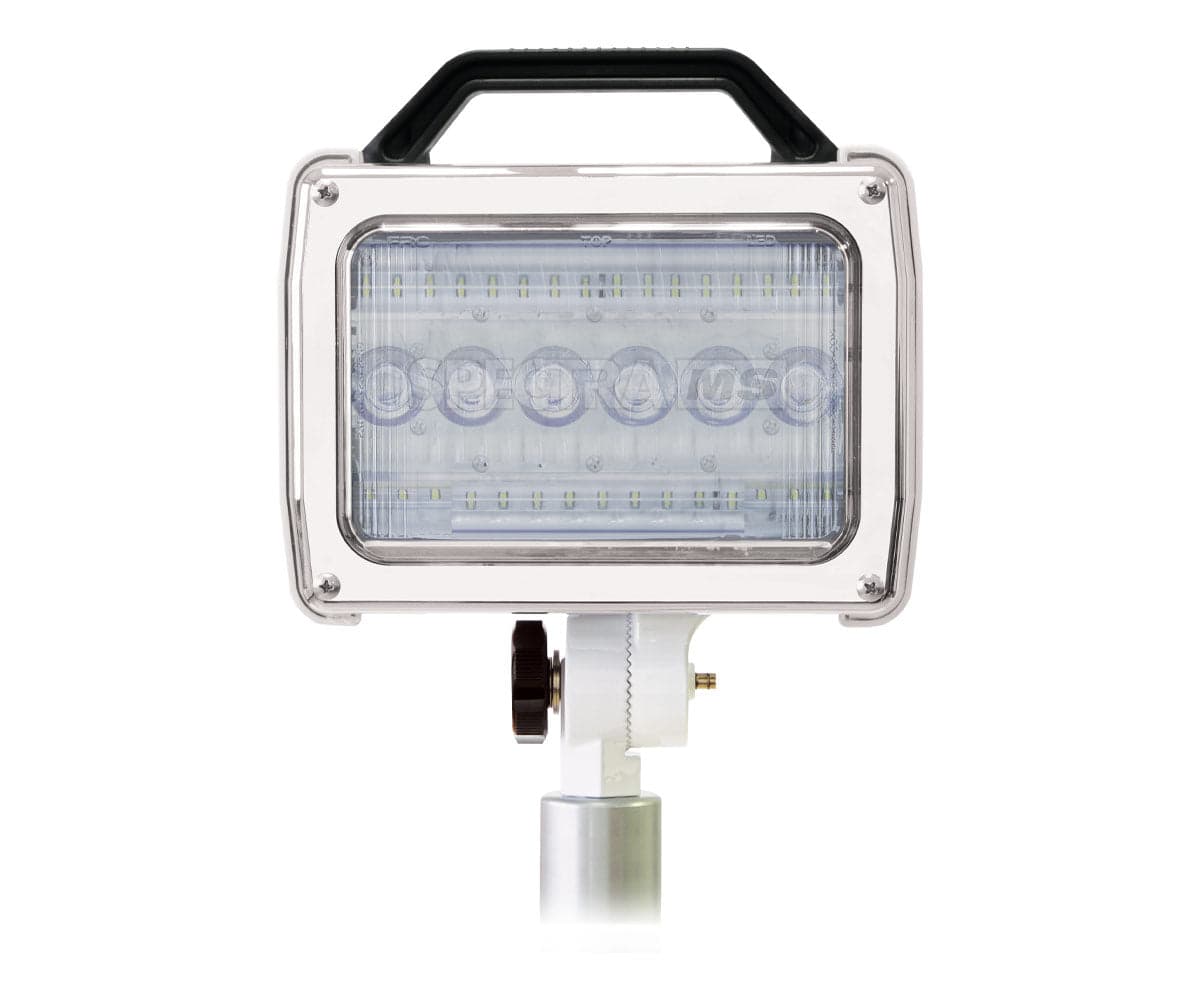

The Spectra MS LED Fixed Side Mount combines efficient LED scene lighting with the rugged 580 pedestal mounting system, providing dependable side-scene illumination for fire apparatus, rescue vehicles, utility fleets, and specialty response units. Designed for permanent vehicle installation, this configuration allows operators to direct light exactly where it is needed while maintaining secure positioning during vehicle operation.
The 580 fixed pedestal mount provides 450° of lamphead rotation and features a self-adjusting friction brake that prevents unwanted movement. Paired with the compact Spectra MS LED lamphead, the system delivers 14,000 lumens of bright white light through a combination of spot and flood LEDs that create a uniform illumination pattern. Its compact size, energy-efficient operation, and durable construction make it an economical and effective solution for apparatus scene lighting upgrades.
Features
• Fixed side-mounted scene light system
• 580 pedestal mount with side-mount bracket
• Lamphead rotates up to 450°
• Self-adjusting friction brake prevents unwanted rotation
• Produces 14,000 lumens of bright white light
• Combination spot and flood LED configuration
• Uniform scene illumination pattern
• Compact and powerful lamphead design
• Energy-efficient LED technology
• Provides more usable light with lower power consumption
• Economical solution for apparatus lighting upgrades
• Suitable for fire apparatus, rescue vehicles, and specialty response units
• Available in multiple voltage configurations
• Compatible with pole, brow, and fixed mount systems
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Spectra MS LED
• Product Type: Fixed Side Mount Scene Light
• Mount Style: 580 Fixed Pedestal with Side-Mount Bracket
• Rotation: 450°
• Rotation Control: Self-Adjusting Friction Brake
• Light Output: 14,000 Lumens
• Beam Pattern: Combined Spot and Flood
• Lamphead Dimensions:
• Width: 8.75" (222 mm)
• Depth: 3.25" (83 mm)
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Mounting Bracket Size:
• Spectra MS: 2.75"
Lighting Features
• Combination spot and flood LED configuration
• Uniform work area illumination
• Bright white LED output
• Compact, space-saving design
• Efficient power consumption
• Immediate full-brightness operation
Mounting Information
• Side-mounted pedestal design
• Round mounting base attached to side-mount bracket
• Secure positioning through friction brake mechanism
• Suitable for apparatus side-scene lighting applications
Note: The Spectra MS LED Fixed Side Mount combines a rugged 450° rotating pedestal mount with efficient LED technology to provide 14,000 lumens of bright, uniform scene illumination while maintaining low power consumption and a compact installation footprint.
