The Sunstrip LED Strip Lighting system provides compact, high-output illumination for apparatus compartments, control panels, underbody lighting, walkways, stairways, and other vehicle lighting applications. Designed specifically for emergency vehicles and demanding mobile environments, Sunstrip LED lights deliver bright, reliable illumination while withstanding vibration, moisture, and harsh operating conditions.

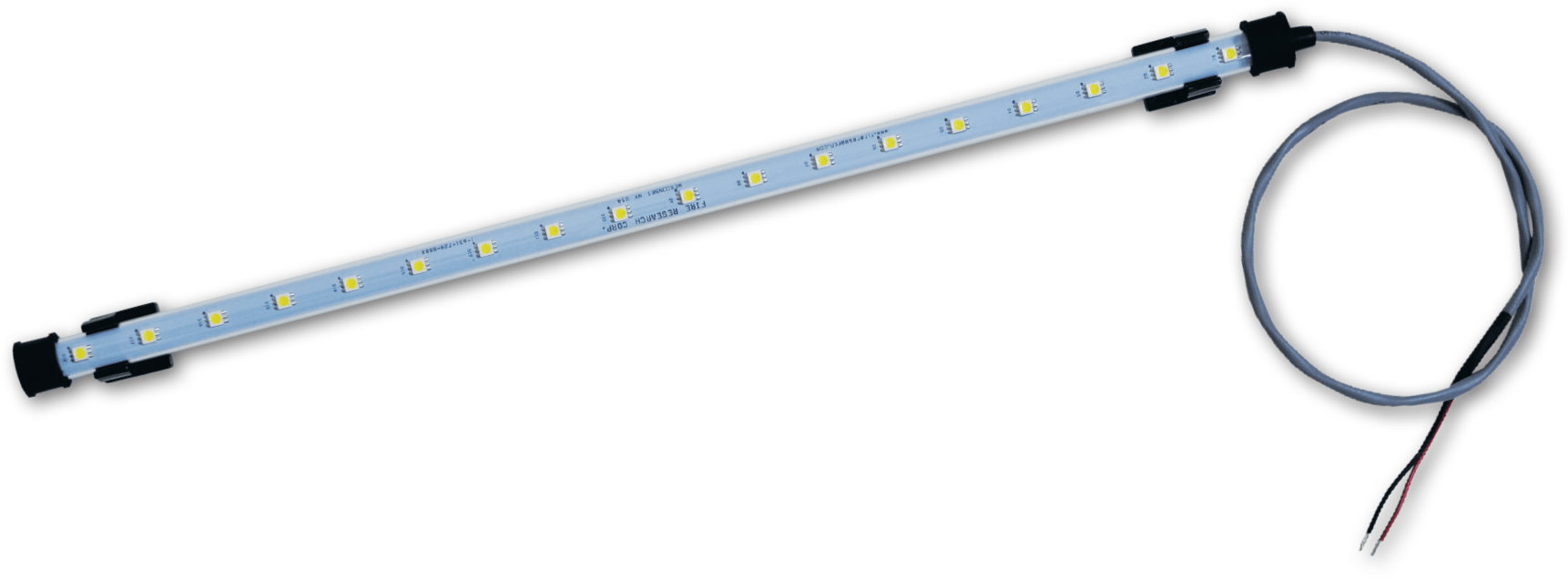

Constructed with ultra-bright white LEDs housed inside a durable 5/8-inch Lexan tube, Sunstrip lighting is waterproof, submersible, and built for long-term performance. Available in lengths ranging from 9 to 63 inches, each strip provides efficient illumination with low power consumption and a service life rated at 50,000 hours, making it an ideal solution for both new apparatus builds and retrofit installations.
Features
• Ultra-bright white LED strip lighting system
• Provides more than 300 lumens per 18" section
• Designed for compartments, panels, underbody lighting, walkways, and stairways
• LEDs housed inside a durable 5/8" diameter Lexan tube
• Built to withstand vehicle vibration and harsh operating environments
• Waterproof construction
• Fully submersible design
• Low power consumption
• Easy installation
• Long-life LED technology rated for 50,000 hours
• Available in 9" length increments from 9" to 63"
• Ideal for fire apparatus, rescue vehicles, utility fleets, and specialty vehicles
Specifications
• Manufacturer: Fire Research Corporation
• Product Type: LED Strip Lighting
• Light Color: Ultra-Bright White
• Housing Material: Lexan Tube
• Tube Diameter: 5/8"
• Waterproof: Yes
• Submersible: Yes
• LED Life Rating: 50,000 Hours
Available Models
• LED200-A09
• Length: 9"
• Light Output: 150 Lumens
• Current Draw @ 12V: 0.17 Amps
• Overall Dimensions: 10.125" W x 1.0625" D x 1" H
• LED200-A18
• Length: 18"
• Light Output: 300 Lumens
• Current Draw @ 12V: 0.35 Amps
• Overall Dimensions: 19.125" W x 1.0625" D x 1" H
• LED200-A27
• Length: 27"
• Light Output: 450 Lumens
• Current Draw @ 12V: 0.52 Amps
• Overall Dimensions: 28.125" W x 1.0625" D x 1" H
• LED200-A36
• Length: 36"
• Light Output: 600 Lumens
• Current Draw @ 12V: 0.70 Amps
• Overall Dimensions: 37.125" W x 1.0625" D x 1" H
• LED200-A45
• Length: 45"
• Light Output: 750 Lumens
• Current Draw @ 12V: 0.87 Amps
• Overall Dimensions: 46.125" W x 1.0625" D x 1" H
• LED200-A54
• Length: 54"
• Light Output: 900 Lumens
• Current Draw @ 12V: 1.05 Amps
• Overall Dimensions: 55.125" W x 1.0625" D x 1" H
• LED200-A63
• Length: 63"
• Light Output: 1,050 Lumens
• Current Draw @ 12V: 1.22 Amps
• Overall Dimensions: 64.125" W x 1.0625" D x 1" H
Applications

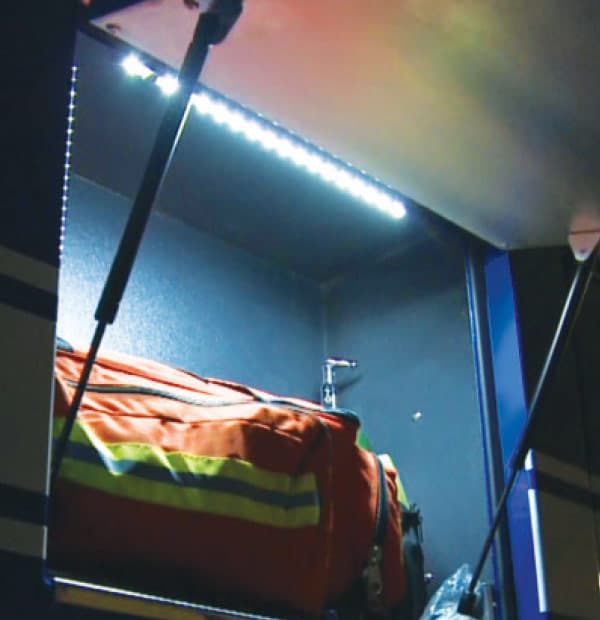

• Apparatus Compartments
• Equipment Cabinets
• Control Panels
• Underbody Lighting
• Walkways
• Stairways
• Rescue Vehicles
• Utility Vehicles
• Specialty Vehicle Interiors
Note: Sunstrip LED Strip Lighting provides durable, waterproof, and energy-efficient illumination for vehicle and equipment applications, delivering up to 1,050 lumens of bright white light while maintaining low current draw and long service life.
