Description

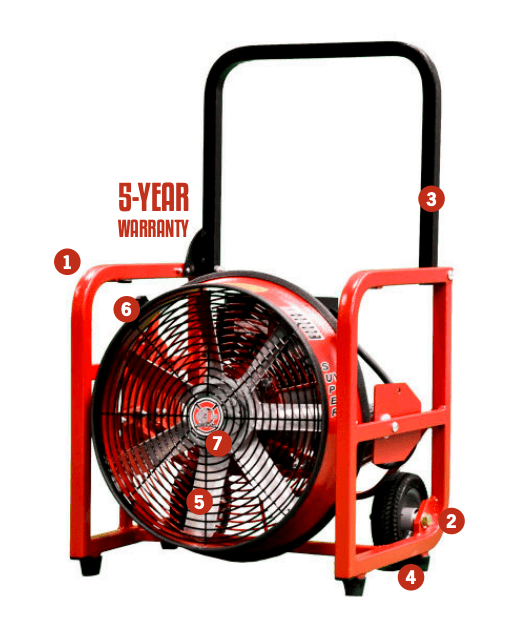

The Super Vac 7 Series Electric PPV Fan delivers dependable positive pressure ventilation in a compact, durable package designed for fire departments, industrial facilities, and emergency response teams. Available with Standard Motor, Explosion Proof Motor, or Variable Speed Motor configurations, the 7 Series provides reliable airflow while fitting easily into apparatus compartments where storage space is limited. Built on Super Vac's proven steel roll-cage frame, these fans are engineered to withstand years of demanding service.
Featuring a full roll-cage frame, four-position tilt adjustment, and fold-down ergonomic handle, the 7 Series is easy to transport, position, and store. Flat-proof rubber tires allow the fan to roll smoothly over curbs, stairs, and uneven terrain, while the single-piece cast aluminum blade and precision-spun steel shroud maximize airflow and durability in high-heat environments. The classic Air Cone Guard delivers effective airflow performance, with an optional StreamShaper® Guard available for enhanced air direction.
Standard models provide dependable everyday ventilation, Explosion Proof models feature Class I, Group D rated motors for hazardous environments, and Variable Speed models deliver increased airflow with adjustable motor speed while operating on a 15-amp circuit.
Features
• Available with Standard, Explosion Proof, or Variable Speed motor configurations
• Full steel roll-cage frame protects critical components
• Four-position tilt frame with lever (-10°, 0°, 10°, 20°)
• Fold-down ergonomic handle for compact storage and easy transport
• Full-width handle designed for use with gloved hands
• Flat-proof rubber tires roll easily over stairs, curbs, and rough terrain
• Single-piece cast aluminum blade withstands high-heat environments
• Precision-spun steel shroud maximizes airflow and durability
• Classic Air Cone Guard for efficient airflow performance
• Optional StreamShaper® Guard available
• Compact design fits easily into apparatus compartments
Specifications
• Manufacturer: Super Vac
• Product Type: Electric Positive Pressure Ventilation (PPV) Fan
• Available Motor Types: Standard Motor, Explosion Proof Motor, Variable Speed Motor
Standard Motor Models
716-E2 (16")
• Fan Diameter: 16"
• Weight: 68 lbs. (31 kg)
• Dimensions: 20" H × 20.5" W × 16" D (510 × 520 × 410 mm)
• Motor: Bluffton Single-Speed, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Recommended Setback: 6 ft. (1.8 m)
• Cone Angle: 18°
• Airflow: 5,890 CFM (10,007 CMH)
718-E2 (18")
• Fan Diameter: 18"
• Weight: 82 lbs. (37 kg)
• Dimensions: 22" H × 23.5" W × 19.5" D (560 × 600 × 500 mm)
• Motor: Bluffton Single-Speed, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Recommended Setback: 6 ft. (1.8 m)
• Cone Angle: 18°
• Airflow: 6,378 CFM (10,836 CMH)
720-E2 (20")
• Fan Diameter: 20"
• Weight: 88 lbs. (40 kg)
• Dimensions: 25.5" H × 26" W × 19.5" D (650 × 660 × 500 mm)
• Motor: Bluffton Single-Speed, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Recommended Setback: 6 ft. (1.8 m)
• Cone Angle: 18°
• Airflow: 9,007 CFM (15,302 CMH)
724-E2 (24")
• Fan Diameter: 24"
• Weight: 104 lbs. (47.5 kg)
• Dimensions: 28" H × 29.5" W × 21" D (710 × 750 × 535 mm)
• Motor: Bluffton Single-Speed, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Recommended Setback: 6 ft. (1.8 m)
• Cone Angle: 18°
• Airflow: 13,320 CFM (22,630 CMH)
Explosion Proof Models
716-EXP (16")
• Fan Diameter: 16"
• Weight: 78 lbs. (35.5 kg)
• Motor: Bluffton Single-Speed, Class I Group D Rated, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 20" × 20.5" × 16"
• Airflow: 5,890 CFM (10,007 CMH)
718-EXP (18")
• Fan Diameter: 18"
• Weight: 92 lbs. (42 kg)
• Motor: Bluffton Single-Speed, Class I Group D Rated, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 22" × 23.5" × 19.5"
• Airflow: 6,378 CFM (10,836 CMH)
720-EXP (20")
• Fan Diameter: 20"
• Weight: 98 lbs. (45 kg)
• Motor: Bluffton Single-Speed, Class I Group D Rated, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 25.5" × 26" × 19.5"
• Airflow: 9,007 CFM (15,302 CMH)
724-EXP (24")
• Fan Diameter: 24"
• Weight: 114 lbs. (52 kg)
• Motor: Bluffton Single-Speed, Class I Group D Rated, 1 HP, 50/60 Hz, 115/230V AC
• Speed: 1,750 RPM
• Starting Power: 4,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 28" × 29.5" × 21"
• Airflow: 13,320 CFM (22,630 CMH)
Variable Speed Models
716-EVS (16")
• Fan Diameter: 16"
• Weight: 72 lbs. (33 kg)
• Motor: RAE TEAO Variable-Speed, 1.5 HP, 50/60 Hz, 115/230V AC
• Speed: Up to 2,400 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 20" × 20.5" × 16"
• Airflow: 8,078 CFM (13,724 CMH)
718-EVS (18")
• Fan Diameter: 18"
• Weight: 86 lbs. (39 kg)
• Motor: RAE TEAO Variable-Speed, 1.5 HP, 50/60 Hz, 115/230V AC
• Speed: Up to 2,400 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 22" × 23.5" × 19.5"
• Airflow: 8,747 CFM (14,861 CMH)
720-EVS (20")
• Fan Diameter: 20"
• Weight: 92 lbs. (42 kg)
• Motor: RAE TEAO Variable-Speed, 1.5 HP, 50/60 Hz, 115/230V AC
• Speed: Up to 2,400 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 25.5" × 26" × 19.5"
• Airflow: 12,352 CFM (20,986 CMH)
724-EVS (24")
• Fan Diameter: 24"
• Weight: 108 lbs. (49 kg)
• Motor: RAE TEAO Variable-Speed, 1.5 HP, 50/60 Hz, 115/230V AC
• Speed: Up to 2,400 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 1,500 Watts
• Dimensions: 28" × 29.5" × 21"
• Airflow: 18,267 CFM (31,036 CMH)
