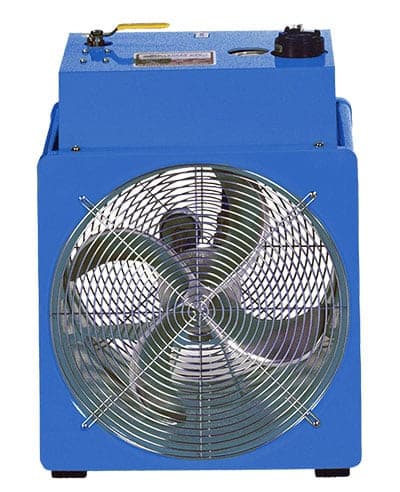

The Super Vac AF Series Compressed Air Confined Space Ventilators are engineered to provide powerful, reliable ventilation in hazardous environments where electricity or gasoline-powered equipment may not be suitable. Powered by pneumatic air motors, these confined space ventilators are ideal for locations with unknown gases or potentially explosive atmospheres. Each unit comes complete with its own filter, regulator, gauge, and oiler, providing everything needed to deliver high-volume airflow while minimizing compressed air consumption.
Built on Super Vac's rugged F Series platform, these ventilators feature an all-steel frame designed to withstand demanding industrial and emergency response environments. The patented four-tip recurve aluminum blade is precision balanced to maximize airflow while creating a tight spiral of air that efficiently removes smoke, fumes, and contaminated air. Heavy-duty rubber feet provide stability during operation, while four integrated carry handles allow for easy one- or two-person transport. Front and rear safety guards help protect operators and internal components during use.
Available in 12-inch, 16-inch, 20-inch, and 24-inch models, the Super Vac AF Series delivers dependable airflow for confined space entry, industrial ventilation, hazardous material response, and utility operations.
Features
• Pneumatic-powered confined space ventilator for hazardous environments
• Safe for use in locations with unknown or potentially explosive gases
• Includes filter, regulator, gauge, and oiler for complete pneumatic operation
• Patented four-tip recurve aluminum blade maximizes airflow efficiency
• Precision-balanced blade reduces vibration and increases performance
• Rugged all-steel frame with heavy-gauge steel grille
• Durable baked-on powder coat finish resists corrosion and wear
• Heavy-duty rubber feet keep the fan securely in place during operation
• Four integrated carry handles allow easy one- or two-person transport
• Front and rear safety guards protect operators and internal components
• Available in 12", 16", 20", and 24" models
Specifications
• Manufacturer: Super Vac
• Product Type: Pneumatic Confined Space Ventilator
• Motor Type: Pneumatic Air Motor
AF124 – 12" Model
• Fan Diameter: 12"
• Weight: 39 lbs. (18 kg)
• Dimensions: 15.5" H × 10.75" W × 16" D (395 × 380 × 330 mm)
• Motor: 1/2 HP Pneumatic
• Speed: 2,000 RPM
• Air Requirement: 80 PSI / 27 CFM
• Airflow: 3,800 CFM (6,455 CMH)
AF164 – 16" Model
• Fan Diameter: 16"
• Weight: 45 lbs. (20.5 kg)
• Dimensions: 19.25" H × 18.75" W × 15.5" D (490 × 480 × 394 mm)
• Motor: 1-1/2 HP Pneumatic
• Speed: 3,600 RPM
• Air Requirement: 100 PSI / 75 CFM
• Airflow: 9,600 CFM (16,310 CMH)
AF200 – 20" Model
• Fan Diameter: 20"
• Weight: 60 lbs. (27 kg)
• Dimensions: 25.5" H × 24.75" W × 16.25" D (650 × 630 × 415 mm)
• Motor: 1-1/2 HP Pneumatic
• Speed: 3,600 RPM
• Air Requirement: 100 PSI / 75 CFM
• Airflow: 9,800 CFM (16,650 CMH)
AF244 – 24" Model
• Fan Diameter: 24"
• Weight: 105 lbs. (48 kg)
• Dimensions: 28.5" H × 28" W × 16.25" D (725 × 710 × 480 mm)
• Motor: 5 HP Pneumatic
• Speed: 2,250 RPM
• Air Requirement: 100 PSI / 100 CFM
• Airflow: 14,200 CFM (24,125 CMH)
