Description

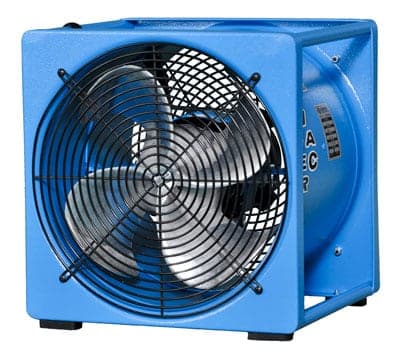

The Super Vac F Series Single-Speed Confined Space Ventilation Fans are designed to deliver dependable airflow for confined space entry, industrial maintenance, utility work, and emergency response operations. Available with either a Standard Motor or Hazardous Location Motor, these single-speed electric ventilators provide an excellent combination of portability, durability, and reliable performance for everyday ventilation applications. Built on Super Vac's proven F Series platform, they offer rugged construction and efficient airflow in a compact package.
Constructed with a heavy-duty steel frame, baked-on powder coat finish, and heavy-gauge steel grilles, the F Series is built to withstand demanding work environments. Super Vac's patented four-tip recurve aluminum blade is precision balanced to maximize airflow while creating a tight spiral of air that efficiently removes smoke, fumes, and contaminated air. Heavy-duty rubber feet keep the fan securely in place during operation, while four integrated carry handles allow easy one- or two-person transport. Front and rear safety guards help protect both operators and internal components.
The Hazardous Location models feature motors rated for Class I, Group D environments, making them well suited for areas where combustible gases or vapors may be present. Available in 12-inch and 16-inch models, the Super Vac F Series provides dependable ventilation performance for both standard and hazardous applications.
Features
• Single-speed electric confined space ventilation fan
• Available with Standard or Hazardous Location motors
• Patented four-tip recurve aluminum blade maximizes airflow performance
• Precision-balanced blade reduces vibration and increases efficiency
• Heavy-duty all-steel frame for long service life
• Heavy-gauge steel grilles protect internal components
• Durable baked-on powder coat finish resists corrosion and wear
• Heavy-duty rubber feet provide excellent stability during operation
• Four integrated carry handles for easy one- or two-person transport
• Front and rear safety guards protect operators and equipment
• Hazardous Location models rated for Class I, Group D environments
• Available in 12" and 16" models
Specifications
• Manufacturer: Super Vac
• Product Type: Single-Speed Electric Confined Space Ventilation Fan
• Available Motor Types: Standard Motor or Hazardous Location Motor
F124 – Standard Motor (12")
• Fan Diameter: 12"
• Weight: 40 lbs. (18 kg)
• Dimensions: 15.5" H × 15" W × 13" D (395 × 380 × 330 mm)
• Motor: Bluffton, Single-Speed TEAO, 1/3 HP
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 1,725 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 800 Watts
• Airflow: 2,100 CFM (3,570 CMH)
F164 – Standard Motor (16")
• Fan Diameter: 16"
• Weight: 44 lbs. (20 kg)
• Dimensions: 19.25" H × 18.75" W × 13" D (490 × 480 × 330 mm)
• Motor: Bluffton, Single-Speed TEAO, 1/3 HP
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 1,725 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 700 Watts
• Airflow: 5,200 CFM (8,835 CMH)
F124E – Hazardous Location Motor (12")
• Fan Diameter: 12"
• Weight: 42 lbs. (19 kg)
• Dimensions: 15.5" H × 15" W × 13" D (395 × 380 × 330 mm)
• Motor: Bluffton, Single-Speed Hazardous Location, 1/3 HP
• Hazardous Location Rating: Class I, Group D
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 1,725 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 800 Watts
• Airflow: 2,100 CFM (3,570 CMH)
F164E – Hazardous Location Motor (16")
• Fan Diameter: 16"
• Weight: 49 lbs. (22 kg)
• Dimensions: 19.25" H × 18.75" W × 13" D (489 × 477 × 330 mm)
• Motor: Bluffton, Single-Speed Hazardous Location, 1/3 HP
• Hazardous Location Rating: Class I, Group D
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 1,725 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 700 Watts
• Airflow: 5,200 CFM (8,835 CMH)
