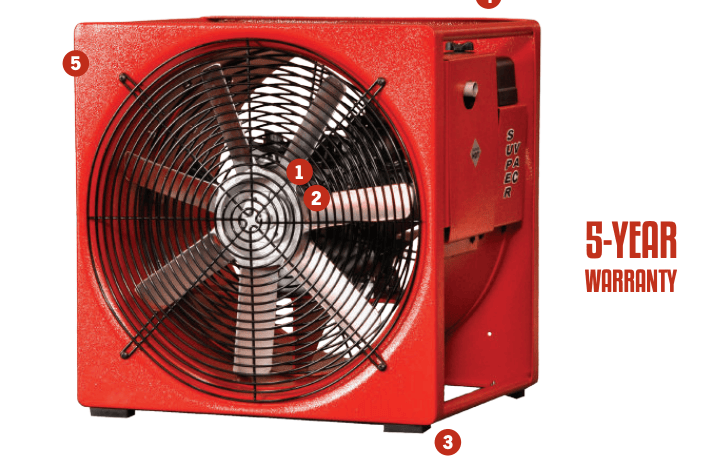

The Super Vac Gas Powered Smoke Ejectors deliver exceptional ventilation performance in a compact, portable package for departments that need reliable airflow without depending on electrical power. Designed as some of the smallest gas-powered smoke ejectors in the industry, these high-performance fans utilize powerful Honda® GX engines to produce airflow comparable to much larger electric smoke ejectors. Their compact footprint allows them to fit easily into apparatus compartments while providing dependable ventilation for structural firefighting and emergency response operations.
Built for durability and versatility, these smoke ejectors utilize negative pressure ventilation to efficiently remove smoke from structures but can also be reversed for positive pressure ventilation tactics when needed. A rugged seven-point, single-piece cast aluminum blade withstands high-temperature environments better than plastic alternatives, while the precision-balanced design maximizes airflow performance. Heavy-duty rubber feet keep the fan securely in place during operation, and four integrated carry handles allow one or two firefighters to transport the unit with ease. Front and rear safety guards help protect both operators and critical internal components during operation and transport.
Available with Honda GX120, GX160, and GX200 engines, the Super Vac Gas Powered Smoke Ejectors provide dependable performance for departments that require portable, high-output ventilation wherever electrical power is unavailable.
Features
• Gas-powered smoke ejector for positive and negative pressure ventilation
• Operates without electrical power for maximum deployment flexibility
• Compact design fits easily into apparatus compartments
• Can be used for negative pressure smoke removal or reversed for positive pressure ventilation
• Single-piece cast aluminum blade withstands high-heat environments
• Precision-balanced blade maximizes airflow performance
• Heavy-duty rubber feet provide stability during operation
• Four integrated carry handles allow easy one- or two-person transport
• Front and rear safety guards protect operators and internal components
• Powered by dependable Honda® GX series engines
• Available in 16" and 18" models
Specifications
• Manufacturer: Super Vac
• Product Type: Gas Powered Smoke Ejector
• Available Sizes: 16", 18"
16" Model – GP164S
• Fan Diameter: 16"
• Weight: 55 lbs. (25 kg)
• Dimensions: 19.5" H × 19" W × 15.5" D
• Engine: Honda® GX120
• Engine Displacement: 118 cc
• Operating Speed: 3,500 RPM
• Airflow: 9,250 CFM (15,715 CMH)
16" Model – GP167S
• Fan Diameter: 16"
• Weight: 58 lbs. (27 kg)
• Dimensions: 19.5" H × 19" W × 15.5" D
• Engine: Honda® GX160
• Engine Displacement: 163 cc
• Operating Speed: 3,500 RPM
• Airflow: 9,500 CFM (16,140 CMH)
18" Model – GP187S
• Fan Diameter: 18"
• Weight: 76 lbs. (34 kg)
• Dimensions: 23.25" H × 23" W × 16.5" D
• Engine: Honda® GX200
• Engine Displacement: 196 cc
• Operating Speed: 3,500 RPM
• Airflow: 10,551 CFM (17,926 CMH)
