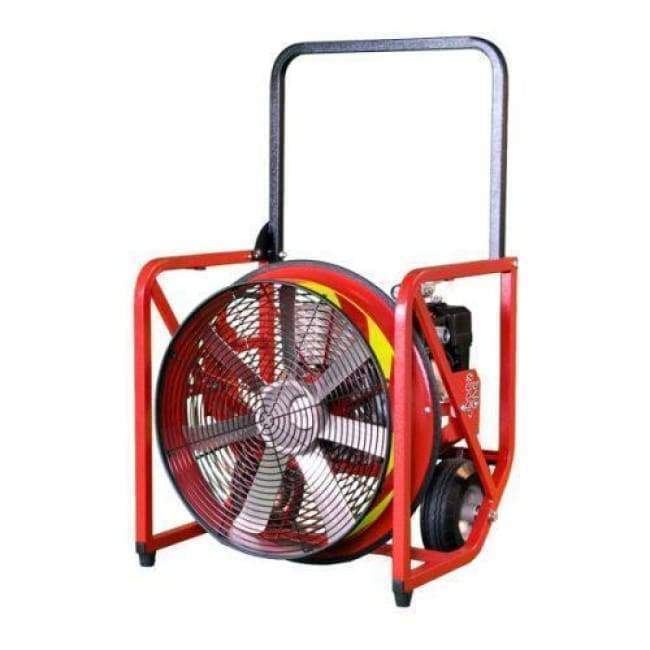

Powered by a Honda GX120, this PPV gas engine fan provides unmatched durability in our most compact size — perfect for departments that need extra space in apparatus compartments. Featuring a durable steel-frame, roll-cage design with 4-position tilt, this PPV has proven itself over the years.
Full-Roll Cage Frame: Protects key components
4-Position Tilt Frame with Lever: Provides -10 degree , 0 degree , 10 degree , 20 degree
Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs/curbs easily
Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat
Precision-Spun Steel Shroud: Provides durability with max airflow
Air Cone Guard: Classic design for maximum airflow
Honda Engine
7-SERIES
SIZE
WEIGHT
HxWxD DIMENSIONS Hx Wx D
ENGINE
DISPLACEMENT
RPM
SETBACK
ANGLE
OUTPUT
HONDA ENGINE 716G4-H 16"
74 lbs34 kg
20" x 20.5" x 16"510 x 520 x 410mm
Honda GX120
118 cc
3,530
6 ft1.8 m
18º
11,740 cfm19,945 cmh
718G4-H 18"
86 lbs39 kg
22" x 23.5" x 19.5"560 x 600 x 500 mm
Honda GX200
196 cc
3,535
6 ft1.8 m
18º
15,168 cfm25,770 cmh
720G4-H 20"
96 lbs44 kg
25.5" x 26" x 19.5"650 x 660 x 500 mm
Honda GX200
196 cc
3,350
6 ft1.8 m
18º
18,182 cfm30,891 cmh
724G4-H 24"
134 lbs61 kg
28" x 29.5" x 21"710 x 750 x 535 mm
Honda GX270
270 cc
3,435
6 ft1.8 m
18º
20,920 cfm35,545 cmh
730G4-H
30"
163 lbs74 kg
39" x 37" x 27.5"990 x 940 x 700 mm
Honda GX390
389 cc
3,220
6 ft1.8 m
10º
26,849 cfm45,616 cmh
