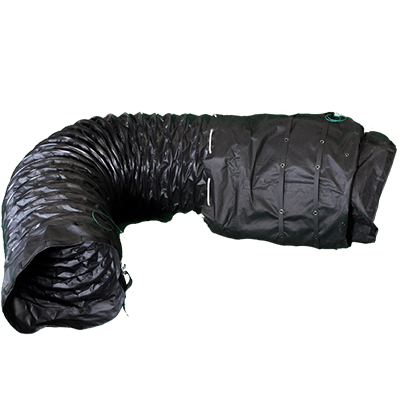

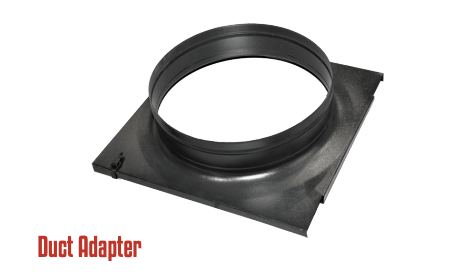

The Super Vac Hazardous Location Conductive Duct with Adapters is designed to provide safe, efficient airflow in hazardous and confined-space environments where static discharge must be minimized. Constructed from static-dissipating neoprene-coated polyester and equipped with integrated adapters for compatible industrial exhausters and smoke ejectors, this duct is ideal for industrial facilities, utility companies, fire departments, and confined space rescue operations. A built-in storage bag allows for convenient transport and compact storage when not in use.
Engineered for demanding applications, the duct features a continuous Class 1 spring steel wire helix that provides outstanding flexibility while allowing the duct to collapse for easy storage. Heavy-duty hot-melt wear strips protect the wire helix from abrasion and extend service life in harsh environments. When properly grounded, the specially formulated conductive material safely dissipates static buildup, making the duct well suited for hazardous locations where combustible vapors or gases may be present.
Available in multiple diameters, the Super Vac Hazardous Location Conductive Duct with Adapters is designed to pair with compatible Super Vac industrial exhausters and smoke ejectors, providing dependable ventilation performance in hazardous environments.
Features
• Hazardous location conductive ventilation duct with integrated adapters
• Designed for industrial exhausters and smoke ejectors
• Constructed from static-dissipating single-ply neoprene-coated polyester
• Special conductive compound safely dissipates static buildup when properly grounded
• Built-in storage bag for convenient transport and compact storage
• Continuous Class 1 spring steel wire helix provides flexibility and compact storage
• Heavy-duty hot-melt wear strips protect the wire helix from abrasion
• Thermal conductivity rated to 100,000 ohms or less per square inch
• Durable construction for confined space and hazardous location applications
• Available in multiple diameters to fit compatible Super Vac equipment
Specifications
• Manufacturer: Super Vac
• Product Type: Hazardous Location Conductive Duct with Adapters
• Material: Single-ply neoprene-coated polyester
• Wire Helix: Continuous Class 1 spring steel
• Thermal Conductivity: 100,000 ohms or less per square inch (when properly grounded)
• Storage: Integrated storage bag
12x20HZAD
• Compatible Equipment: 12" Industrial Exhauster/Smoke Ejector
• Duct Diameter: 12" (305 mm)
• Duct Length: 20' (6.1 m)
16x20HZAD
• Compatible Equipment: 16" Industrial Exhauster/Smoke Ejector
• Duct Diameter: 16" (406 mm)
• Duct Length: 20' (6.1 m)
20x20HZAD
• Compatible Equipment: 20" Industrial Exhauster/Smoke Ejector
• Duct Diameter: 20" (508 mm)
• Duct Length: 20' (6.1 m)
24x20HZAD
• Compatible Equipment: 24" Industrial Exhauster/Smoke Ejector
• Duct Diameter: 24" (610 mm)
• Duct Length: 20' (6.1 m)
