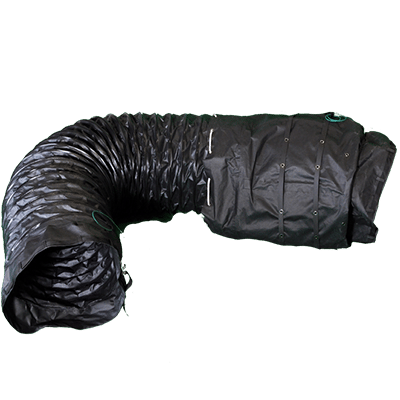

The Super Vac Hazardous Location Duct is designed to safely direct airflow in hazardous and confined-space environments where static discharge must be minimized. Constructed from static-dissipating neoprene-coated polyester, this durable ventilation duct is engineered to work with Super Vac hazardous location blowers and PPVs, making it ideal for industrial facilities, utilities, fire departments, and confined space rescue operations. A built-in storage bag allows for convenient transport and compact storage between uses.
Built to withstand demanding jobsite conditions, the duct features a continuous Class 1 spring steel wire helix that provides outstanding flexibility while allowing the duct to collapse for compact storage. Heavy-duty hot-melt wear strips protect the wire helix from abrasion and extend service life while withstanding temperatures up to 250°F. When properly grounded, the specially formulated conductive material safely dissipates static buildup, making the duct well suited for hazardous locations where combustible vapors or gases may be present.
Available in multiple diameters and lengths, the Super Vac Hazardous Location Duct provides compatibility with a wide range of Super Vac hazardous location blowers and positive pressure ventilation fans.
Features
• Hazardous location ventilation duct for confined space and industrial applications
• Constructed from static-dissipating neoprene-coated polyester material
• Special conductive compound safely dissipates static buildup when properly grounded
• Built-in storage bag for convenient transport and storage
• Continuous Class 1 spring steel wire helix provides flexibility and compact storage
• Heavy-duty hot-melt wear strips protect the wire helix from abrasion
• Rated for temperatures up to 250°F
• Thermal conductivity rated to 100,000 ohms or less per square inch
• Compatible with Super Vac hazardous location blowers and PPVs
• Available in multiple diameters and lengths
Specifications
• Manufacturer: Super Vac
• Product Type: Hazardous Location Ventilation Duct
• Material: Single-ply neoprene-coated polyester
• Wire Helix: Continuous Class 1 spring steel
• Maximum Temperature: 250°F
• Thermal Conductivity: 100,000 ohms or less per square inch (when properly grounded)
8x15HZ1
• Compatible Equipment: 8" Nano Blower
• Duct Diameter: 8" (203 mm)
• Duct Length: 15' (4.6 m)
8x25HZ1
• Compatible Equipment: 8" Nano Blower
• Duct Diameter: 8" (203 mm)
• Duct Length: 25' (7.6 m)
12x20HZ1
• Compatible Equipment: 12" PPV Fans
• Duct Diameter: 12" (305 mm)
• Duct Length: 20' (6.1 m)
16x20HZ1
• Compatible Equipment: 16" PPV Fans
• Duct Diameter: 16" (406 mm)
• Duct Length: 20' (6.1 m)
20x20HZ1
• Compatible Equipment: 18" and 20" PPV Fans
• Duct Diameter: 20" (508 mm)
• Duct Length: 20' (6.1 m)
24x20HZ1
• Compatible Equipment: 24" PPV Fans
• Duct Diameter: 24" (610 mm)
• Duct Length: 20' (6.1 m)
