Description

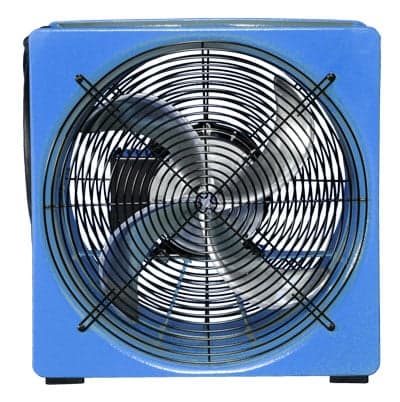

The Super Vac HF Series Single High-Speed Confined Space Fans are engineered to deliver powerful, dependable ventilation for confined space entry, industrial maintenance, utility work, and emergency response operations. Available with either a Standard Motor or Hazardous Location Motor, these high-speed electric ventilators combine exceptional airflow with the rugged durability of Super Vac's proven F Series platform. Their compact design provides the ideal balance of portability and performance for everyday ventilation applications.
Constructed with a heavy-duty steel frame, baked-on powder coat finish, and heavy-gauge steel grilles, the HF Series is built to withstand demanding work environments. Super Vac's patented four-tip recurve aluminum blade is precision balanced to maximize airflow while creating a high-velocity spiral of air that efficiently removes smoke, fumes, and contaminated air. Heavy-duty rubber feet provide excellent stability during operation, while four integrated carry handles make transportation easy for one or two operators. Front and rear safety guards help protect both personnel and internal components.
The Hazardous Location models are equipped with motors rated for Class I, Group D environments, making them ideal for locations where combustible gases or vapors may be present. Available in 12-inch and 16-inch models, the HF Series provides reliable ventilation performance for both standard and hazardous applications.
Features
• High-speed electric confined space ventilator
• Available with Standard or Hazardous Location motors
• Patented four-tip recurve aluminum blade maximizes airflow performance
• Precision-balanced blade reduces vibration and increases efficiency
• Heavy-duty all-steel frame for long service life
• Heavy-gauge steel grilles protect internal components
• Durable baked-on powder coat finish resists corrosion and wear
• Heavy-duty rubber feet provide excellent stability during operation
• Four integrated carry handles for easy one- or two-person transport
• Front and rear safety guards protect operators and equipment
• Hazardous Location models rated for Class I, Group D environments
• Available in 12" and 16" models
Specifications
• Manufacturer: Super Vac
• Product Type: Single High-Speed Electric Confined Space Ventilator
• Available Motor Types: Standard Motor or Hazardous Location Motor
HF124 – Standard Motor (12")
• Fan Diameter: 12"
• Weight: 40 lbs. (18 kg)
• Dimensions: 15.5" H × 15" W × 13" D (395 × 380 × 330 mm)
• Motor: Bluffton, Single-Speed TEAO, 1/2 HP
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 3,450 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 800 Watts
• Airflow: 3,700 CFM (6,285 CMH)
HF164 – Standard Motor (16")
• Fan Diameter: 16"
• Weight: 59 lbs. (27 kg)
• Dimensions: 19.25" H × 18.75" W × 15.5" D (490 × 480 × 394 mm)
• Motor: Bluffton, Single-Speed TEAO, 1-1/2 HP
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 3,450 RPM
• Starting Power: 6,000 Watts (20-amp circuit)
• Running Power: 2,100 Watts
• Airflow: 9,620 CFM (16,345 CMH)
HF124E – Hazardous Location Motor (12")
• Fan Diameter: 12"
• Weight: 42 lbs. (19 kg)
• Dimensions: 15.5" H × 15" W × 13" D (395 × 380 × 330 mm)
• Motor: Bluffton, Single-Speed Hazardous Location, 1/2 HP
• Hazardous Location Rating: Class I, Group D
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 3,450 RPM
• Starting Power: 2,000 Watts (15-amp circuit)
• Running Power: 800 Watts
• Airflow: 3,700 CFM (6,285 CMH)
HF164E – Hazardous Location Motor (16")
• Fan Diameter: 16"
• Weight: 63 lbs. (28.5 kg)
• Dimensions: 19.25" H × 18.75" W × 15.5" D (490 × 480 × 394 mm)
• Motor: Bluffton, Single-Speed Hazardous Location, 1-1/2 HP
• Hazardous Location Rating: Class I, Group D
• Electrical: 50/60 Hz, 115/230V AC
• Speed: 3,450 RPM
• Starting Power: 6,000 Watts (20-amp circuit)
• Running Power: 2,100 Watts
• Airflow: 9,620 CFM (16,345 CMH)
