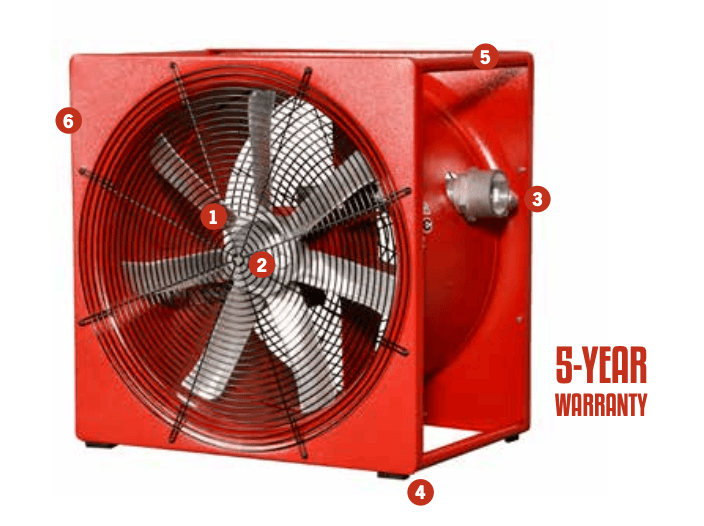

The Super Vac Hydraulic Smoke Ejectors provide dependable, high-performance smoke removal without the need for electricity or gasoline, making them ideal for hazardous environments where explosive or unknown gases may be present. Powered by a reliable water turbine motor, these compact negative pressure ventilation fans deliver powerful airflow while maintaining a small footprint, making them an excellent choice for departments with limited apparatus storage space.
Built for demanding fire service applications, each smoke ejector features a rugged single-piece cast aluminum blade that withstands high-temperature environments better than plastic alternatives. The precision-balanced blade maximizes airflow efficiency, while heavy-duty rubber feet help keep the fan securely in place during operation. Four integrated carry handles allow one- or two-person transport, and front and rear safety guards protect both operators and critical internal components.
Available in 12-inch, 16-inch, 20-inch, and 24-inch models, the Super Vac Hydraulic Smoke Ejectors are equipped with a standard 1.5-inch NHT hose fitting and operate from a 5.5 HP water turbine using 100–250 PSI water pressure. Their durable construction and dependable performance make them an excellent solution for ventilation in hazardous or remote environments.
Features
• Hydraulic-powered smoke ejector for negative pressure ventilation
• Operates without electricity or gasoline
• Ideal for hazardous locations with explosive or unknown gases
• Compact design fits easily into limited apparatus compartments
• Single-piece cast aluminum blade withstands high-heat environments
• Precision-balanced blade maximizes airflow performance
• Standard 1.5" NHT hose fitting with additional fitting options available
• Heavy-duty rubber feet provide stability during operation
• Four integrated carry handles allow easy one- or two-person transport
• Front and rear safety guards protect operators and internal components
• Available in 12", 16", 20", and 24" models
Specifications
• Manufacturer: Super Vac
• Product Type: Hydraulic Smoke Ejector
• Available Sizes: 12", 16", 20", 24"
• Power Source: 5.5 HP Water Turbine
• Operating Pressure: 100–250 PSI
• Standard Hose Connection: 1.5" NHT
12" Model – P124WT
• Fan Diameter: 12"
• Weight: 50 lbs. (23 kg)
• Dimensions: 15.5" H × 15" W × 13" D
• Water Consumption: 65 GPM
• Airflow: 4,300 CFM (7,305 CMH)
16" Model – P164WT
• Fan Diameter: 16"
• Weight: 57 lbs. (26 kg)
• Dimensions: 19.25" H × 18.75" W × 13" D
• Water Consumption: 65 GPM
• Airflow: 9,950 CFM (16,905 CMH)
20" Model – P200WT
• Fan Diameter: 20"
• Weight: 88 lbs. (40 kg)
• Dimensions: 22.5" H × 24.75" W × 16.25" D
• Water Consumption: 65 GPM
• Airflow: 10,800 CFM (18,350 CMH)
24" Model – P244WT
• Fan Diameter: 24"
• Weight: 123 lbs. (56 kg)
• Dimensions: 28.5" H × 28" W × 18.75" D
• Water Consumption: 65 GPM
• Airflow: 14,200 CFM (24,125 CMH)
