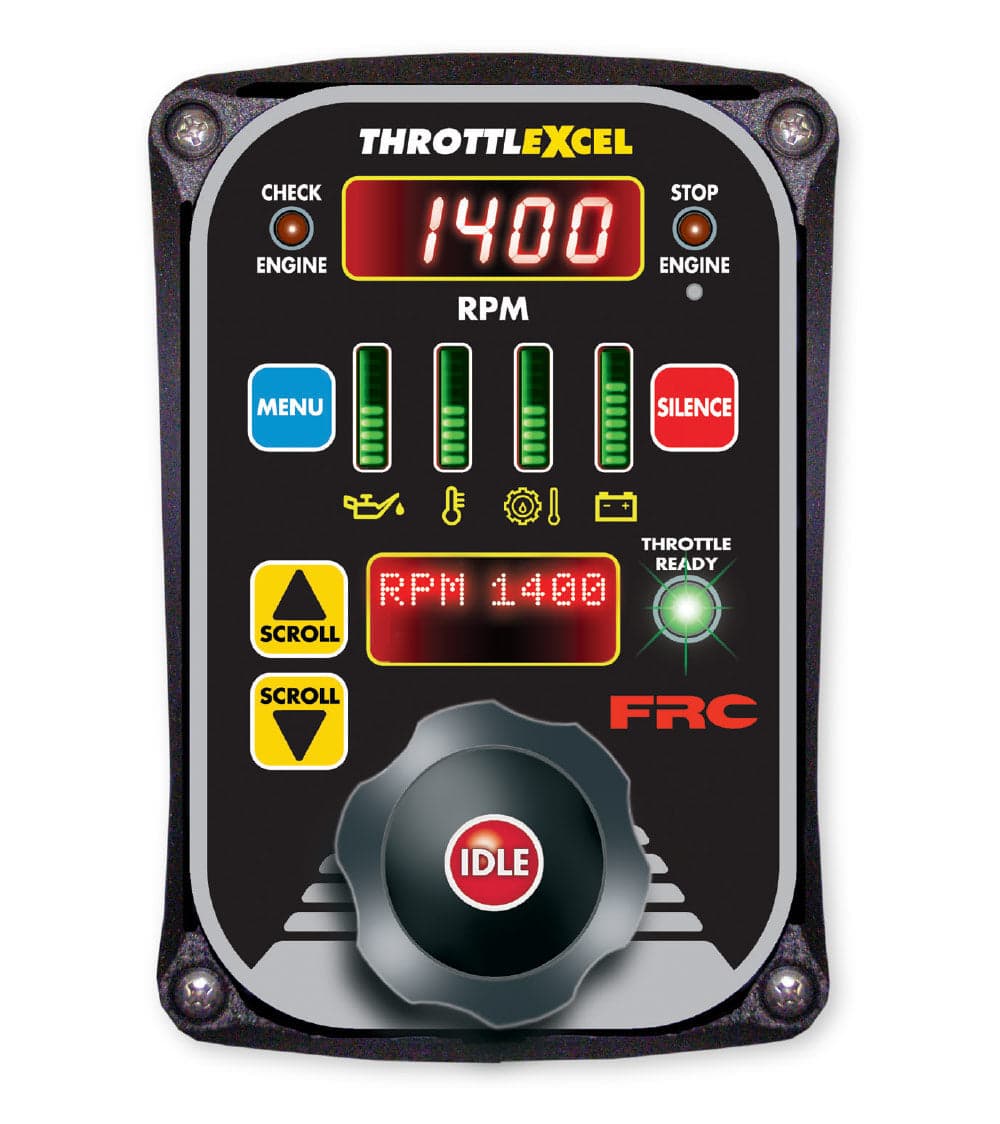

The Fire Research ThrottleXcel combines remote engine throttle control with advanced engine monitoring capabilities in a single compact control module. Designed for fire apparatus and specialty vehicles, ThrottleXcel receives engine information through the J1939 or ISO CAN Bus and provides operators with precise RPM control while continuously monitoring critical engine functions.
Featuring a quick-response control knob, dual-line digital message display, and bi-color LED bar graph indicators, ThrottleXcel delivers clear visual feedback for engine oil pressure, coolant temperature, transmission temperature, and battery voltage. The system can be configured for manual throttle operation or automatic RPM management depending on engine compatibility and application requirements. With built-in diagnostics, programmable high-idle functionality, automatic day/night display adjustment, and optional audible alarms, ThrottleXcel is engineered to provide dependable engine control and monitoring in demanding emergency response environments.
Features
• Remote engine throttle and monitoring system
• Receives engine information via J1939 or ISO CAN Bus
• Manual or automatic control of engine RPM
• Always powers up at engine idle
• Quick-response control knob for precise RPM adjustments
• Interlock signal recognition with Throttle Ready LED
• Return-to-idle function with dedicated push-button control
• Two-line digital message display for RPM, warnings, and system information
• Bi-color LED bar graphs provide clear engine status indication
• Dedicated transmission temperature LED bar graph
• Diagnostic and fault monitoring capabilities
• Programmable high-idle function
• Automatic day/night display brightness adjustment
• Separate MENU and SILENCE buttons for easy operation
• Optional audible alarm buzzer
• Optional kPa, BAR, and °C display formats
• Standard kit includes control module and cables
• Waterproof control module construction
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: ThrottleXcel
• Product Type: Engine Throttle with Display and Monitoring System
• Supply Voltage: 12/24 VDC
• Supply Current: 0.5 Amps
• Dimensions: 6.75" H x 4.625" W
• Dimensions (Metric): 171.45 mm H x 117.48 mm W
• Oil Pressure Display Range: 10–100 PSI
• Engine Coolant Temperature Display Range: 150–240°F
• Transmission Temperature Display Range: 140–300°F
• Battery Voltage Display Range (12V): 11.5–15.5 VDC
• Battery Voltage Display Range (24V): 23.0–30.0 VDC
• Optional Audible Alarm Output: 96 dB
• Optional Display Units: kPa, BAR, °C
• Standard Kit Includes: Control Module and Cables
Available Models
• ELA200 – Generic
• ELA201 – Cummins
• ELA202 – Detroit Diesel
• ELA204 – Navistar
• ELA205 – Caterpillar
• ELA206 – Ford
• ELA207 – Mack
• ELA208 – Scania
• ELA210 – Mercedes
• ELA224 – MAN
• ELA228 – RAM
• ELA229 – Volvo
Note: ThrottleXcel provides both engine RPM control and real-time monitoring of critical engine functions, helping operators maintain optimal apparatus performance while improving situational awareness during emergency operations.
