The USAR Task Force Rigging Kit is a comprehensive rope rescue system designed specifically for Urban Search and Rescue (USAR) operations. Built around the equipment commonly found on FEMA and USAR requirements lists, this kit provides the essential tools needed for over-the-side rescues, trench rescues, confined space operations, and technical rope rescue scenarios. It combines hauling, lowering, patient packaging, anchor-building, and edge protection equipment into a complete deployment-ready solution.
At the heart of the system are two CMC CLUTCH™ by Harken™ devices, providing efficient raising, smooth lowering, anti-panic braking, force-limiting overload protection, and integrated beckets for advanced rescue rigging. The kit also includes the versatile AZTEK ProSeries™ LT System, a rescue litter with patient packaging equipment, anchor gear, rope bags, and edge protection components. Available in either an 11 mm or 13 mm rope configuration, the USAR Task Force Rigging Kit delivers the equipment necessary to build main and belay systems while maintaining the flexibility required for complex rescue operations.
Features
• Complete rope rescue system designed for Urban Search and Rescue operations
• Meets the equipment needs of many FEMA and USAR response teams
• Suitable for over-the-side, trench rescue, and confined space rescue operations
• Includes AZTEK ProSeries™ LT System for versatile mechanical advantage applications
• Features two CMC CLUTCH™ devices for controlled raising and lowering operations
• CLUTCH devices include anti-panic braking, force-limiting protection, and integrated beckets
• Includes rescue litter and patient packaging system for victim transport
• Comprehensive anchor-building equipment and edge protection components included
• Organized storage bags and packs for rapid deployment and transportation
• Available in either 11 mm G11™ rope or 13 mm Static-Pro™ rope configurations

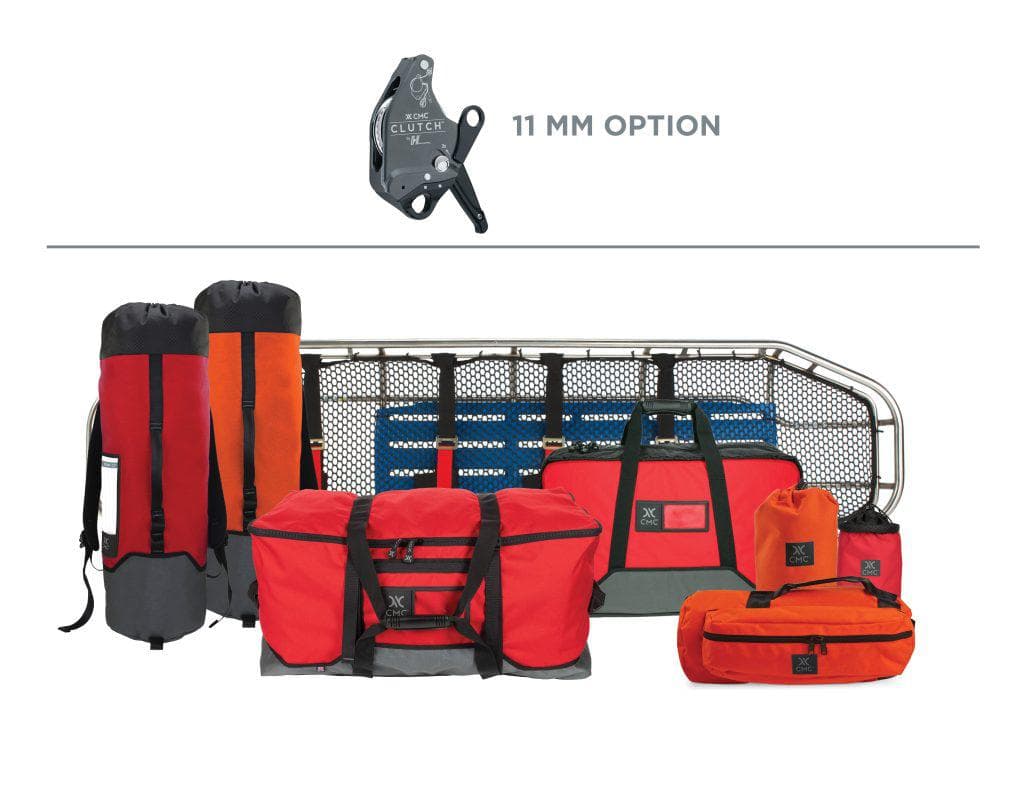

Kit Contents
Bags & Packs
• Shasta Gear Bag with Shoulder Strap – Red
• Truck Cache – Red
• Litter Pack
• Rope Bag #2 – Orange
• Rope Bag #2 – Red
Technical Gear
• AZTEK ProSeries™ LT System
• ProSeries Locking Carabiners (9)
• ProSwivel 1.5" PMP SS Pulleys (3)
• ProSwivel 1.5" Double Pulley (1)
• 1" Tubular Web, Blue – 6 x 15 ft
• 1" Tubular Web, Green – 6 x 5 ft
• 1" Tubular Web, Red – 6 x 20 ft
• 1" Tubular Web, Yellow – 6 x 12 ft
• FastLink Anchor Straps, Medium (2)
• FastLink Pick-Off Strap
• Sewn Loop 8 mm Prusiks, Red 18" (5)
• Rope Rescue Manual
Patient Packaging
• ProSeries Litter Harness
• Patient Tie-In System for One-Piece Litter
• Pelvic Harness Tie-In System
• Adjustable Litter Straps (4)
• Stainless Steel Rescue Litter, Rectangular
Edge Protection
• Anchor Strap Sleeves, Medium (2)
• XL Edge Pads (2)
• Ultra Pro 4 Edge Protector
11 mm Kit Includes
• CMC CLUTCH™ 11 mm (7/16 in) – (2)
• G11™ Rope, Blue/White – 200 ft
• G11™ Rope, Red/White – 200 ft
13 mm Kit Includes
• CMC CLUTCH™ 13 mm (1/2 in) – (2)
• Static-Pro™ Rope, Orange – 200 ft
• Static-Pro™ Rope, Red – 200 ft
Specifications
11 mm USAR Task Force Rigging Kit
• Item Number: 500602
• CLUTCH Configuration: Two 11 mm Gray CLUTCH Devices
• Rope Included: Two 200 ft Lengths of 11 mm G11™ Rope
13 mm USAR Task Force Rigging Kit
• Item Number: 500603
• CLUTCH Configuration: Two 13 mm Red CLUTCH Devices
• Rope Included: Two 200 ft Lengths of 12.5 mm Static-Pro™ Rope
