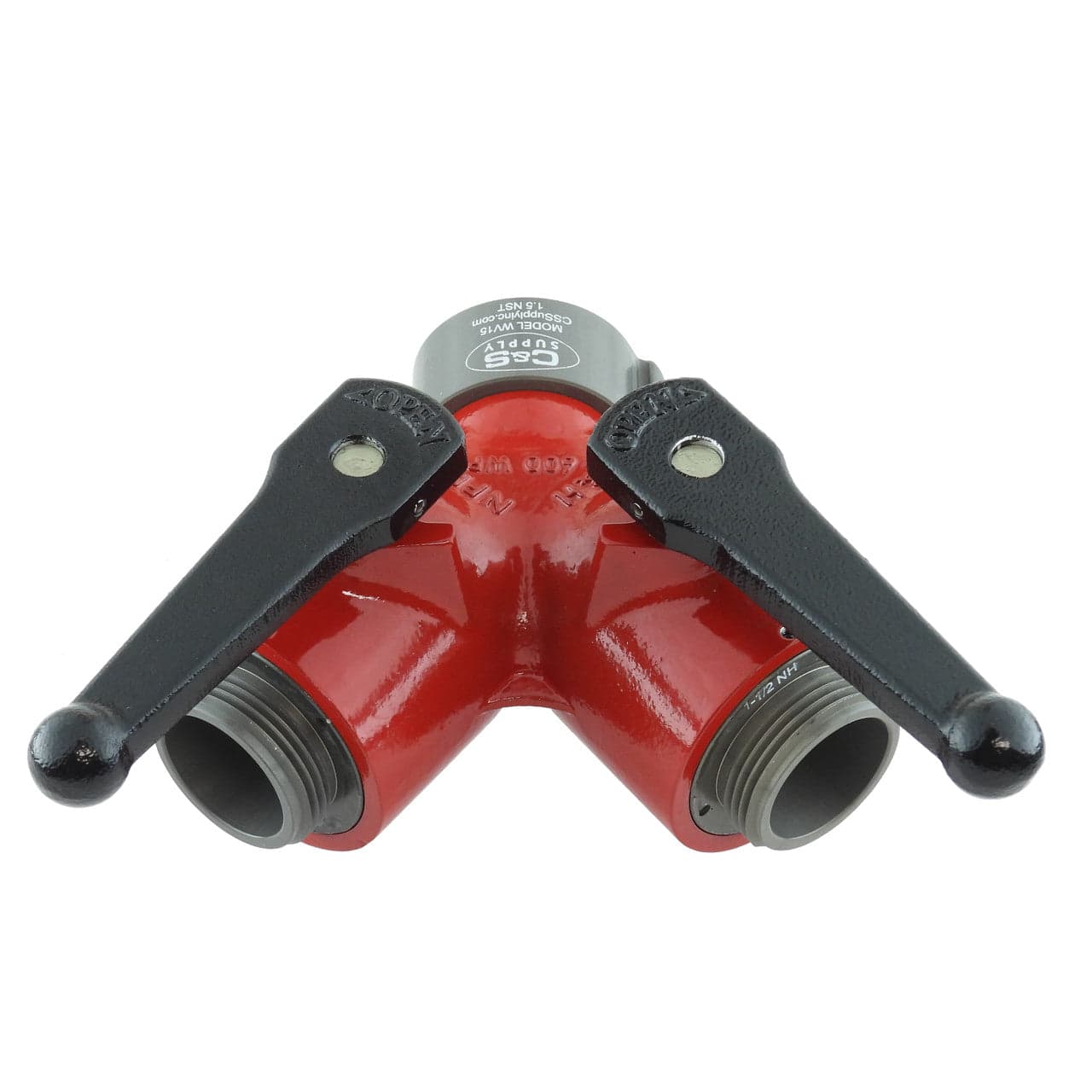

The C&S Supply Forestry Gated Wye Valve 1.5" Female x (2) 1.5" Male - Red is a lightweight gated wye designed to split a single 1.5" supply line into two independently controlled 1.5" discharge lines. Featuring individual shutoff valves on each outlet, this appliance allows firefighters to efficiently manage multiple hose lines while maintaining precise control of water flow during wildland firefighting, forestry, and water transfer operations.
Constructed from durable 6061-T cast aluminum, the WV15-RED combines lightweight handling with long-lasting performance in demanding field environments. Finished in a highly visible Fire Engine Red coating, this gated wye features smooth-operating polymer ball valves, front and rear valve seats, and full-port waterways that help reduce friction loss and maximize flow efficiency. Available in NST or NPSH thread configurations, this USA-made appliance meets or exceeds USDA Forest Service 5100 Series Specifications.
Features
• 1.5" female inlet with (2) 1.5" male outlets
• Individual gated outlets for independent flow control
• 6061-T cast aluminum construction
• Lightweight yet durable design
• Fire Engine Red finish for enhanced visibility
• Smooth-operating polymer ball valves
• Full-port valve design for maximum flow efficiency
• Front and rear valve seats stabilize valve operation
• Smooth waterways help reduce friction loss
• Available in NST (NH) or NPSH thread configurations
• Made in the USA
• Meets or exceeds USDA Forest Service 5100 Series Specifications
Specifications
• Manufacturer: C&S Supply
• Model: WV15-RED
• Product Type: Forestry Gated Wye Valve
• Inlet Connection: 1.5" Female Swivel NST (NH) or NPSH
• Outlet Connections: (2) 1.5" Male NST (NH) or NPSH
• Material: 6061-T Cast Aluminum
• Finish: Fire Engine Red
• Valve Type: Polymer Ball Valves
• Weight: 3.20 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Wildland Firefighting, Forestry Operations, and Water Flow Control
