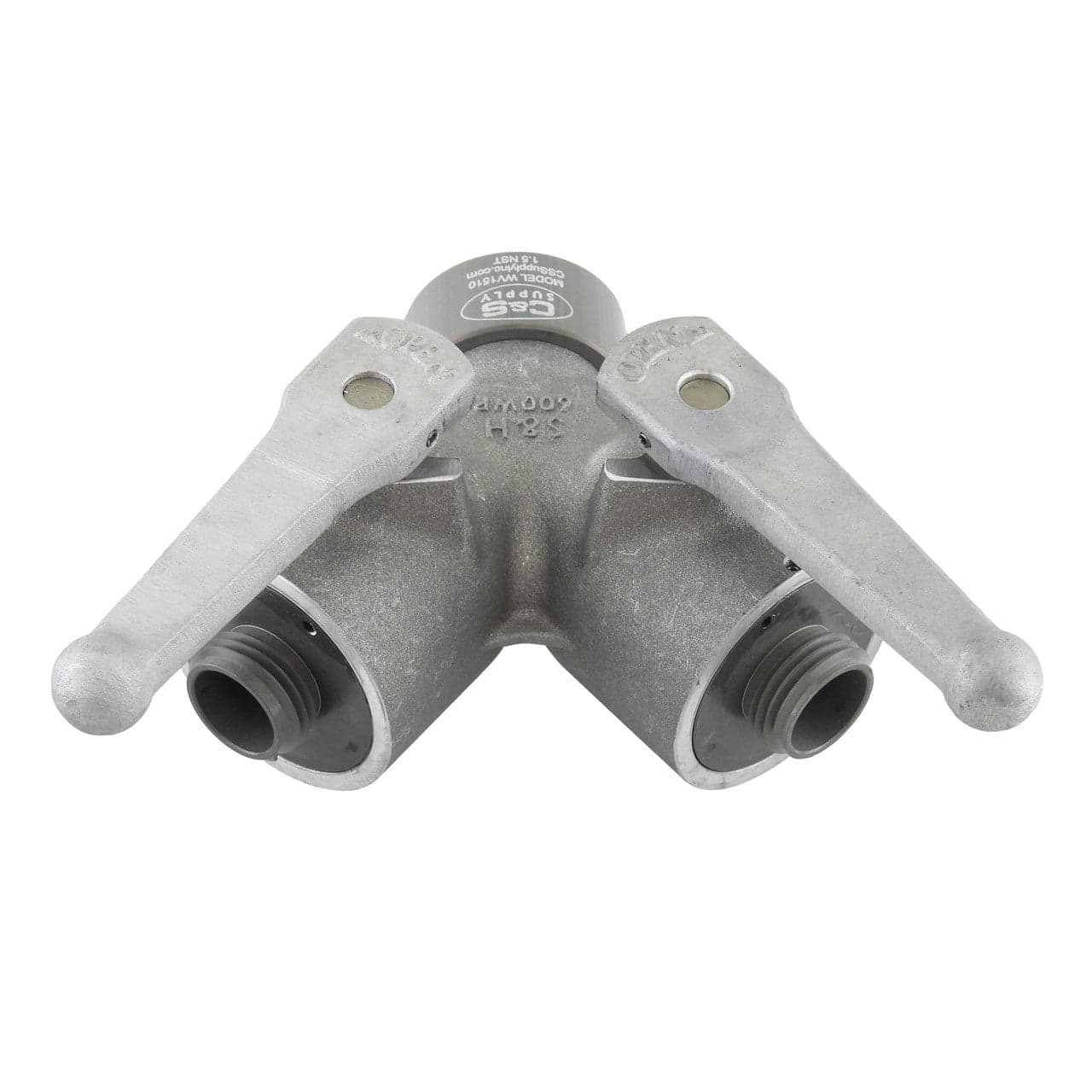

The C&S Supply Wye Valve 1.5" Female x (2) 1" Male is a lightweight gated wye designed to split a single 1.5" supply line into two independently controlled 1" discharge lines. Featuring individual shutoff valves on each outlet, this appliance allows firefighters to efficiently manage multiple hose lines while maintaining precise control of water flow during firefighting, forestry, and water transfer operations.
Constructed from durable 6061-T cast aluminum, the WV1510 is engineered to provide dependable performance while minimizing weight. Smooth-operating polymer ball valves, front and rear valve seats, and full-port waterways help reduce friction loss and maximize flow efficiency. Available with NST or NPSH thread configurations, this gated wye offers the versatility needed for a wide range of fire service and forestry applications. Proudly made in the USA and built to meet or exceed USDA Forest Service 5100 Series Specifications.
Features
• 1.5" female inlet with (2) 1" male outlets
• Individual gated outlets for independent flow control
• 6061-T cast aluminum construction
• Lightweight yet durable design
• Smooth-operating polymer ball valves
• Full-port valve design for maximum flow efficiency
• Front and rear valve seats stabilize valve operation
• Smooth waterways help reduce friction loss
• Available in NST (NH) or NPSH thread configurations
• Custom outlet configurations available
• Made in the USA
• Meets or exceeds USDA Forest Service 5100 Series Specifications
Specifications
• Manufacturer: C&S Supply
• Model: WV1510
• Product Type: Gated Wye Valve
• Inlet Connection: 1.5" Female Swivel NST (NH) or NPSH
• Outlet Connections: (2) 1" Male NST (NH) or NPSH
• Material: 6061-T Cast Aluminum
• Valve Type: Polymer Ball Valves
• Weight: 3.20 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Fire Hose Line Splitting and Water Flow Control
