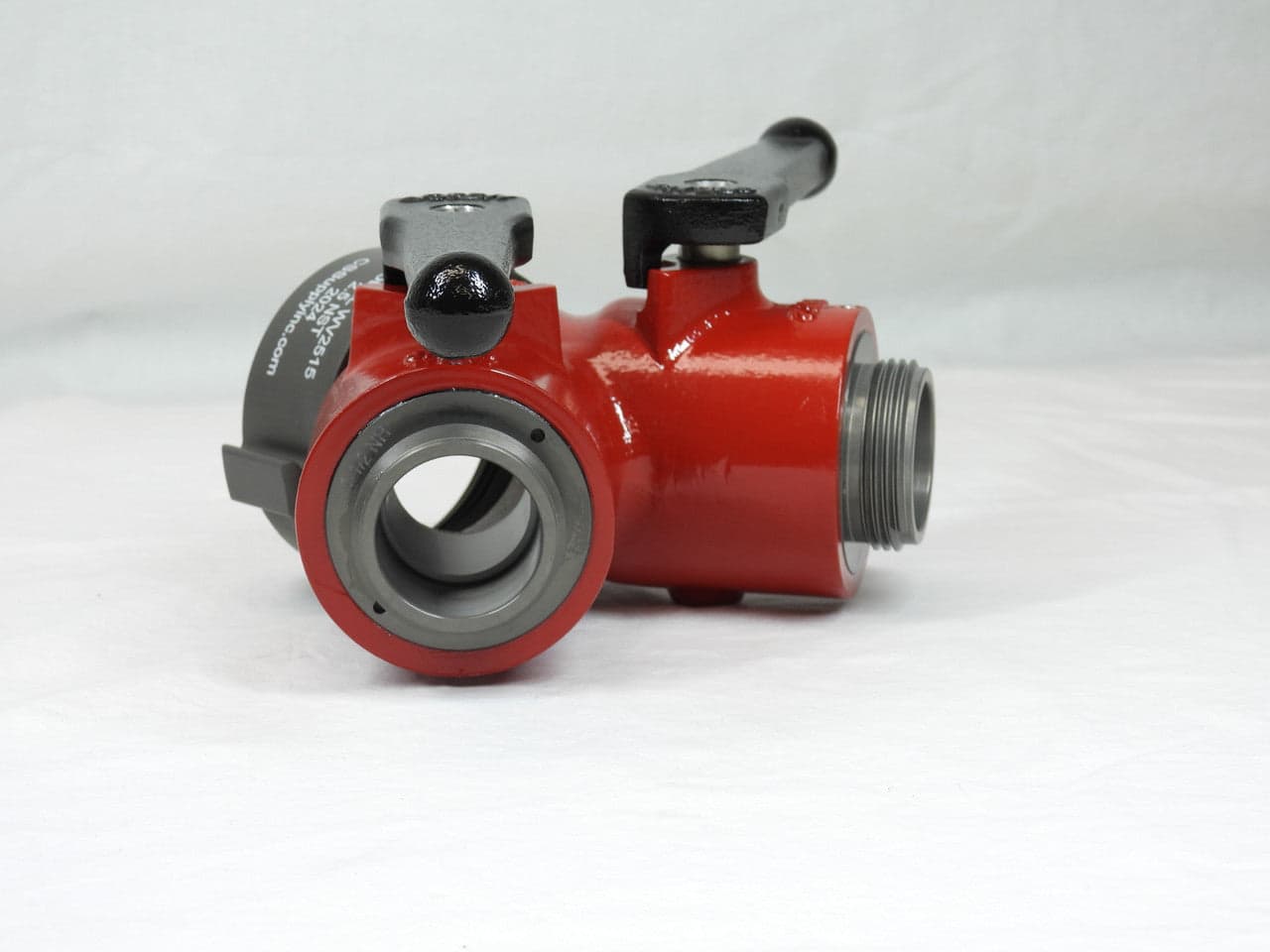

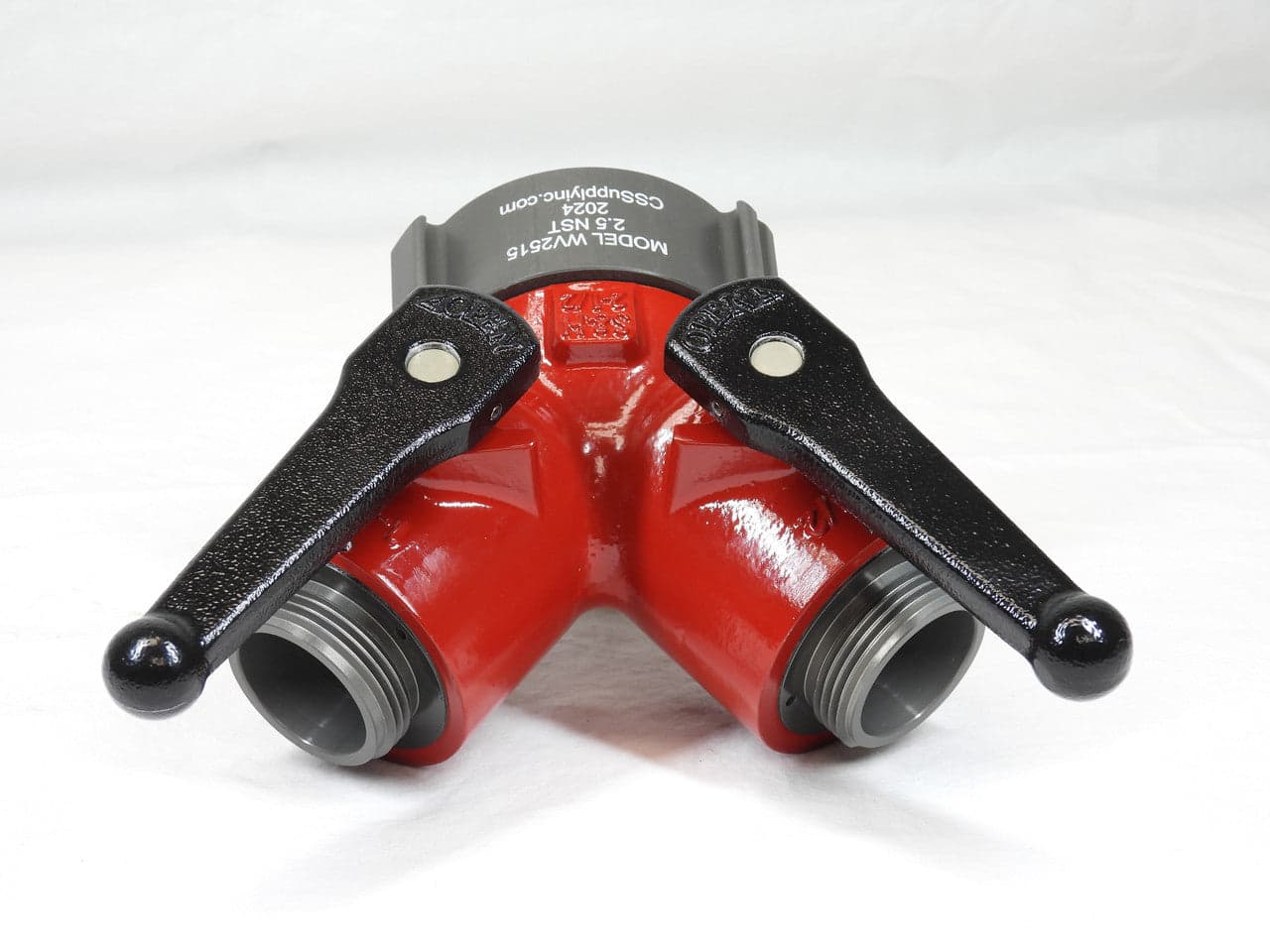

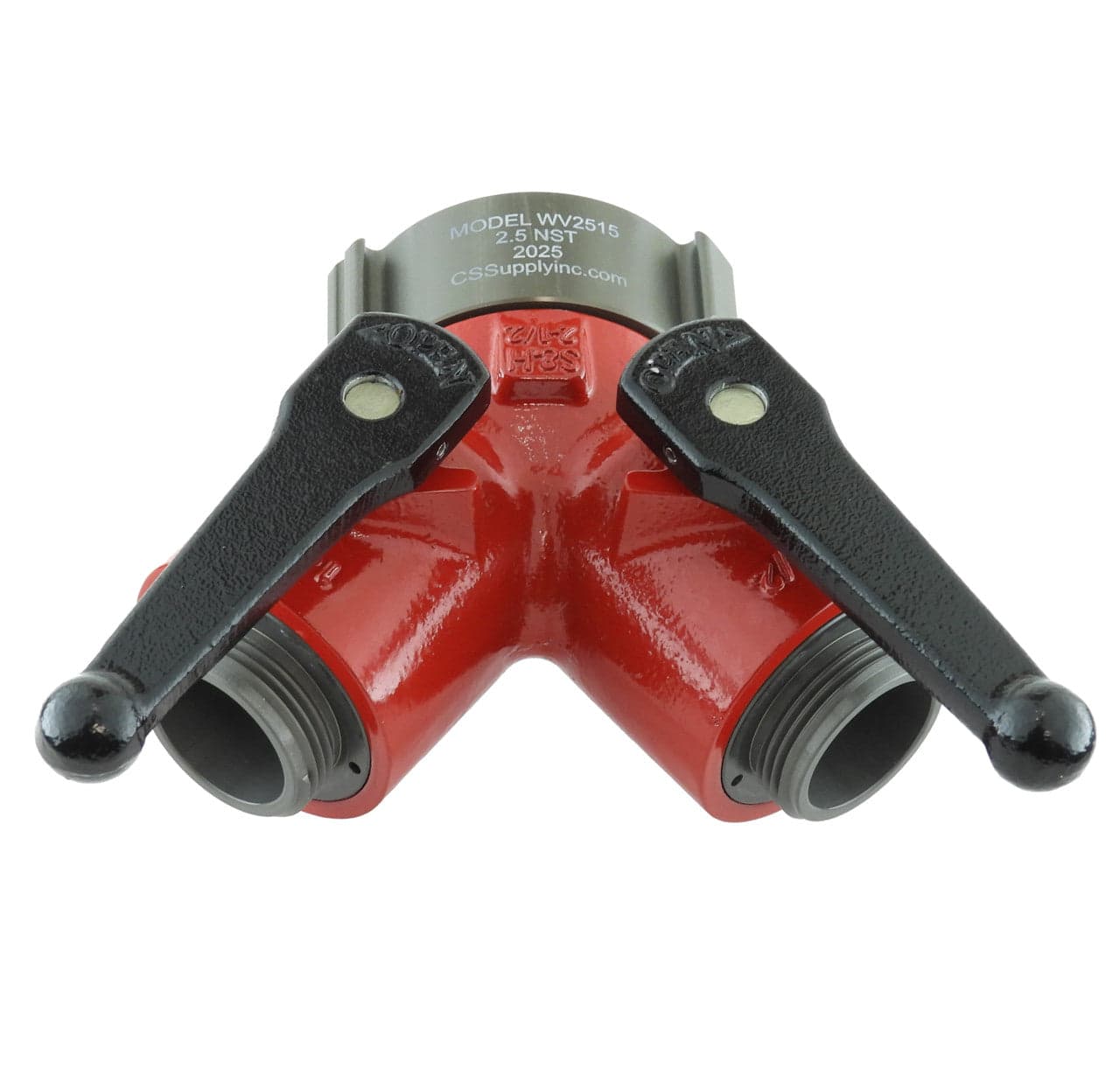

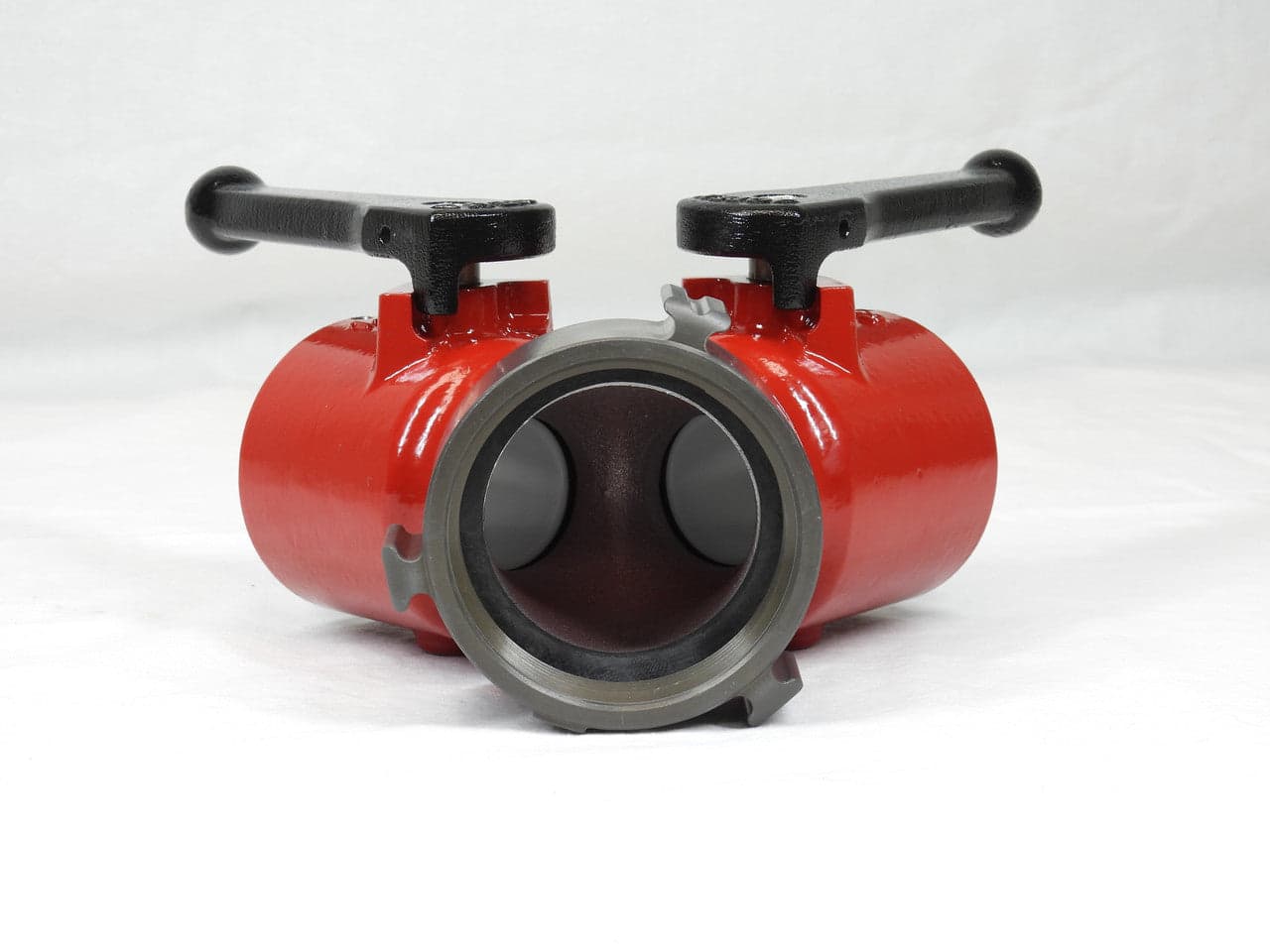

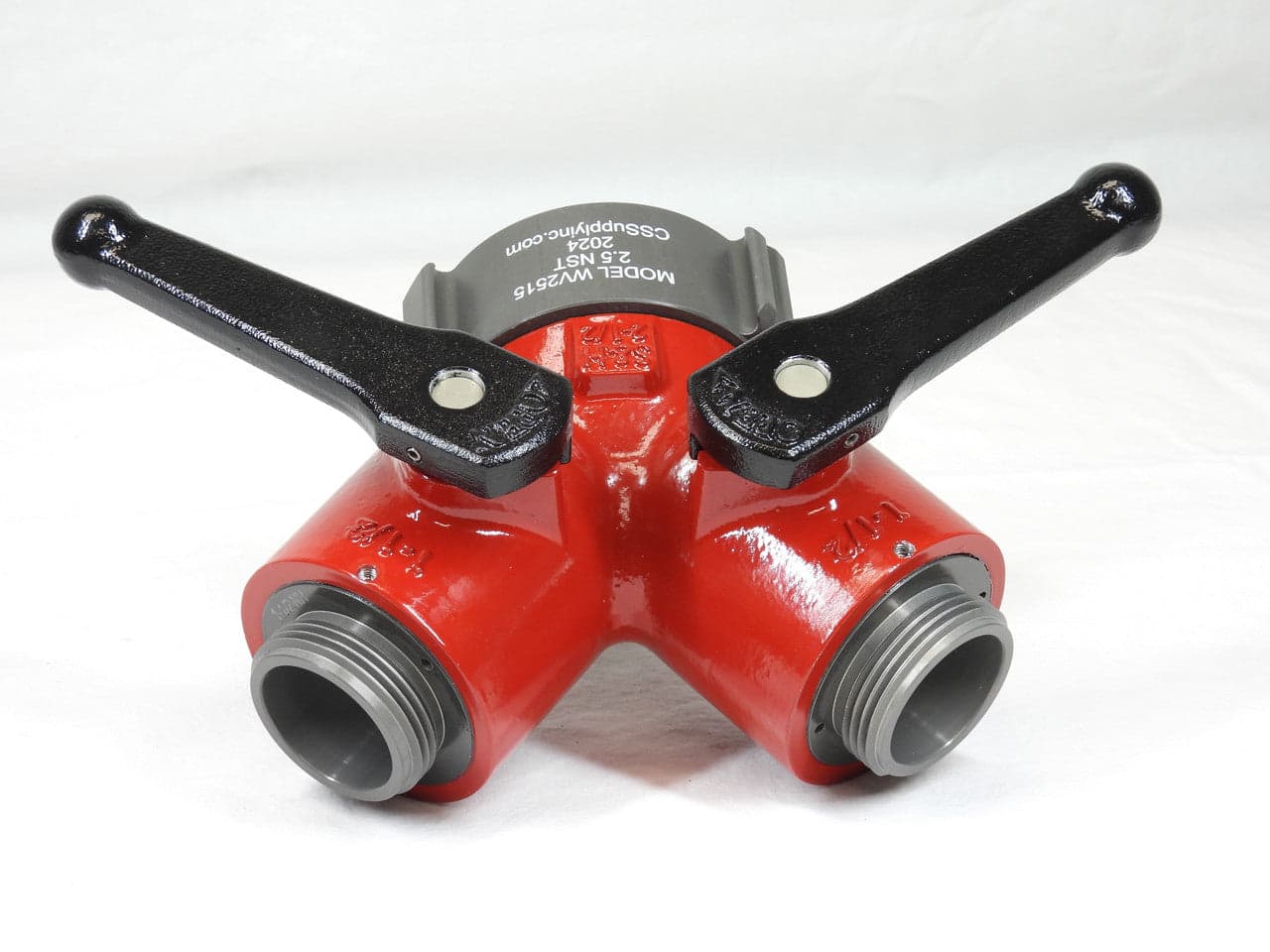

The C&S Supply Wye Valve 2.5" Female x (2) 1.5" Male is a lightweight gated wye designed to split a single 2.5" supply line into two independently controlled 1.5" discharge lines. Featuring individual shutoff valves on each outlet, this appliance allows firefighters to efficiently manage multiple attack lines while maintaining precise control of water flow during firefighting and water transfer operations.
Constructed from durable 6061-T cast aluminum, the WV2515 is built to provide reliable performance while minimizing weight. Smooth-operating polymer ball valves, front and rear valve seats, and full-port waterways help reduce friction loss and maximize flow efficiency. Proudly made in the USA, this gated wye meets or exceeds USDA Forest Service 5100 Series Specifications and is ideal for municipal, industrial, and wildland firefighting applications.
Features
• 2.5" female NST (NH) inlet
• (2) 1.5" male outlets
• Individual gated outlets for independent flow control
• 6061-T cast aluminum construction
• Lightweight yet durable design
• Full-port valve design for maximum flow efficiency
• Smooth waterways help reduce friction loss
• Front and rear seats stabilize valve operation
• Available with NST (NH) or NPSH outlet threads
• Made in the USA
• Meets or exceeds USDA Forest Service 5100 Series Specifications
Specifications
• Manufacturer: C&S Supply
• Model: WV2515
• Product Type: Gated Wye Valve
• Inlet Connection: 2.5" Female NST (NH) Swivel
• Outlet Connections: (2) 1.5" Male NST (NH) or NPSH
• Material: 6061-T Cast Aluminum
• Valve Type: Polymer Ball Valves
• Weight: 3.60 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Fire Hose Line Splitting and Water Flow Control
