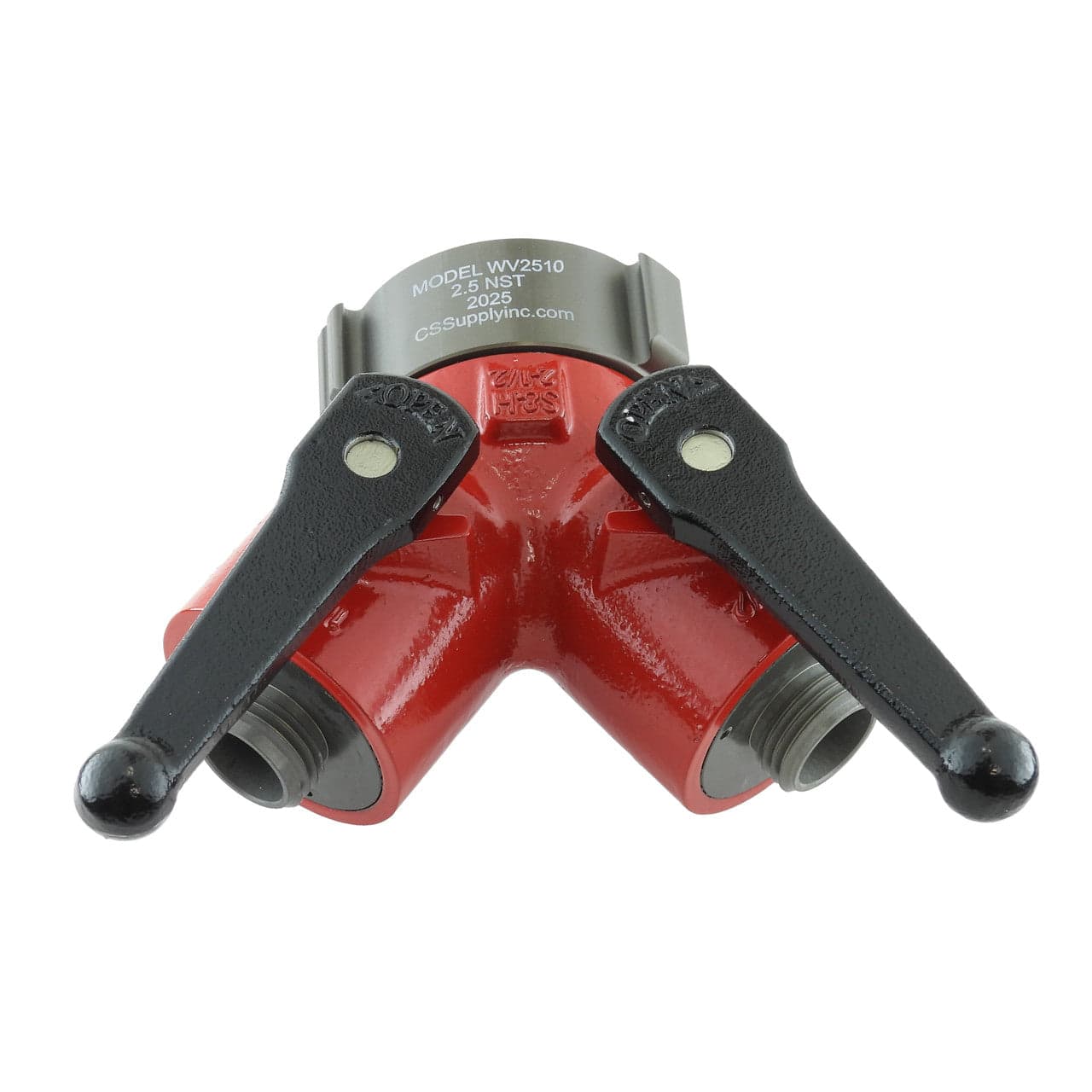

The C&S Supply Wye Valve 2.5" Female x (2) 1" Male is a lightweight gated wye designed to split a single 2.5" supply line into two independently controlled 1" discharge lines. Featuring individual shutoff valves on each outlet, this appliance allows firefighters to efficiently manage multiple hose lines while maintaining precise control of water flow during firefighting, forestry, and water transfer operations.
Constructed from durable 6061-T cast aluminum, the WV2510 is engineered to deliver dependable performance while minimizing weight. The valve body and handles are powder coated for enhanced durability, while smooth-operating polymer ball valves, front and rear seats, and full-port waterways help reduce friction loss and maximize flow efficiency. Proudly made in the USA, this gated wye meets or exceeds USDA Forest Service 5100 Series Specifications and is available in multiple thread configurations to meet a variety of operational needs.
Features
• 2.5" female inlet with (2) 1" male outlets
• Individual gated outlets for independent flow control
• 6061-T cast aluminum construction
• Lightweight yet durable design
• Powder-coated valve body and handles for added durability
• Smooth-operating polymer ball valves
• Full-port valve design for maximum flow efficiency
• Front and rear valve seats stabilize valve operation
• Smooth waterways help reduce friction loss
• Available in NST (NH) and NPSH thread configurations
• Custom outlet configurations available
• Made in the USA
• Meets or exceeds USDA Forest Service 5100 Series Specifications
Specifications
• Manufacturer: C&S Supply
• Model: WV2510
• Product Type: Gated Wye Valve
• Inlet Connection: 2.5" Female NST (NH) Swivel
• Outlet Connections: (2) 1" Male NST (NH) or NPSH
• Material: 6061-T Cast Aluminum
• Valve Type: Polymer Ball Valves
• Weight: 3.60 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Fire Hose Line Splitting and Water Flow Control
