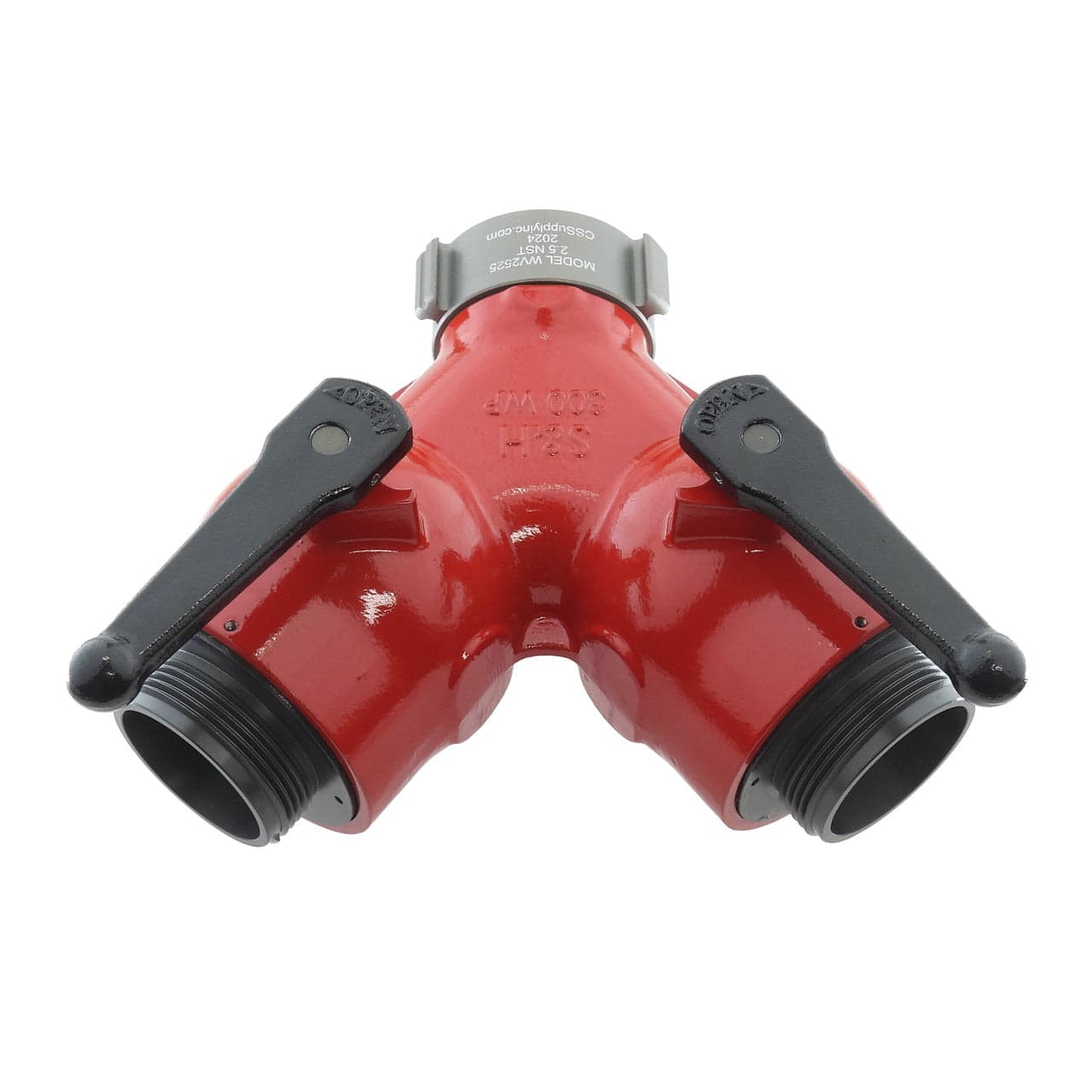

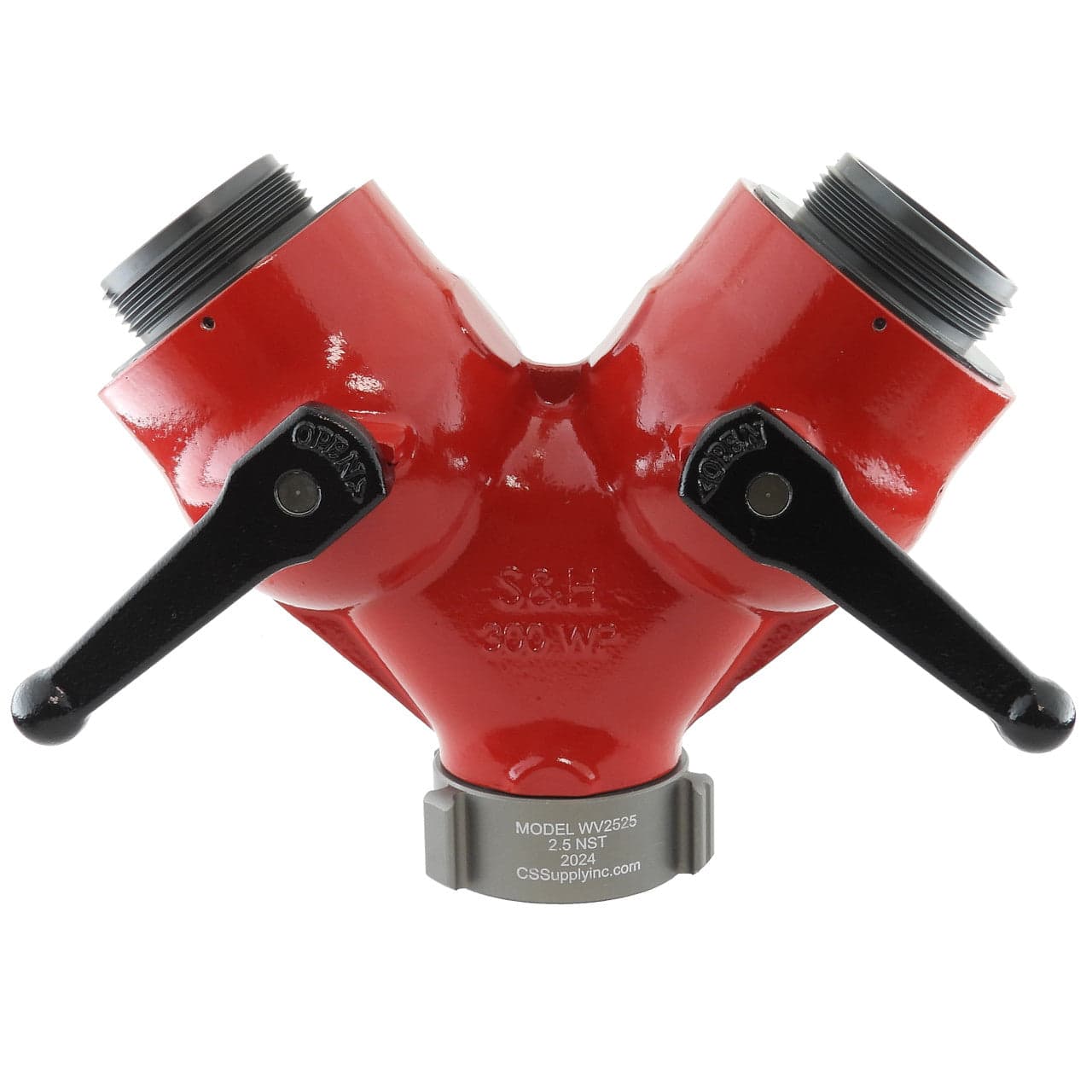

The C&S Supply Wye Valve 2.5" Female x (2) 2.5" Male is a heavy-duty gated wye designed to split a single 2.5" water supply line into two independently controlled 2.5" discharge lines. Featuring individual shutoff valves on each outlet, this appliance allows firefighters to manage multiple hose lines while maintaining precise control of water flow during firefighting and water transfer operations.
Constructed from lightweight 6061-T cast aluminum, the WV2525 is engineered for durability and dependable performance in demanding field conditions. The valve body and handles are powder coated for added protection, while smooth-operating polymer ball valves and front and rear seats create efficient waterways with reduced friction loss. Designed to meet or exceed USDA Forest Service 5100 Series Specifications, this gated wye is ideal for municipal, industrial, and wildland firefighting applications.
Features
• 2.5" female inlet with (2) 2.5" male outlets
• Individual gated outlets for independent flow control
• NST thread configuration only
• Lightweight 6061-T cast aluminum construction
• Powder-coated body and handles for enhanced durability
• Smooth-operating polymer ball valves
• Front and rear valve seats for stable operation
• Smooth waterways help reduce friction loss
• Meets or exceeds USDA Forest Service 5100 Series Specifications
• Designed for firefighting and water distribution applications
Specifications
• Manufacturer: C&S Supply
• Model: WV2525
• Product Type: Gated Wye Valve
• Inlet Connection: 2.5" Female NST (NH) Swivel
• Outlet Connections: (2) 2.5" Male NST (NH)
• Thread Type: NST Only
• Material: 6061-T Cast Aluminum
• Valve Type: Polymer Ball Valves
• Weight: 10.40 lbs
• Dimensions: 12" W x 12" H x 9" D
• Application: Fire Hose Line Splitting and Water Flow Control
