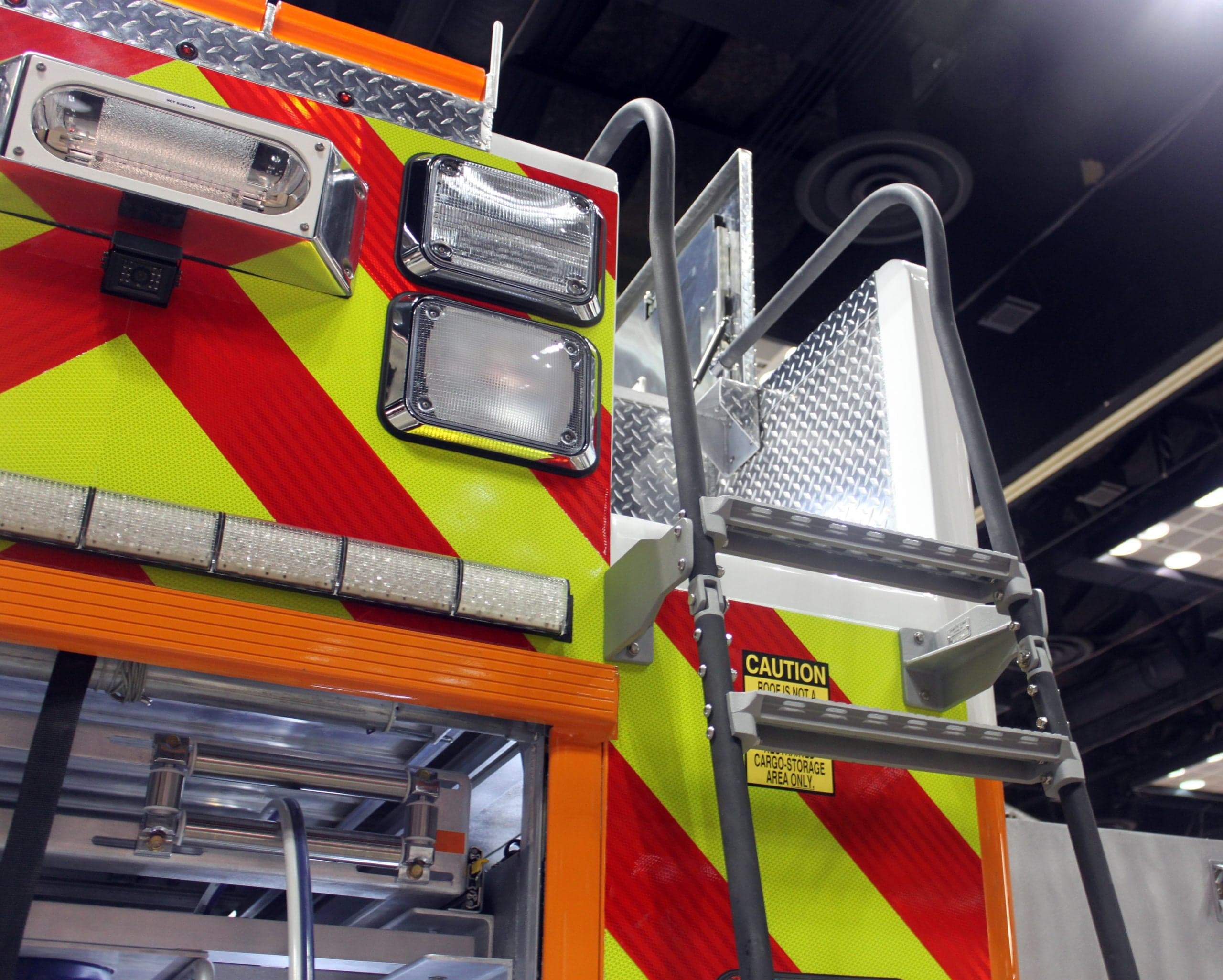

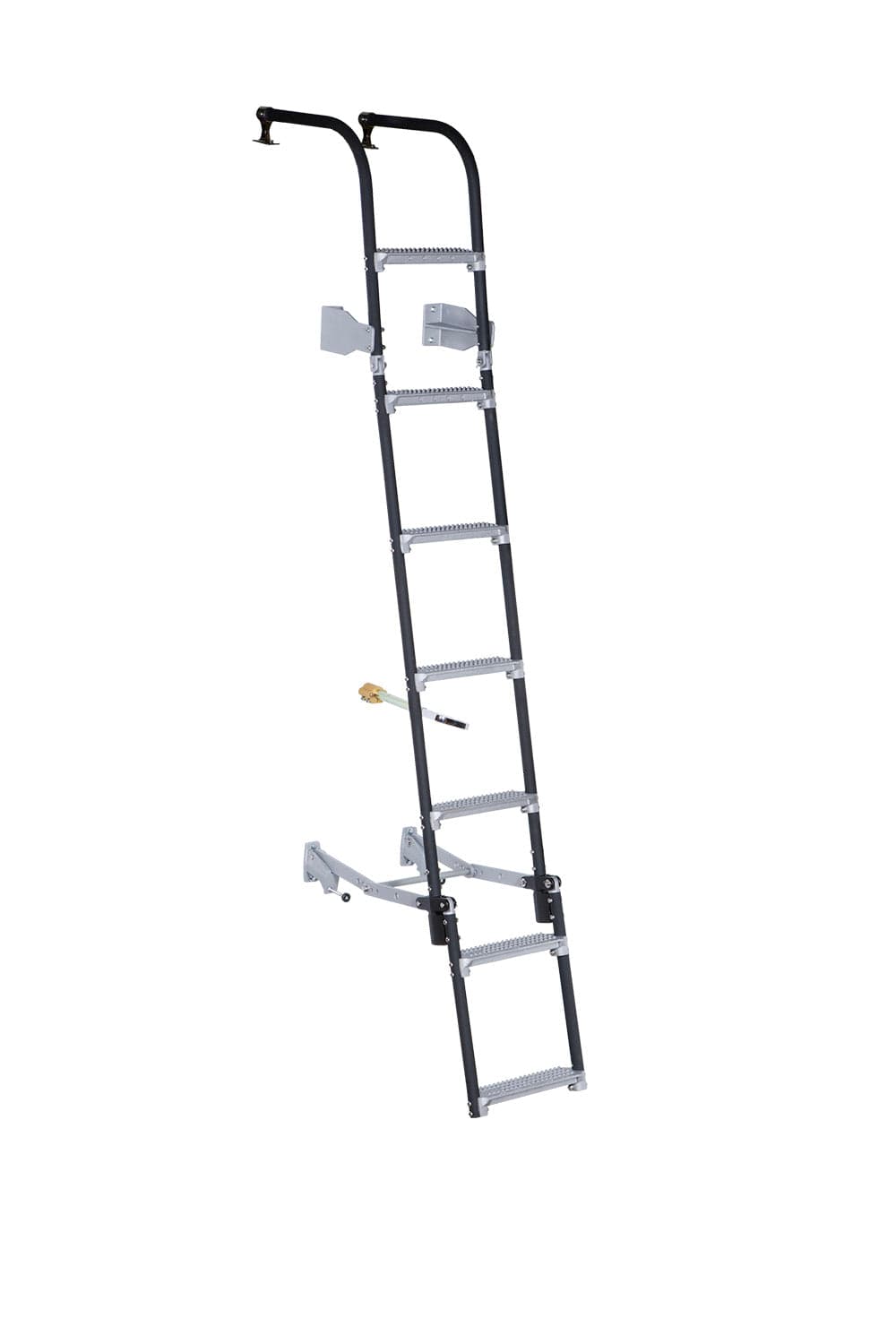

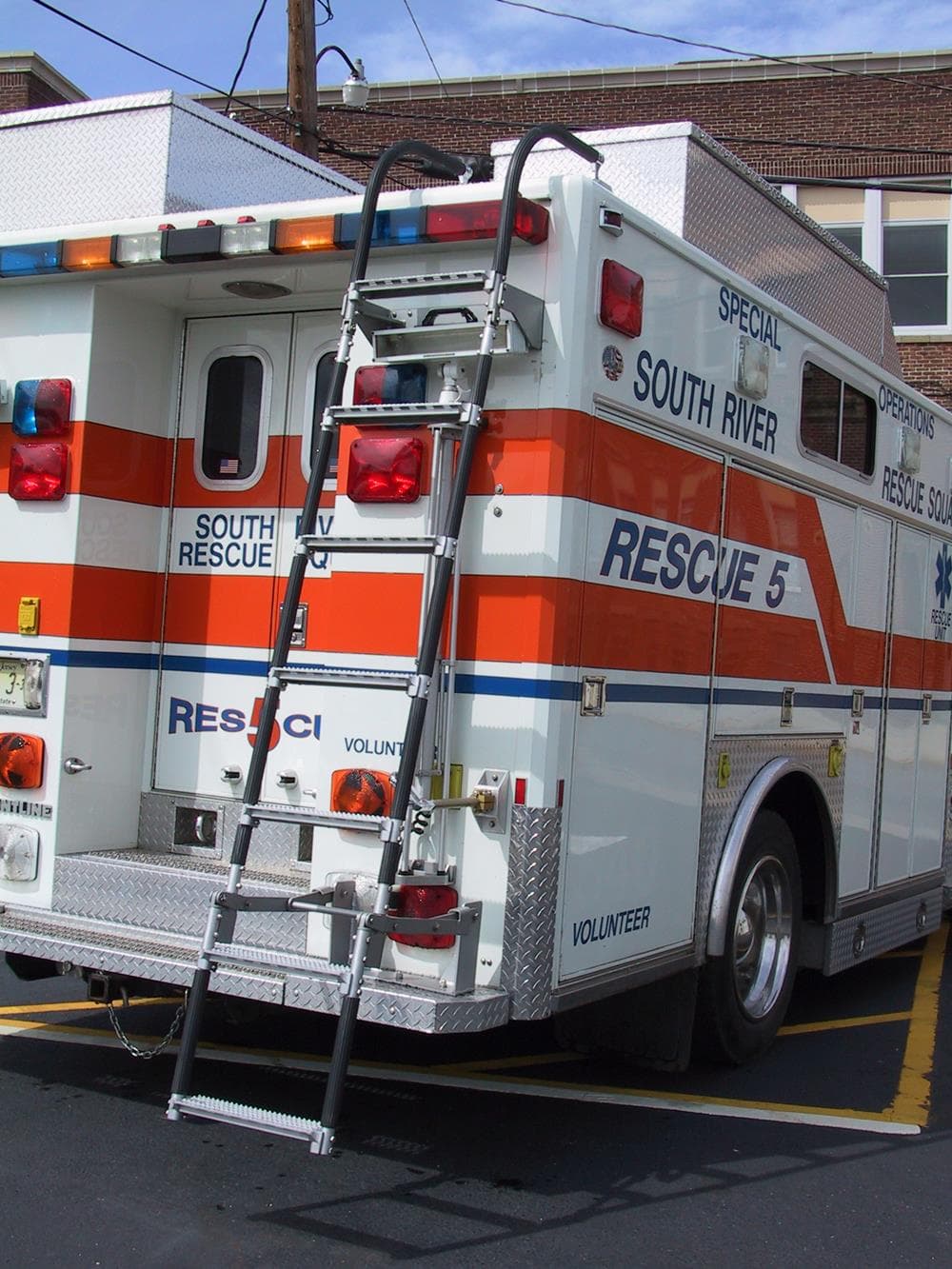

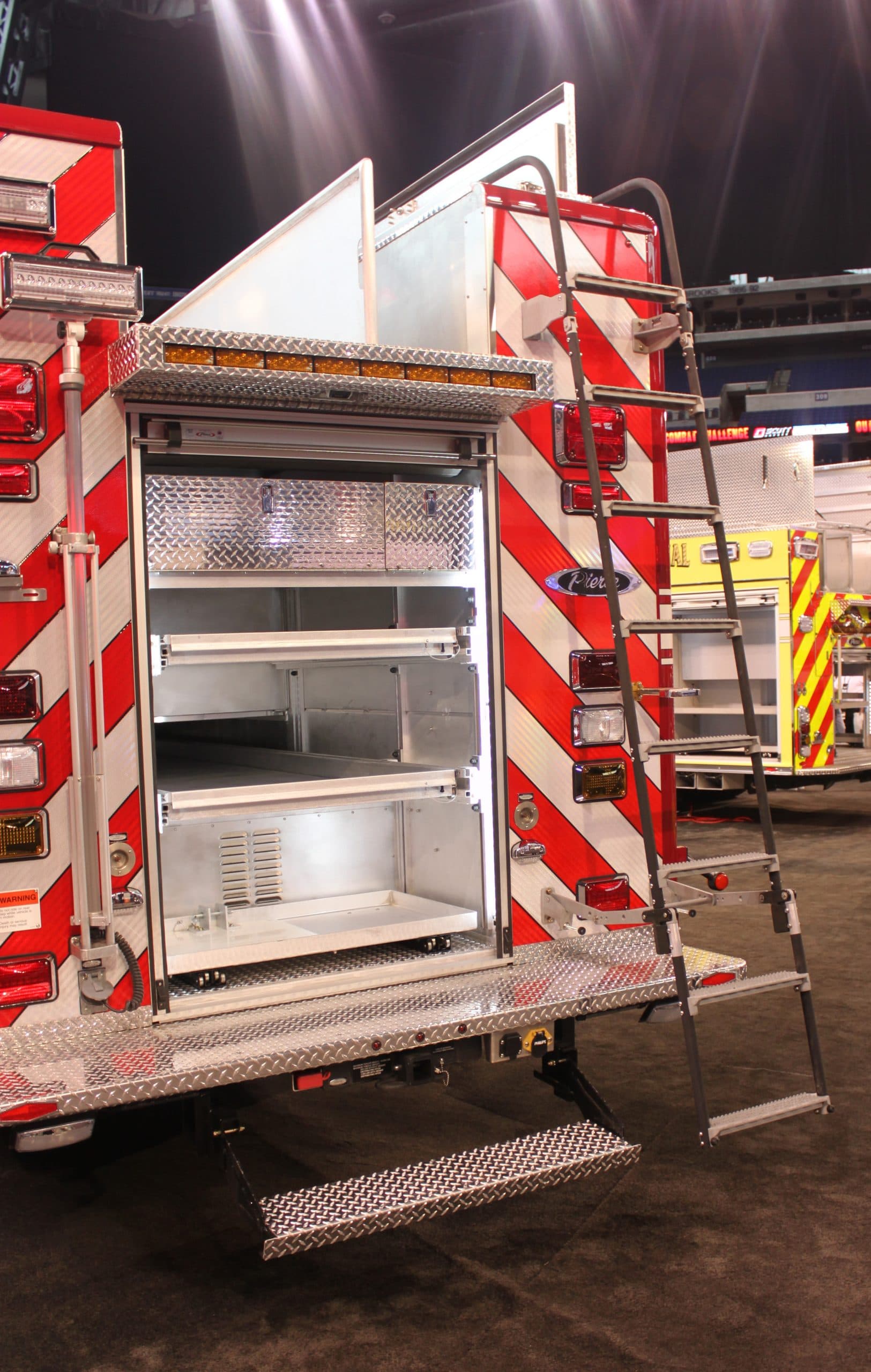

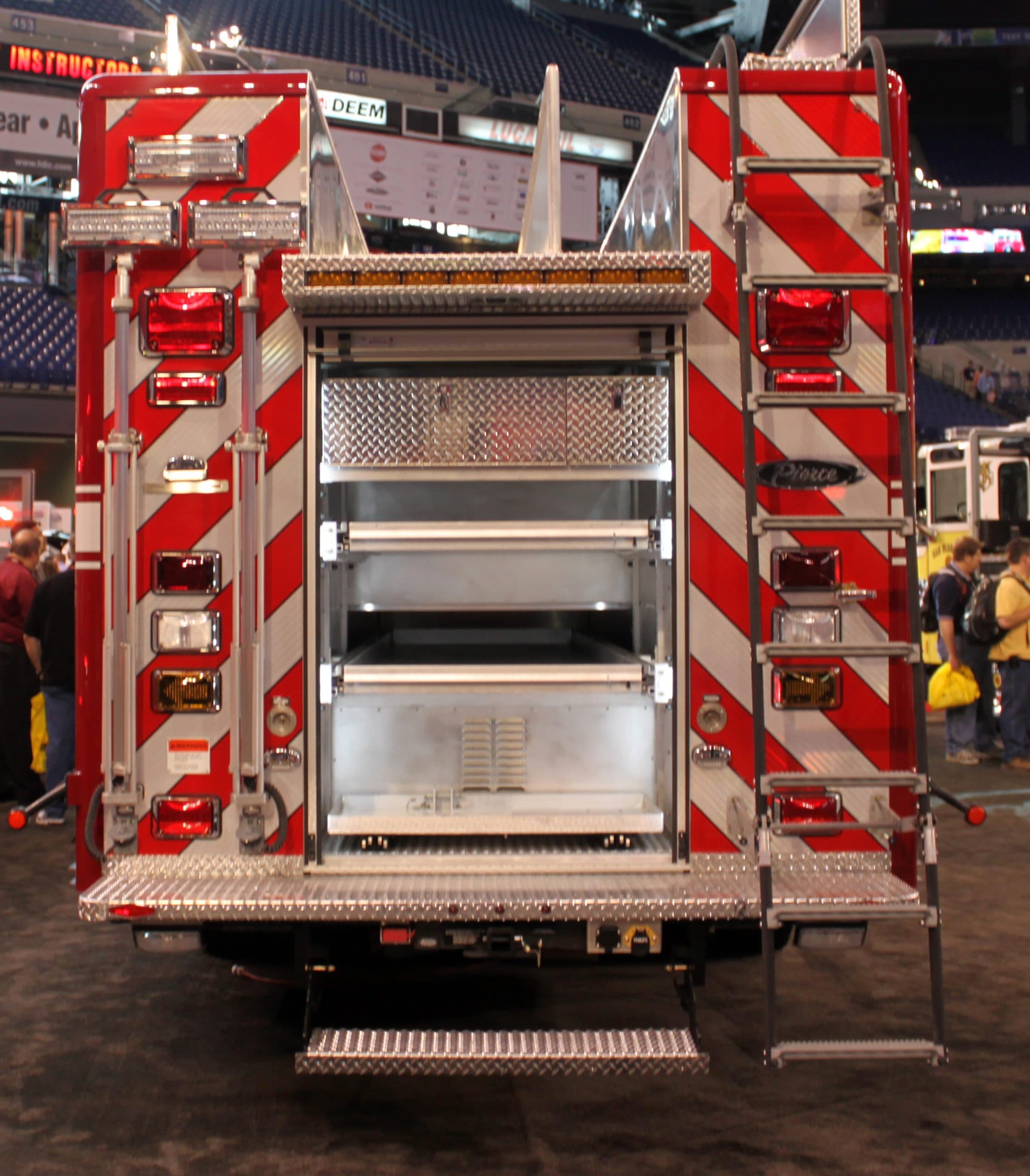

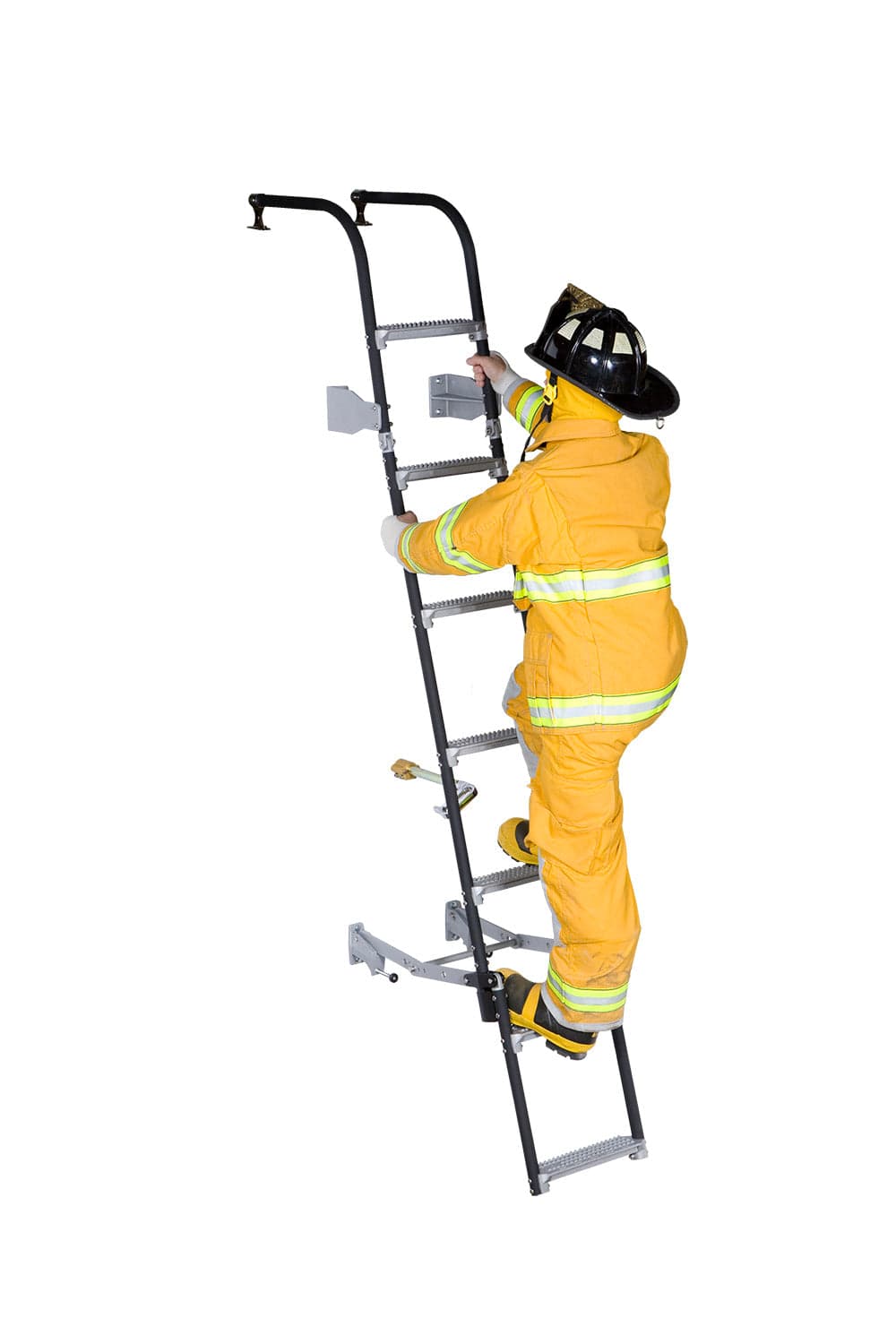

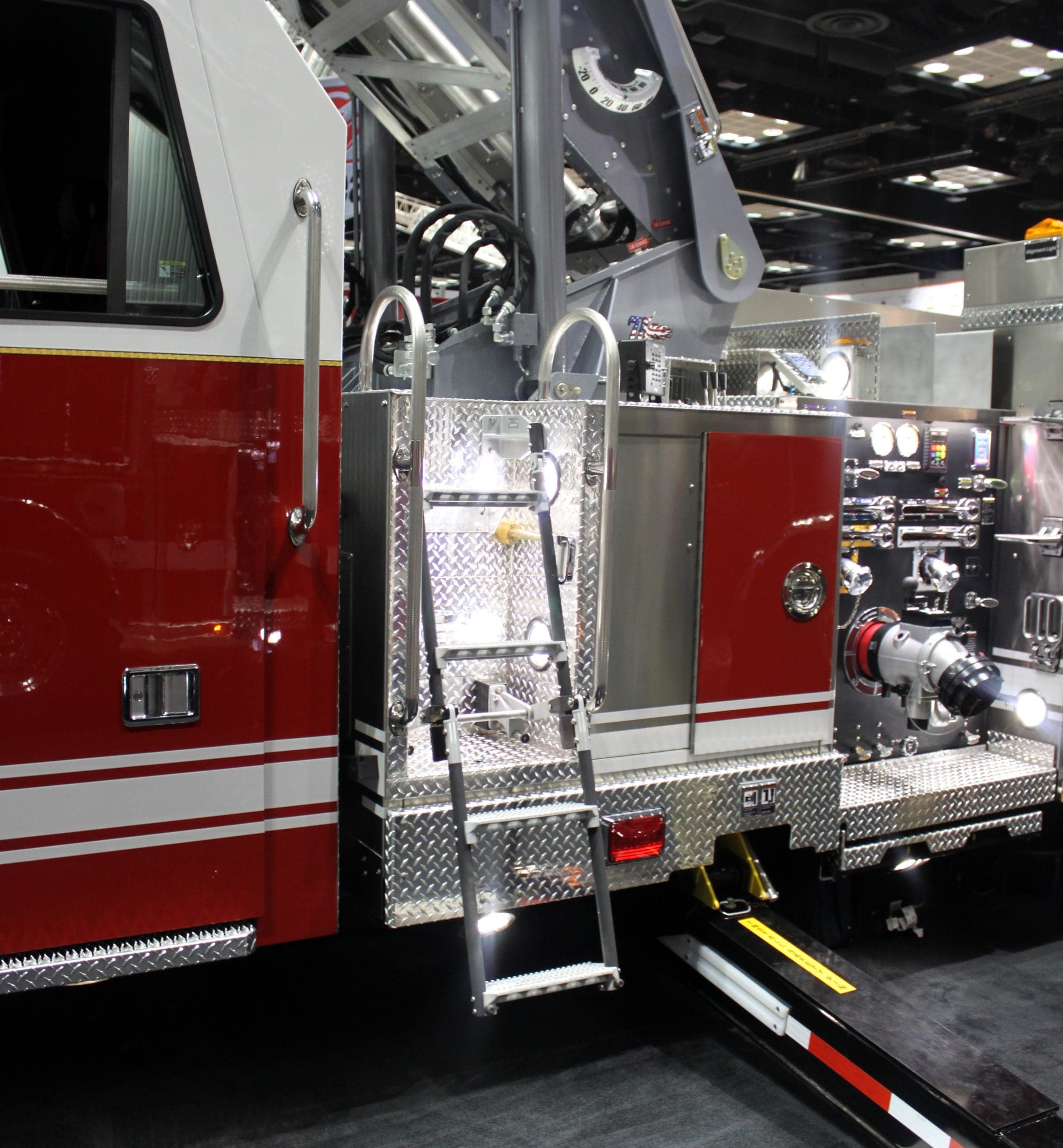

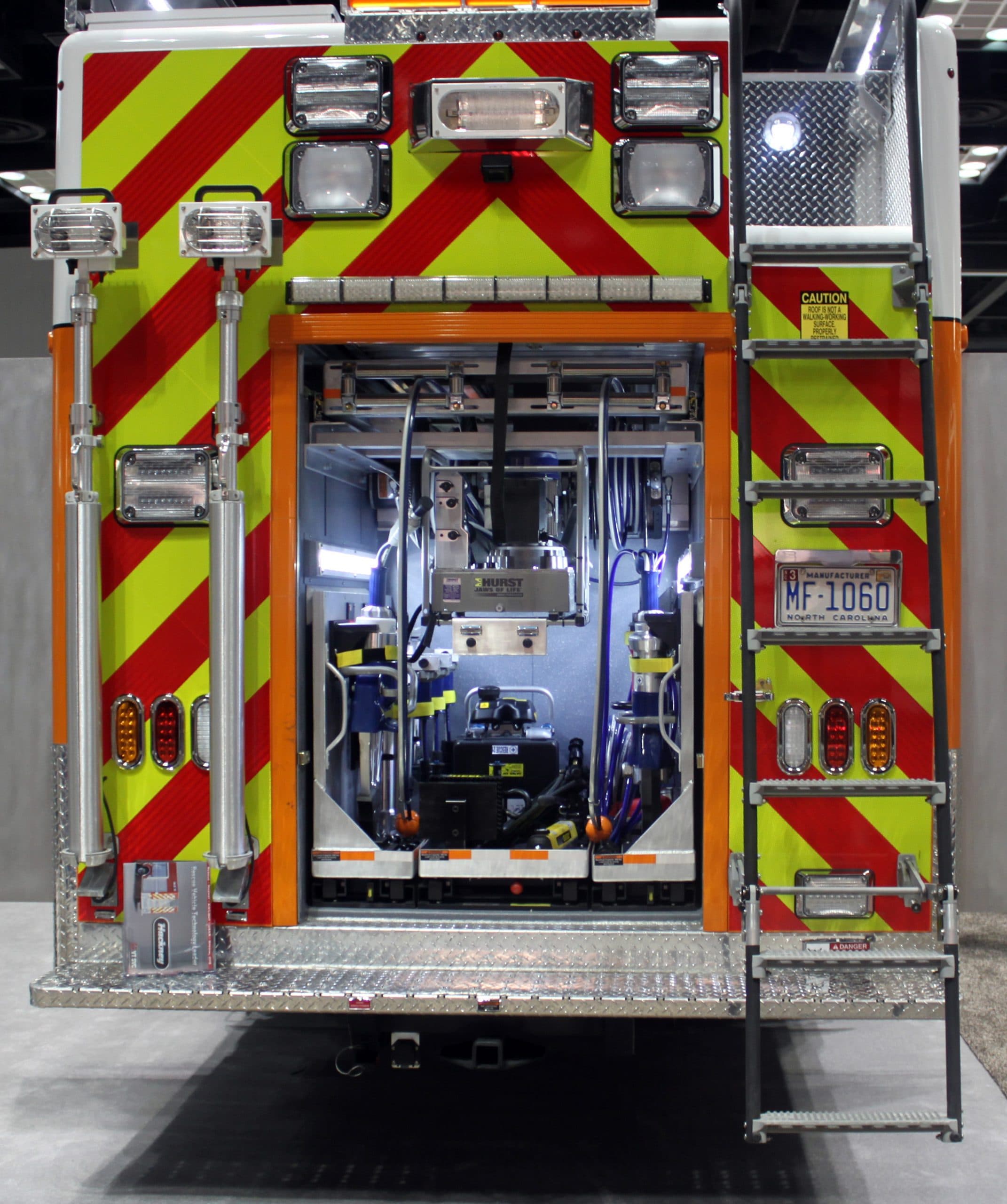

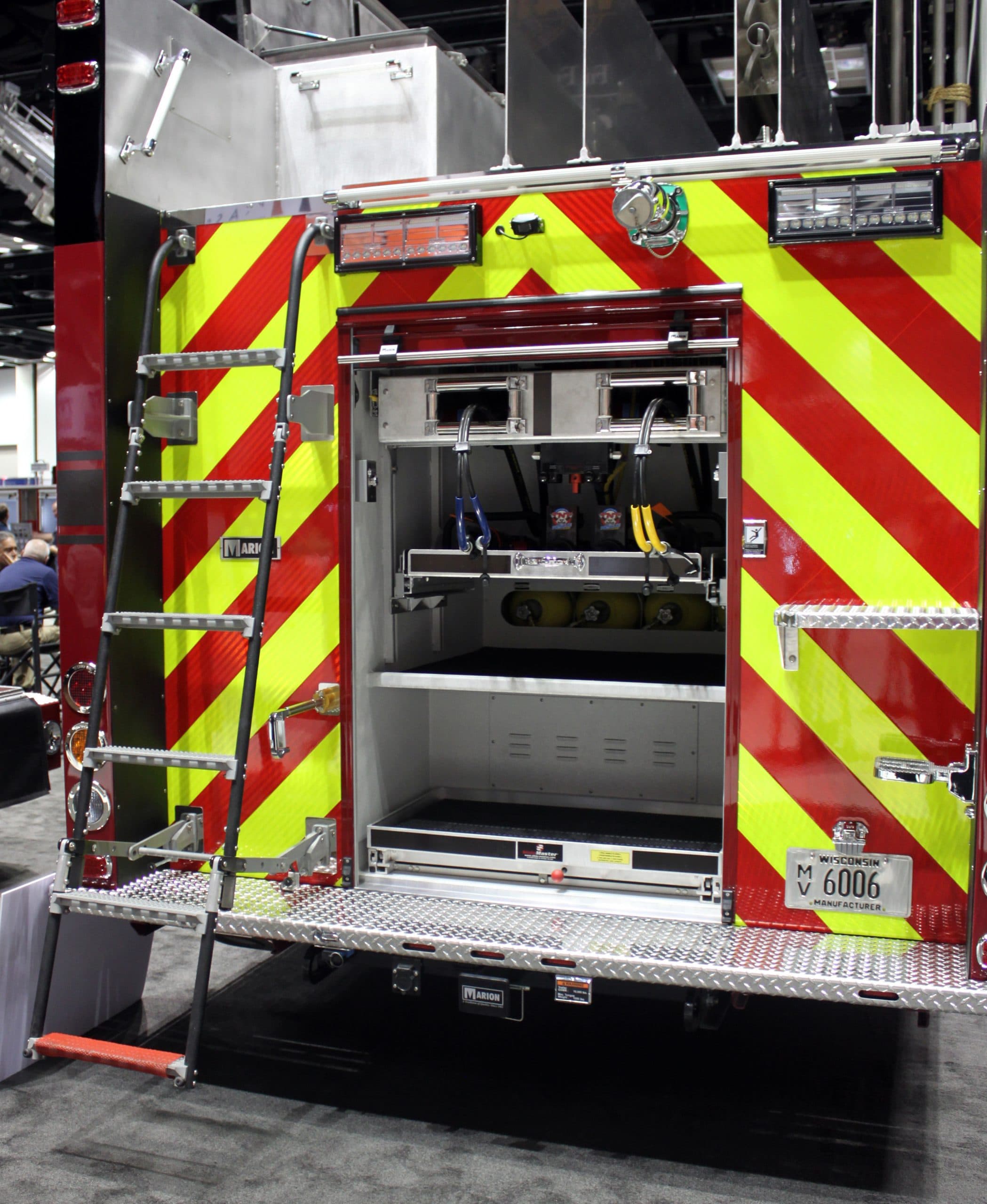

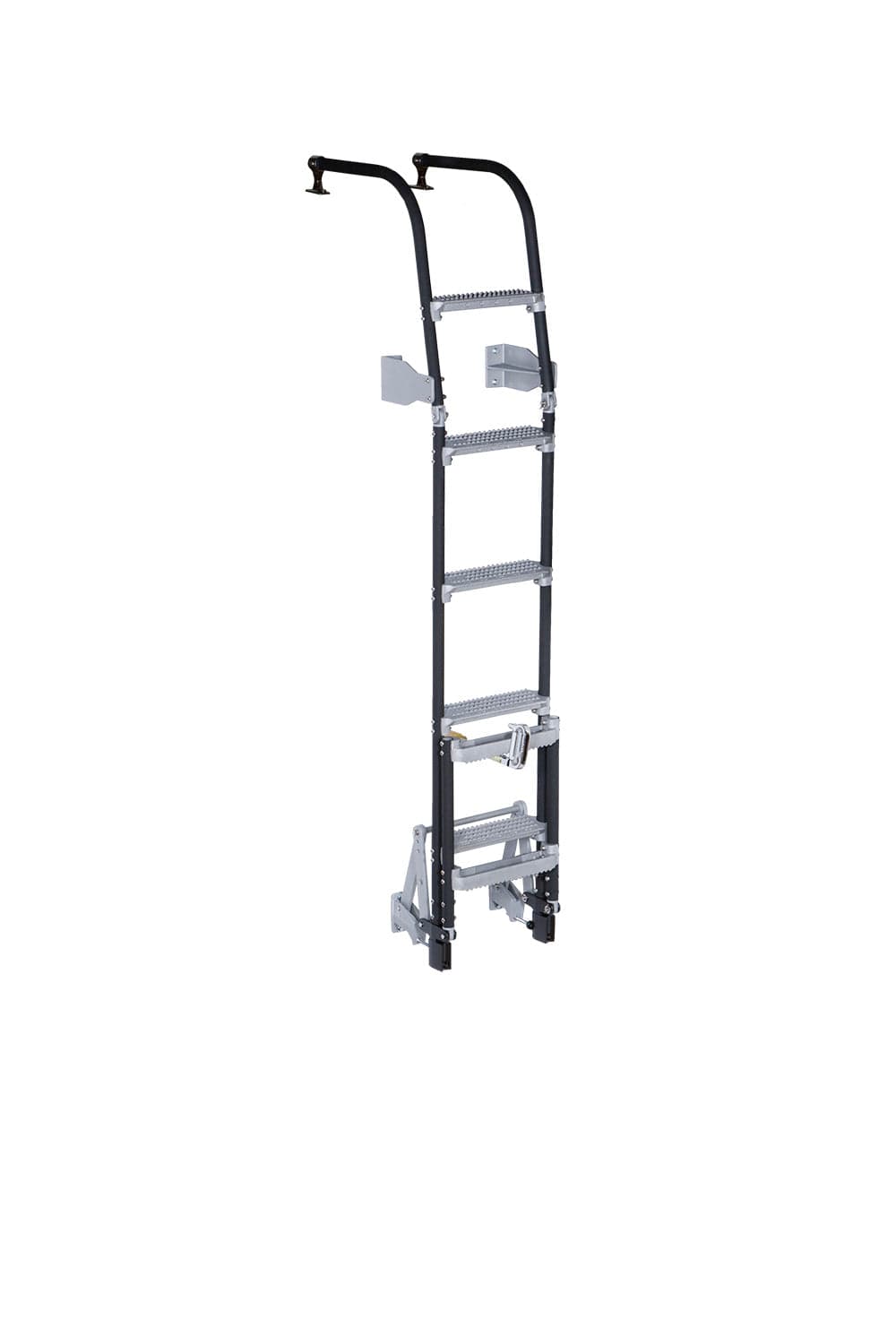

The 15" Width Swing Out & Down Vehicle Ladders provide safe and convenient access to elevated areas of fire apparatus while storing parallel to the apparatus body when not in use. Release the locking handle and pull the ladder outward to a comfortable climbing angle when needed. Once deployed, the ladder automatically latches and will not retract until the scissor lock is raised.
The ladder features 3" deep cast aluminum rungs with flat, non-skid stepping surfaces for dependable traction and safety. Handrails are constructed from 1-1/4" heavy-walled aluminum tubing and finished with a rough-grip black powder coat. Each ladder is custom-made to fit the apparatus and requires a rear-end dimensional drawing of the vehicle for proper design.
Features
• 15" wide swing out and down vehicle ladder
• Stores parallel to the apparatus body
• Pulls outward to a comfortable climbing angle
• Locking handle provides easy deployment
• Automatically latches when deployed
• Will not retract until the scissor lock is raised
• 3" deep cast aluminum rungs
• Flat, non-skid rung surfaces provide traction
• 1-1/4" heavy-walled aluminum handrails
• Rough-grip black powder-coated handrails
• Custom-made to fit individual apparatus
• Multiple straight and fold-down step configurations available
Specifications
• Manufacturer: Ziamatic
• Product Type: Swing Out & Down Vehicle Ladder
• Ladder Width: 15"
• Rung Material: Cast Aluminum
• Rung Depth: 3"
• Rung Surface: Flat, Non-Skid
• Handrail Material: Heavy-Walled Aluminum Tubing
• Handrail Diameter: 1-1/4"
• Handrail Finish: Rough-Grip Black Powder Coat
• Installation: Custom-Designed to Fit Apparatus
• Required for Design: Rear-End Dimensional Drawing of Vehicle
• RL15-1-3: One-Step Fold-Down and Three-Step Straight Section
• RL15-1-4: One-Step Fold-Down and Four-Step Straight Section
• RL15-1-5: One-Step Fold-Down and Five-Step Straight Section
• RL15-1-6: One-Step Fold-Down and Six-Step Straight Section
• RL15-1-7: One-Step Fold-Down and Seven-Step Straight Section
• RL15-1-8: One-Step Fold-Down and Eight-Step Straight Section
• RL15-2-2: Two-Step Fold-Down and Two-Step Straight Section
• RL15-2-3: Two-Step Fold-Down and Three-Step Straight Section
• RL15-2-4: Two-Step Fold-Down and Four-Step Straight Section
• RL15-2-5: Two-Step Fold-Down and Five-Step Straight Section
• RL15-2-6: Two-Step Fold-Down and Six-Step Straight Section
• RL15-2-7: Two-Step Fold-Down and Seven-Step Straight Section
