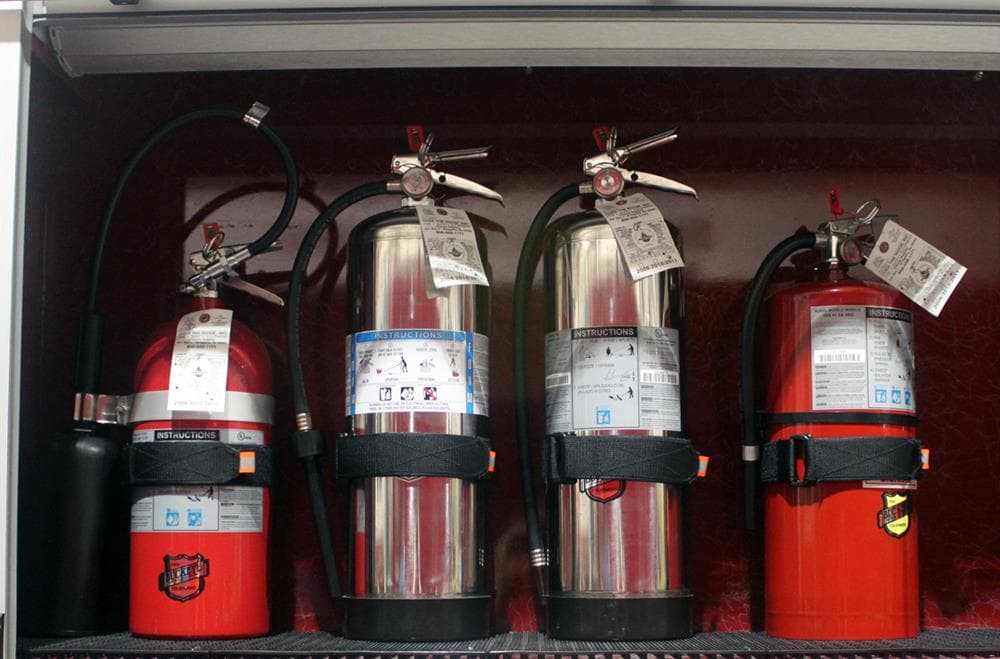

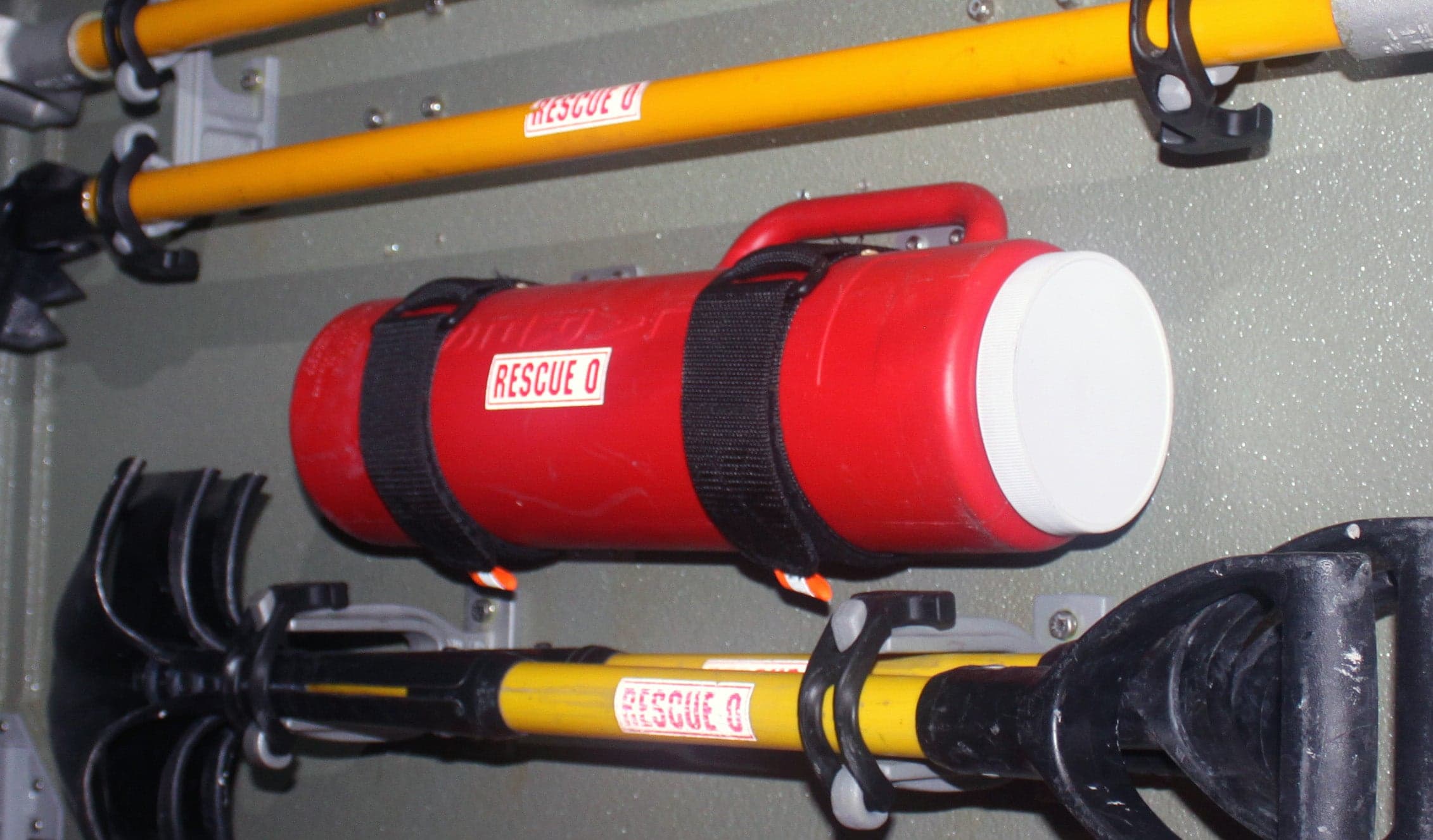

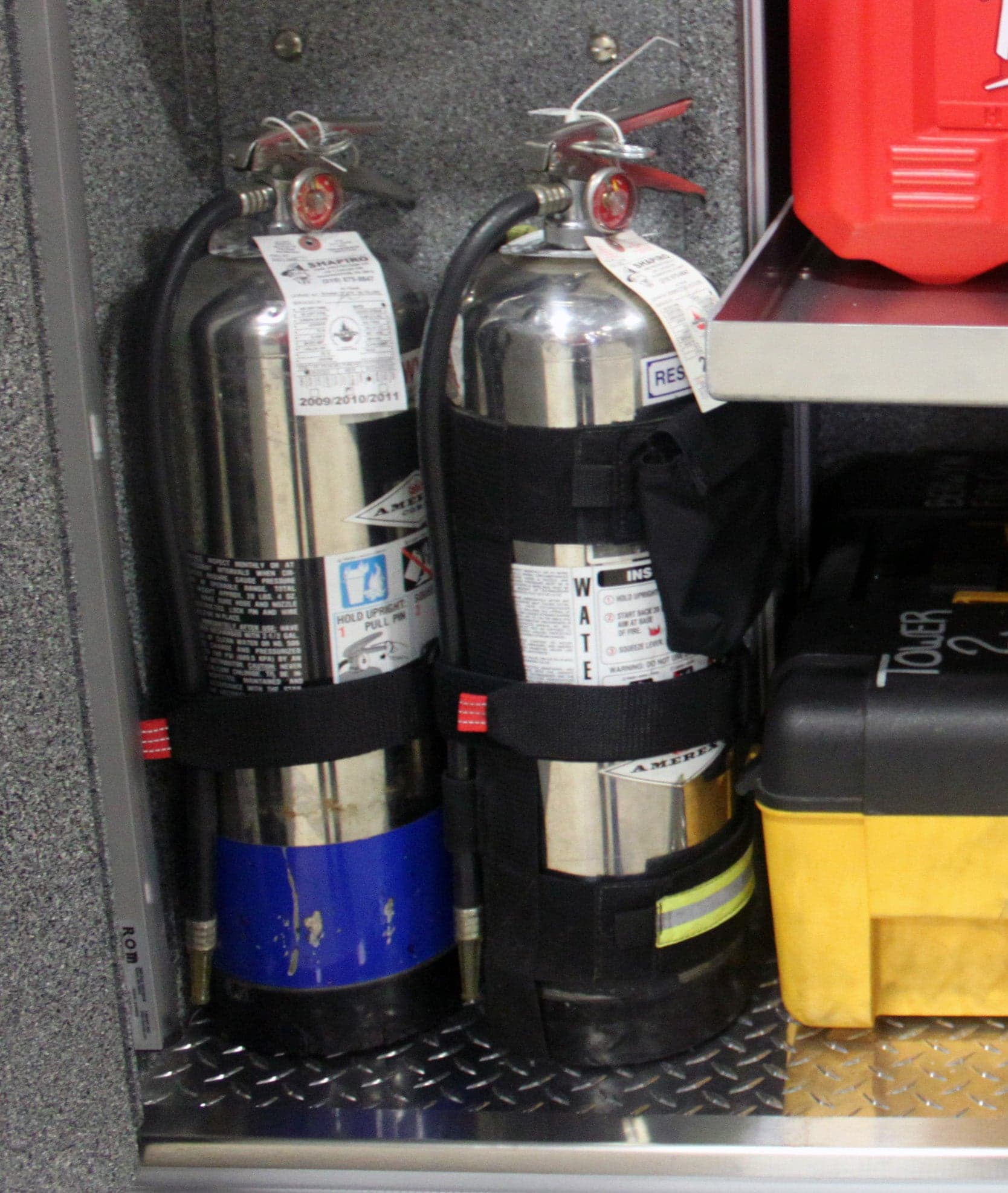

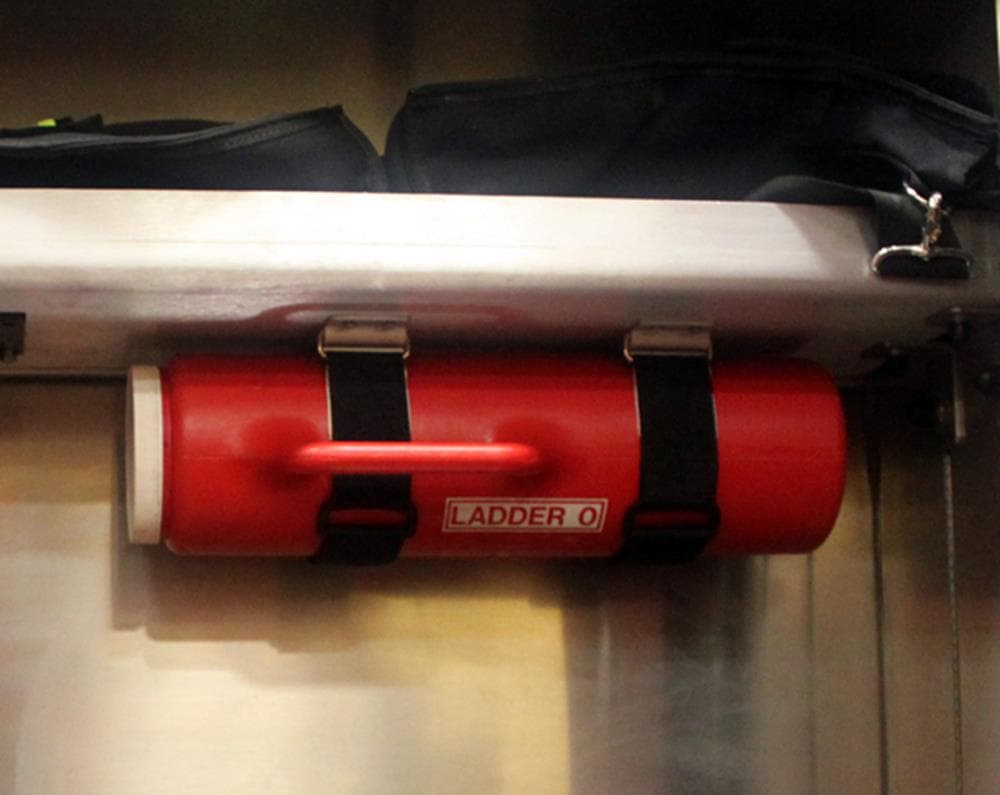

The Ziamatic Cylinder Mounting System is a cost-effective and versatile solution for securely mounting fire extinguishers, water cans, medical oxygen cylinders, SCBA and SCUBA cylinders, water coolers, flare containers, and other cylindrical equipment. Available in multiple sizes, the system provides dependable retention for a wide range of cylinder diameters and applications.

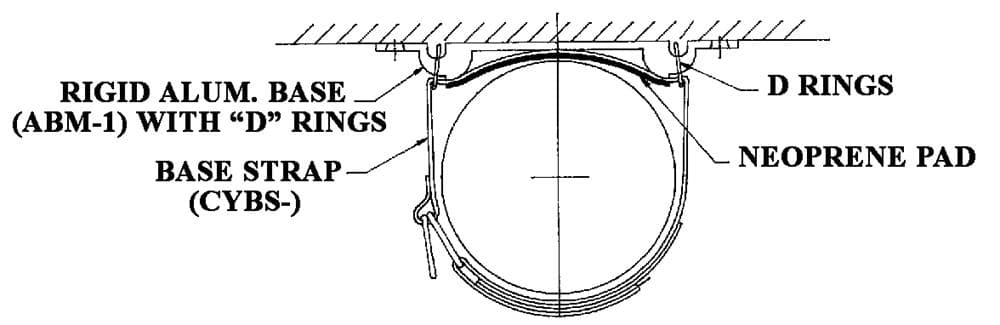

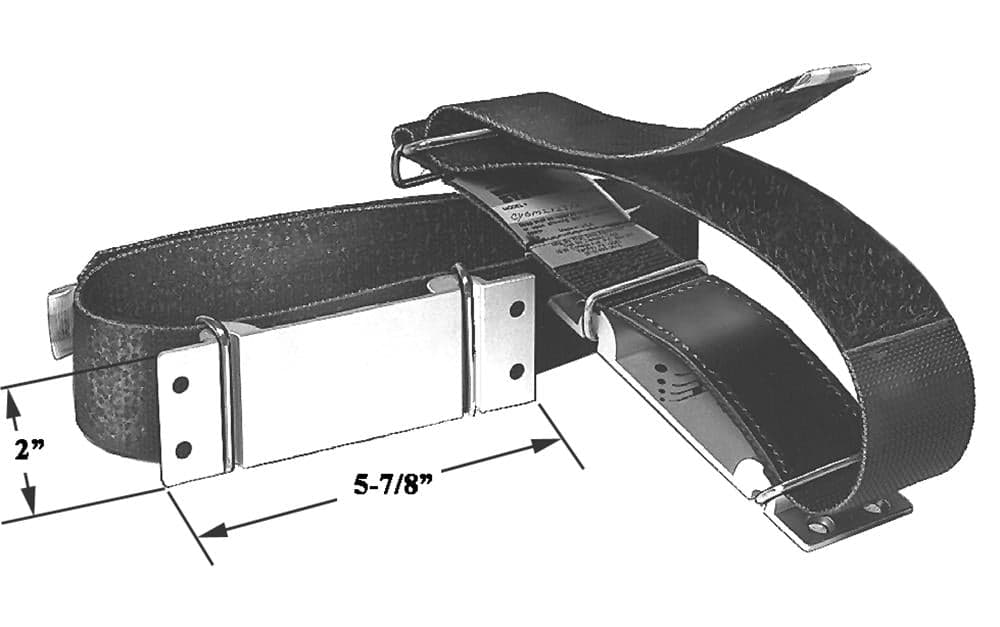

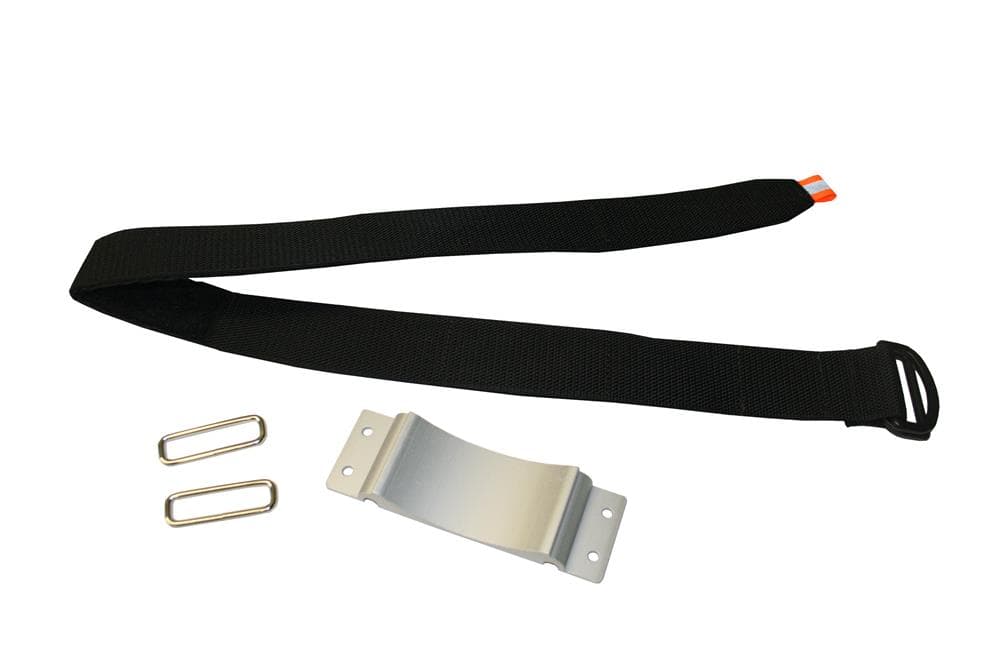

Each complete system includes one heavy-duty base strap and one aluminum base mount extrusion with "D" rings. The 2" wide all-weather nylon strap features a powerful hook-and-loop closure and doubles back through the "D" ring for increased holding strength. An integrated neoprene pad provides additional grip against the cylinder. One system will retain one cylinder when properly supported. Additional units are recommended for heavier, longer, or unsupported cylinders.
Features
• Complete cylinder mounting system
• Suitable for fire extinguishers, water cans, medical oxygen, SCBA, SCUBA, water coolers, flare containers, and other cylindrical equipment
• 2" wide heavy-duty, all-weather nylon strap
• Hook-and-loop closure provides strong equipment retention
• Strap doubles back through the "D" ring for increased holding power
• Neoprene pad provides maximum grip
• Includes aluminum base mount extrusion with "D" rings
• Suitable for use on land, sea, and air
• Cost-effective alternative to conventional mounting systems
• Available for cylinder diameters from 4" to 9"
• One complete system retains one properly supported cylinder

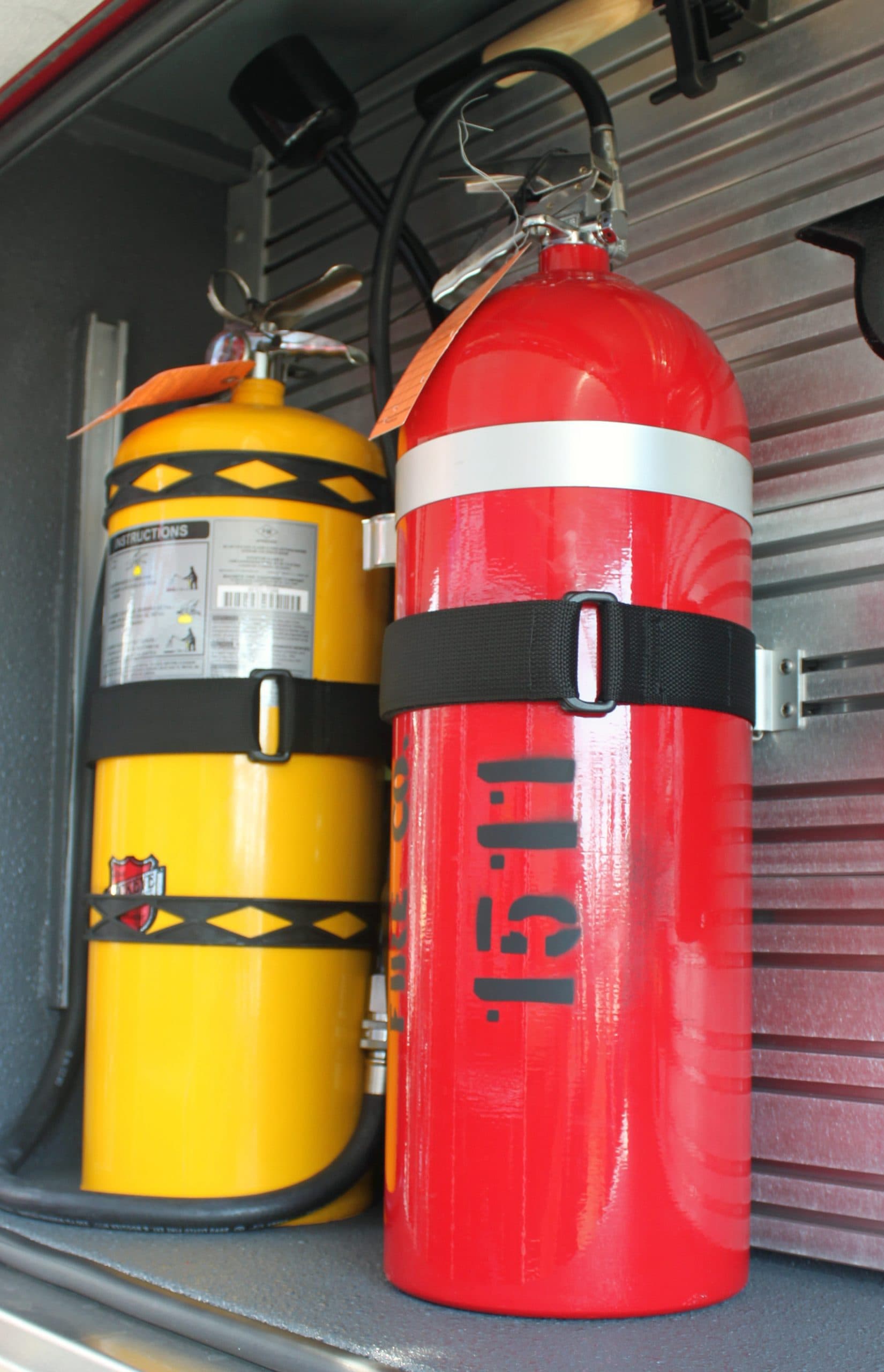

• Two units should be used when the cylinder base is unsupported, weighs more than 50 lbs., or exceeds 3' in length
• Three units are recommended when the cylinder weighs more than 100 lbs. or exceeds 4' in length
Specifications
• Manufacturer: Ziamatic
• Product Type: Cylinder Mounting System
• Strap Material: Heavy-Duty All-Weather Nylon
• Strap Width: 2"
• Closure: Hook & Loop
• Grip Pad: Neoprene
• Base Mount: Aluminum Base Mount Extrusion with "D" Rings
• Base Strap Included: Yes
• Base Mount Included: Yes
• CYBM-1213-40-11: 4" Diameter / 12"–13" Circumference
• CYBM-1315-45-11: 4-1/2" Diameter / 13"–15" Circumference
• CYBM-1516-50-11: 5" Diameter / 15"–16" Circumference
• CYBM-1618-55-11: 5-1/2" Diameter / 16"–18" Circumference
• CYBM-1820-60-11: 6" Diameter / 18"–20" Circumference
• CYBM-2123-70-11: 7" Diameter / 21"–23" Circumference
• CYBM-2426-80-11: 8" Diameter / 24"–26" Circumference
• CYBM-2627-85-11: 8-1/2" Diameter / 26"–27" Circumference
• CYBM-2729-90-11: 9" Diameter / 27"–29" Circumference
