The Double Horizontal Variable Mount - 1" to 1.3" is a heavy-duty, adjustable tool mounting solution designed to securely hold tools and equipment ranging from 1" to 1.3" in diameter. Featuring a slotted mounting base, the bracket provides greater flexibility when planning apparatus compartment and tool board layouts.
The slotted design simplifies installation, particularly on standard 1" x 1" grid tool boards, and allows equipment to be positioned diagonally to maximize available storage space. Flexible, UV-stabilized draw latches accommodate varying tool diameters while holding equipment firmly in place. Powder-coated cast aluminum construction provides rugged durability without the cracking, breaking, or pulling away that can occur with some plastic or vinyl mounting solutions.
Features
• Designed for tools and equipment from 1" to 1.3" in diameter
• Double horizontal mounting configuration

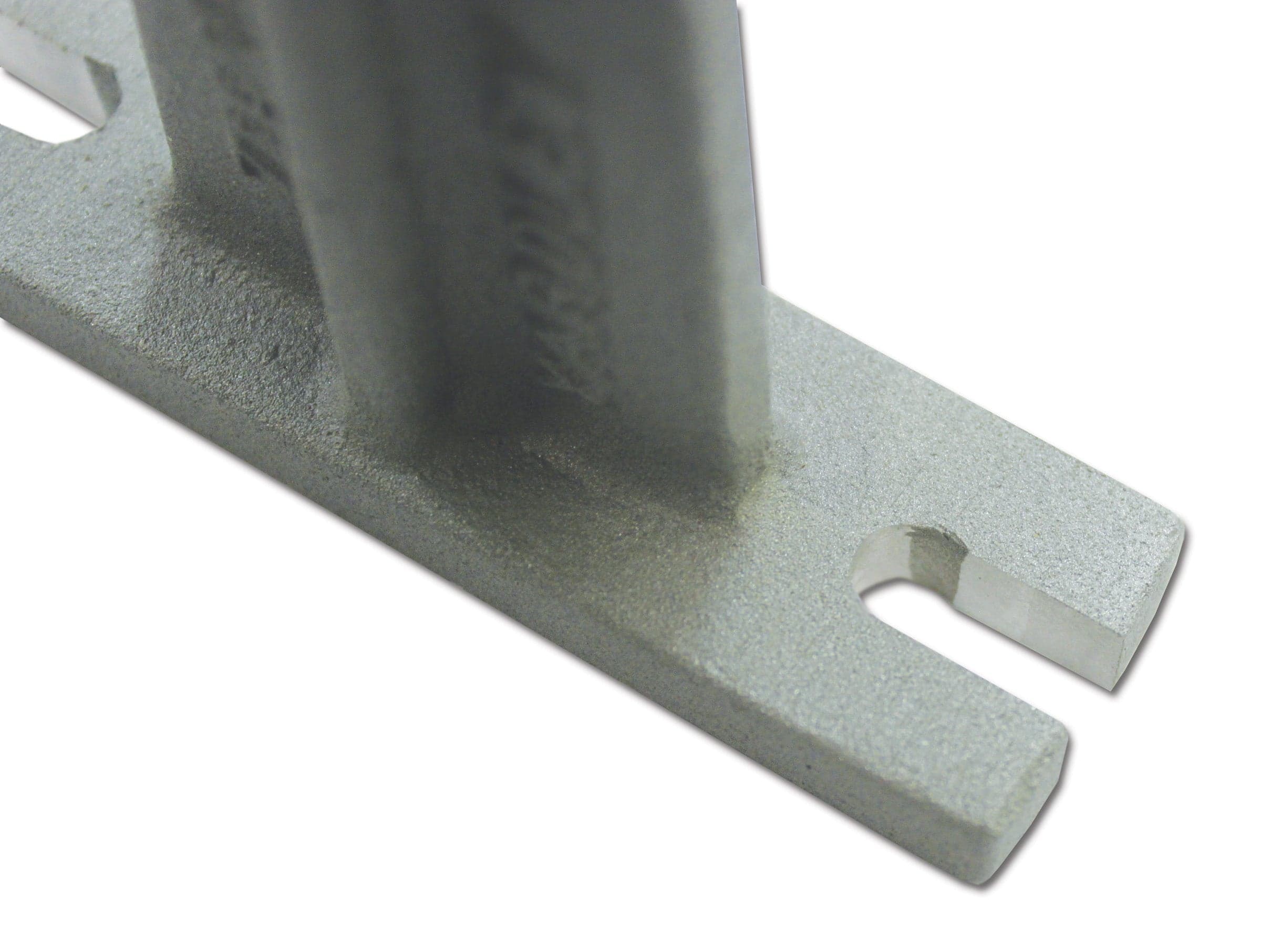

• Slotted base provides increased mounting flexibility
• Simplifies installation on standard 1" x 1" grid tool boards
• Allows equipment to be positioned diagonally
• Helps maximize available tool board and compartment space
• Flexible draw latches accommodate varying tool diameters
• Draw latches securely hold equipment in place
• UV-stabilized latches provide extended service life
• Durable cast aluminum construction
• Powder-coated finish for added protection
• Rugged design resists cracking and breaking
• Easy to open and close
Specifications
• Manufacturer: Ziamatic
• Product Type: Double Horizontal Variable Tool Mount
• Tool Diameter Range: 1" to 1.3"
• Configuration: Double Horizontal
• Bracket Material: Cast Aluminum
• Finish: Powder-Coated
• Retention System: Flexible Draw Latches
• Latch Construction: UV-Stabilized
• Base Style: Slotted
• Tool Board Compatibility: Standard 1" x 1" Grid Tool Boards
• Mounting Position: Straight or Diagonal
