The Ziamatic Dual Air Cylinder Brackets are versatile storage brackets designed to securely hold dual SCBA or SCUBA air cylinders, with or without a harness. Designed for convenient equipment storage and quick access, these brackets can be easily mounted to virtually any flat surface and are available in configurations for both small and large cylinders.

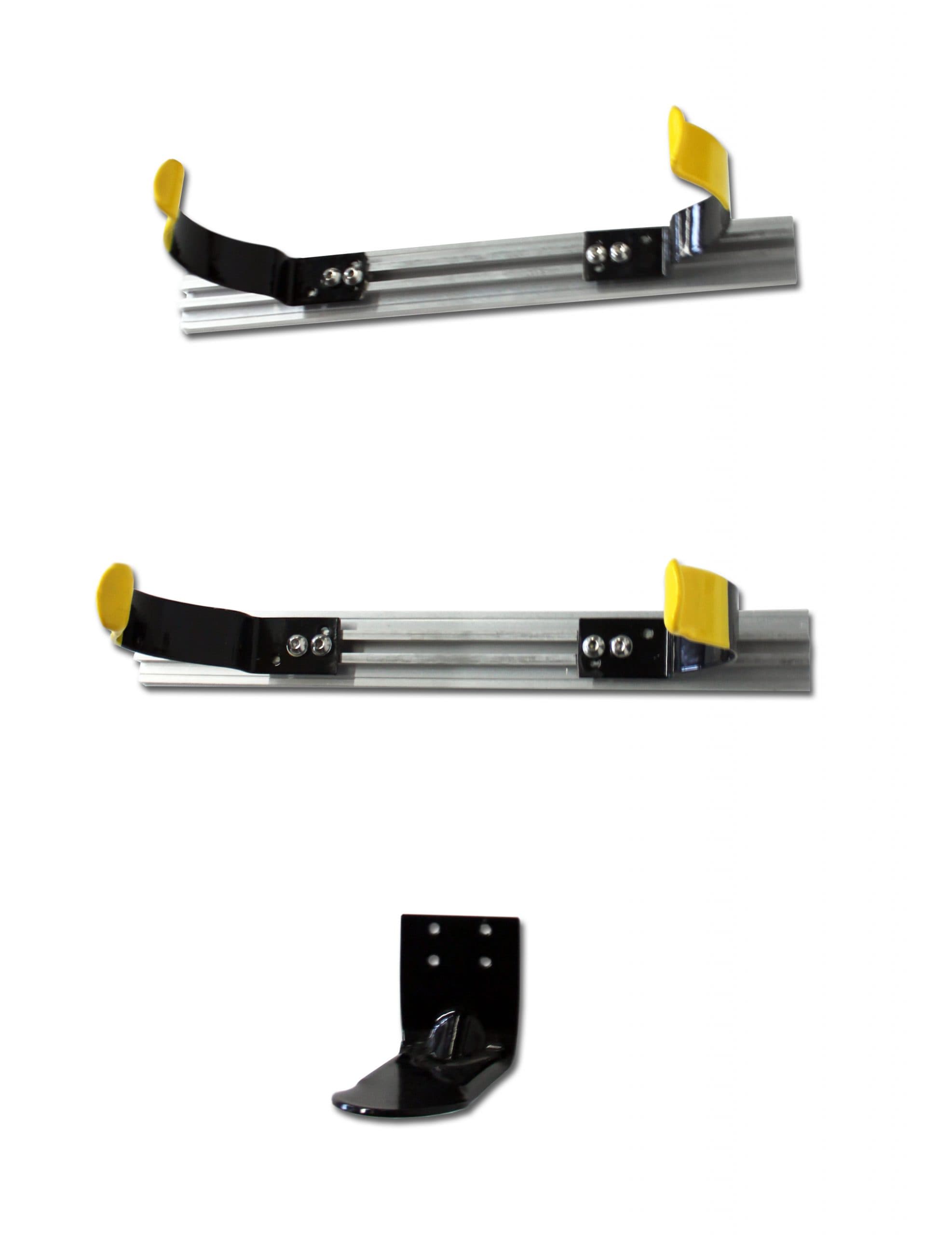

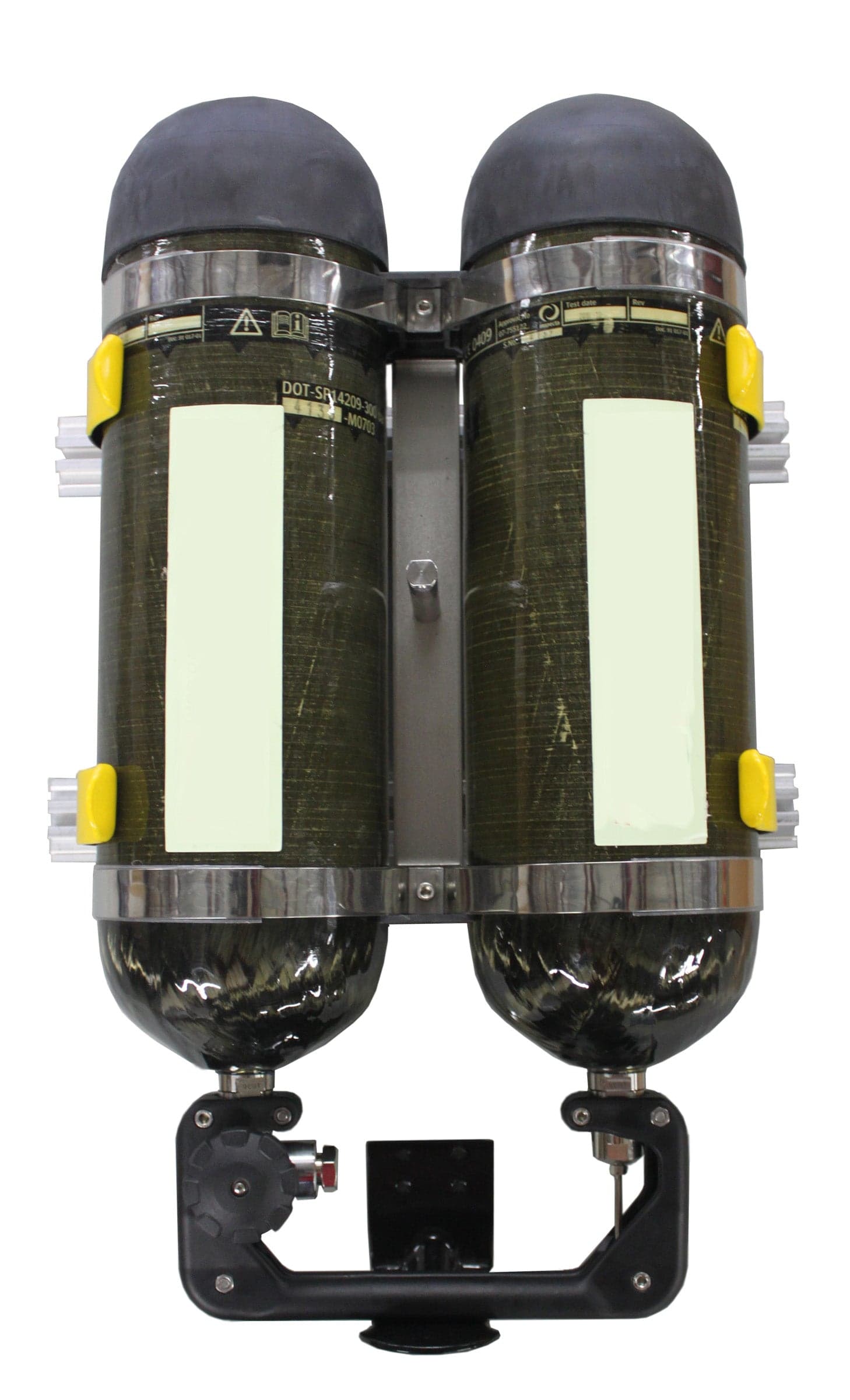

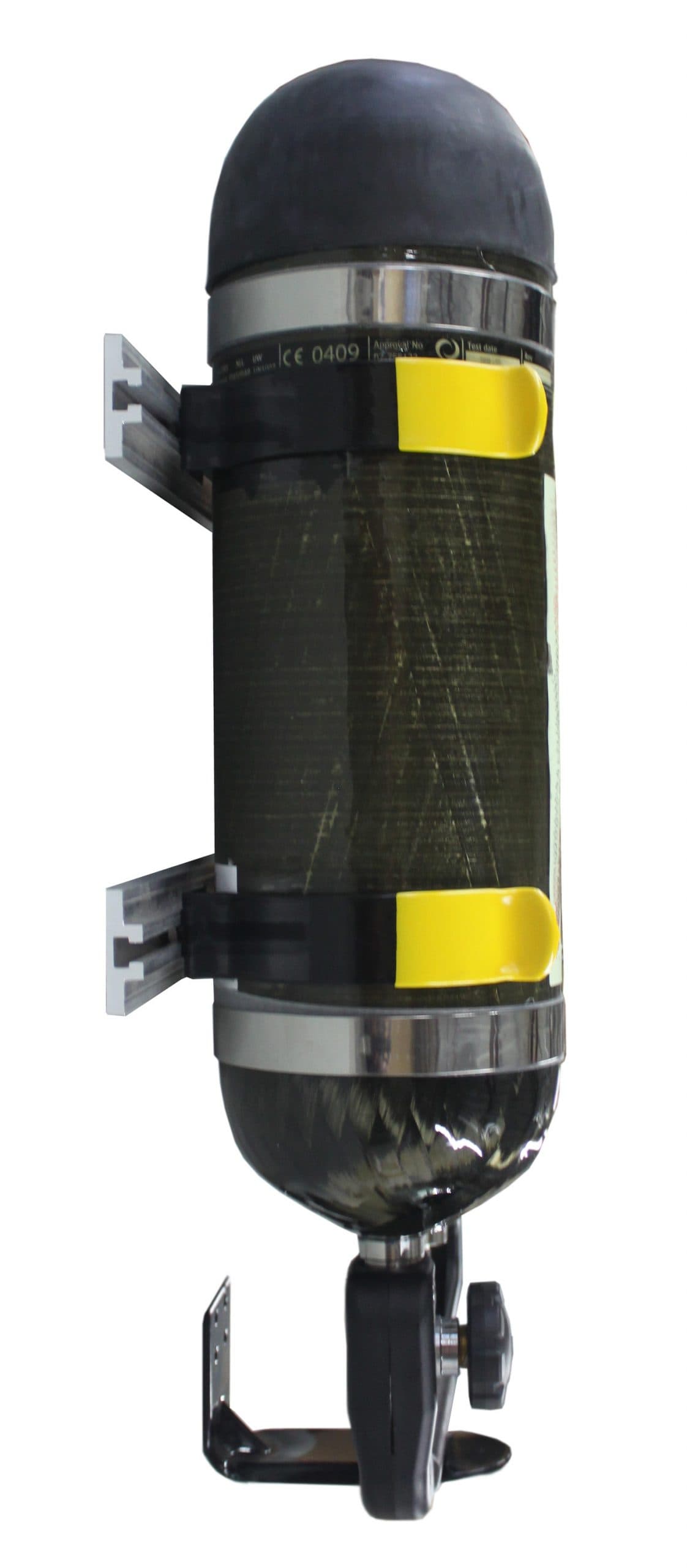

Thermoplastic, non-mar high-cycle clips securely retain the cylinders while helping protect their surfaces from damage. The clips can be adjusted along durable aluminum extrusions to accommodate a range of cylinder widths. To stow the cylinders, simply position the valves on the footplate and push the cylinders into the clips. For removal, pull the cylinders free from the retaining clips.
Features
• Accommodates dual SCBA and SCUBA air cylinders
• Compatible with cylinders with or without a harness
• Thermoplastic non-mar clips help protect cylinder surfaces
• High-cycle clips designed for repeated use
• Clips adjust along aluminum extrusions to accommodate different cylinder widths
• Easily mounts to virtually any flat surface
• Footplate supports the cylinder valves during storage
• Simple push-in design for quick stowing
• Cylinders can be quickly removed by pulling them free from the clips
• Available for small and large cylinder configurations
Specifications
• Manufacturer: Ziamatic
• Product Type: Dual Air Cylinder Bracket
• Applications: SCBA and SCUBA Air Cylinder Storage
• Capacity: 2 Cylinders
• Clip Material: Thermoplastic
• Extrusion Material: Aluminum
• Mounting: Flat Surface
• Small Cylinder Bracket: Model DACB-5
• DACB-5 Clip Size: 5"
• DACB-5 Recommended Cylinder: 3.4 Liter SCBA/SCUBA
• Large Cylinder Bracket: Model DACB-6
• DACB-6 Clip Size: 6"
• DACB-6 Recommended Cylinder: 6.7 Liter SCUBA
