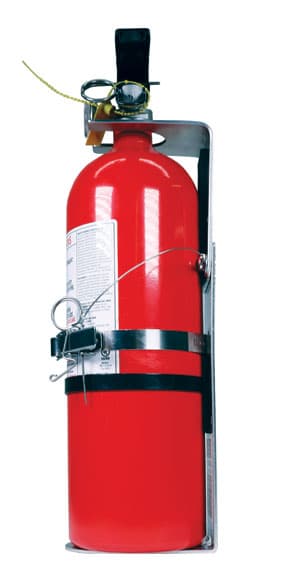

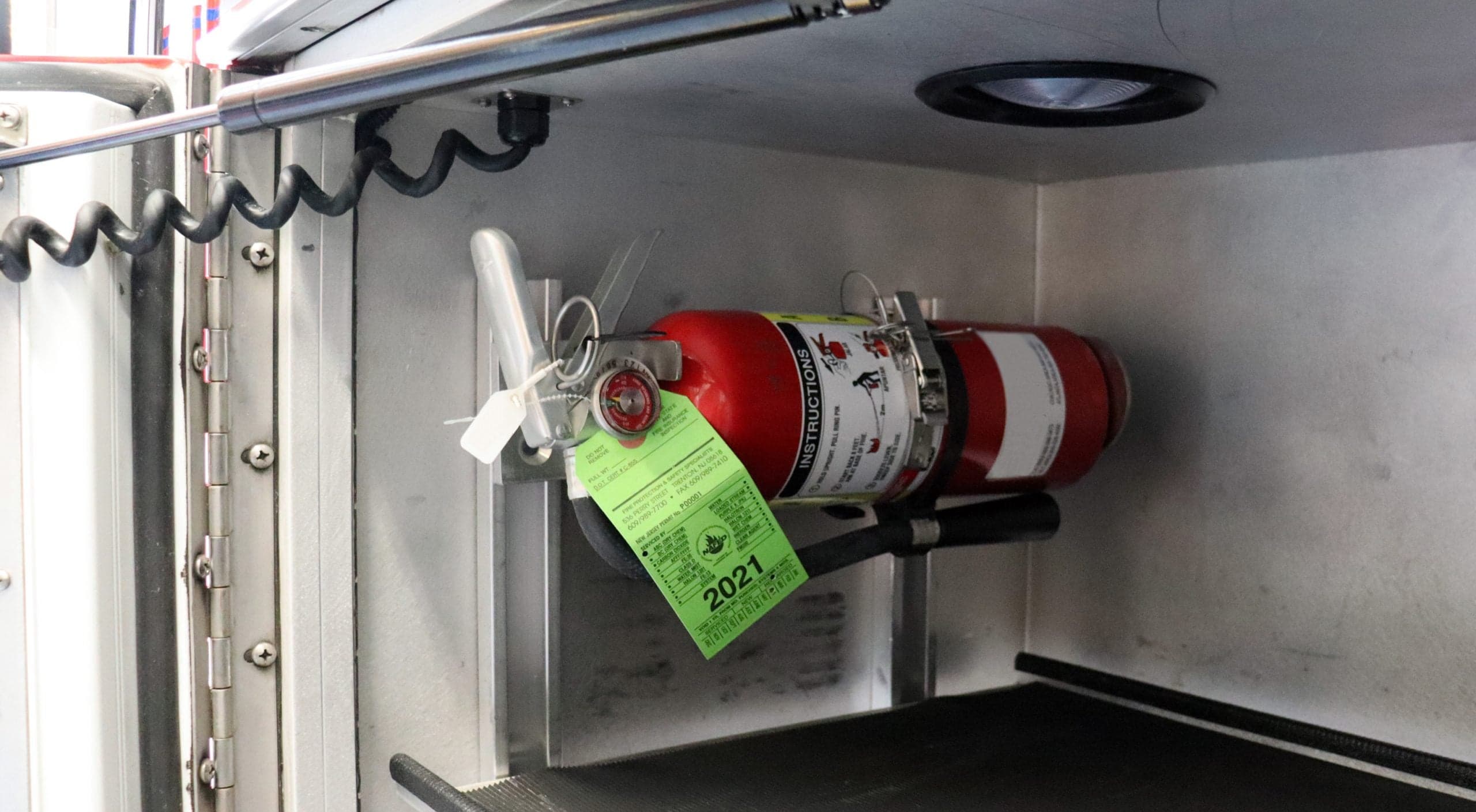

The Fire Extinguisher Holder - 5 lb. is a heavy-duty mounting bracket designed to safely secure a 5 lb. fire extinguisher inside or outside the crew area of ambulances, fire apparatus, and other moving vehicles. Engineered and tested specifically for mobile applications, the holder provides secure extinguisher retention while allowing fast access when needed.
Constructed from stainless steel, the two-piece adjustable bracket uses a band clamp to firmly secure the extinguisher with virtually no rattle. A quick-release buckle provides fast removal, while a specially designed pull pin helps ensure the latch remains closed during transport. Soft foam pads cushion and protect the cylinder, and the fabric-free design is easy to clean, disinfect, and inspect.
Features
• Designed for 5 lb. fire extinguishers
• Engineered and tested specifically for ambulances and other moving vehicles

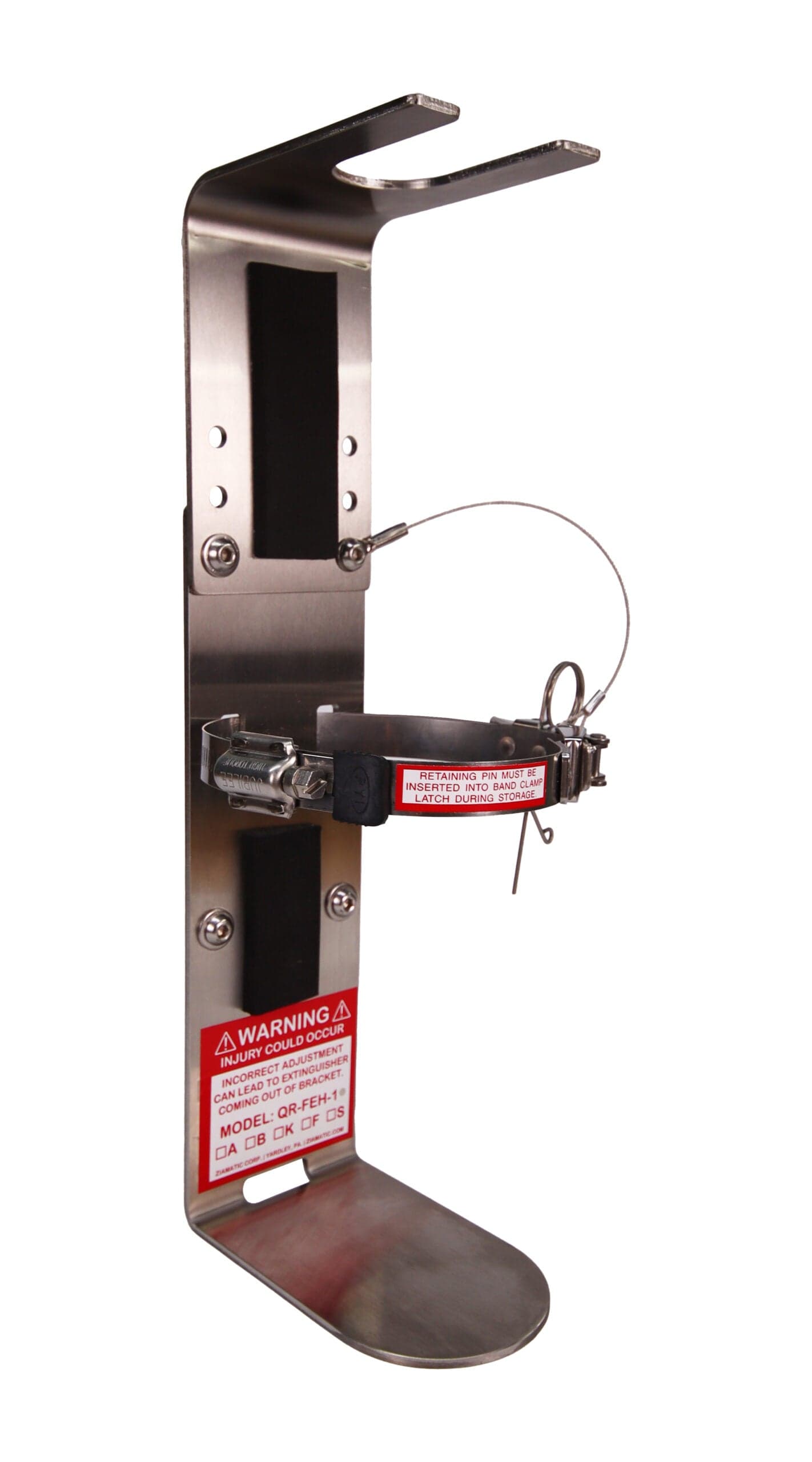

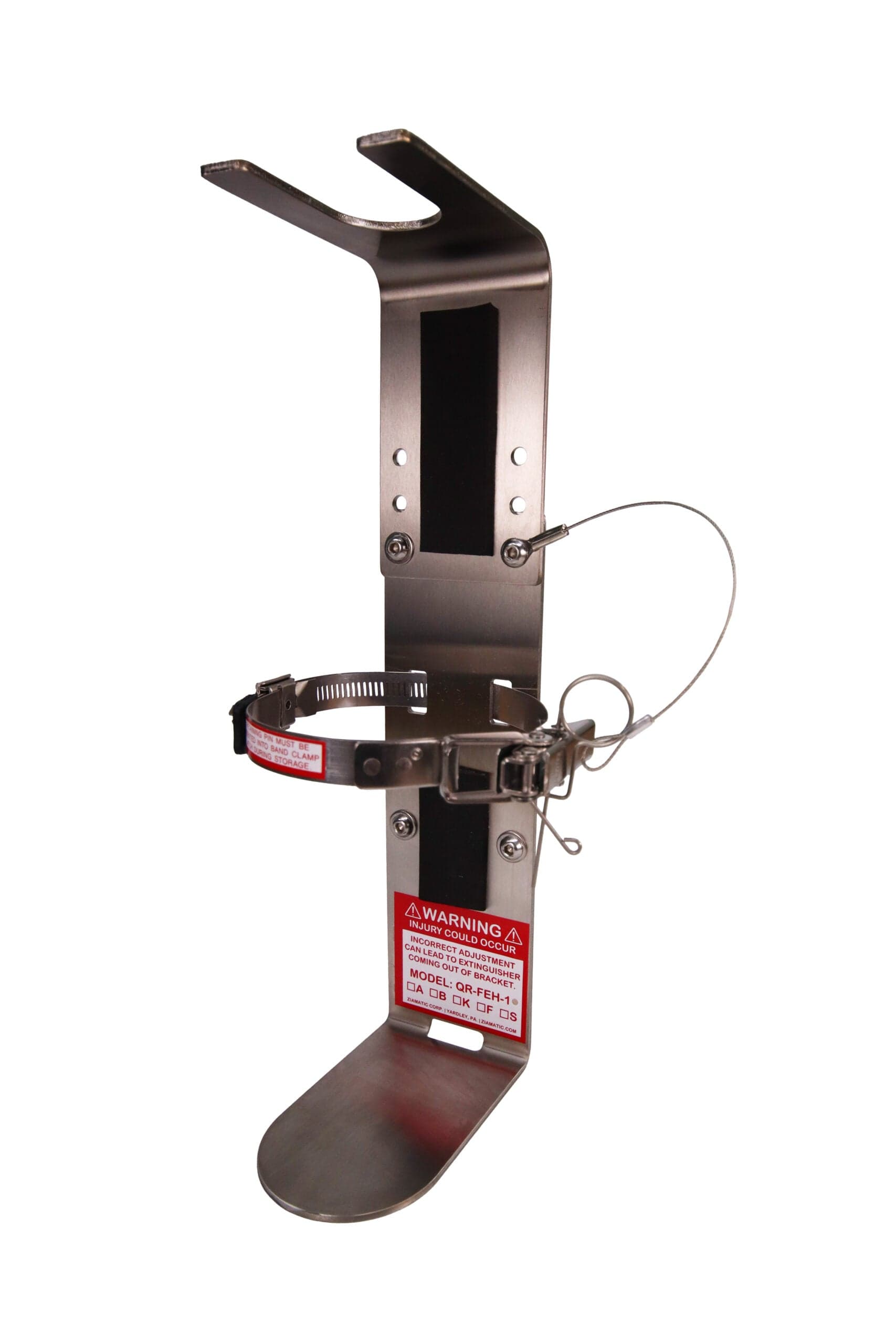

• Two-piece adjustable bracket design
• Band clamp firmly secures the cylinder with virtually no rattle
• Quick-release buckle provides fast and easy extinguisher access
• Specially designed pull pin helps keep the latch securely closed
• Soft foam pads cushion and protect the extinguisher
• Fabric-free design is easy to clean and disinfect
• No fabric to harbor bloodborne pathogens
• Allows easy visual and physical inspection of the extinguisher
• Mounts horizontally or vertically to any flat surface
• Third-party tested to exceed applicable safety standards
• SAE-J3043 compliant
• Complies with AMD Standard 003, NFPA, and GSA KKK specifications when used as recommended
• Complies with OSHA and insurance safety regulations
Specifications
• Manufacturer: Ziamatic
• Product Type: Fire Extinguisher Holder
• Extinguisher Capacity: 5 lb.
• Material: Stainless Steel
• Dimensions: 12-1/4" or 13-3/4" L x 3" W x 4-1/8" D
• Mounting Orientation: Horizontal or Vertical
• Mounting Surface: Any Flat Surface

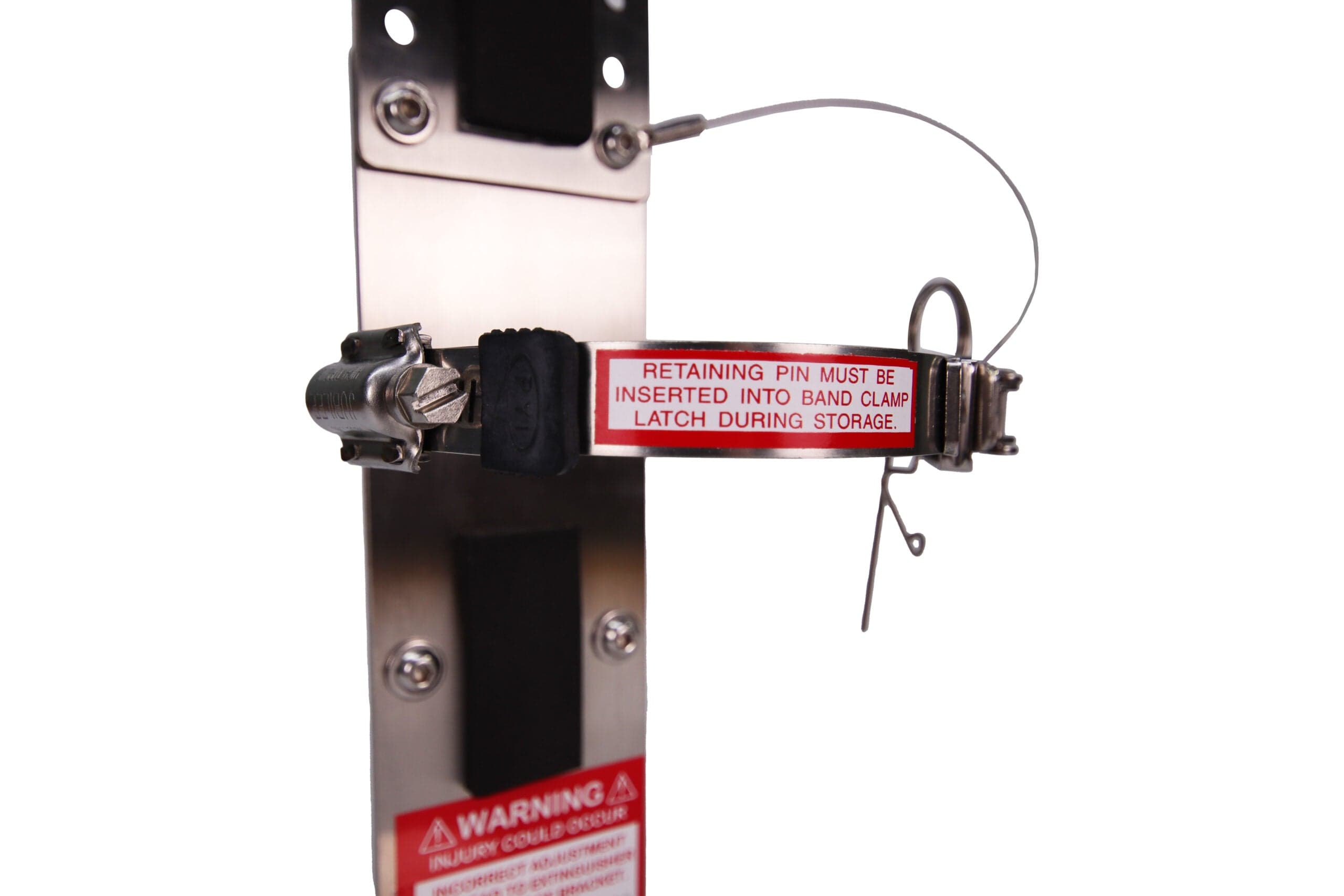

• Retention System: Band Clamp with Quick-Release Buckle and Pull Pin
• Cylinder Protection: Soft Foam Pads
• QR-FEH-1: Fits most makes and models; adjustable to 12-1/4", 13", or 13-3/4" overall height

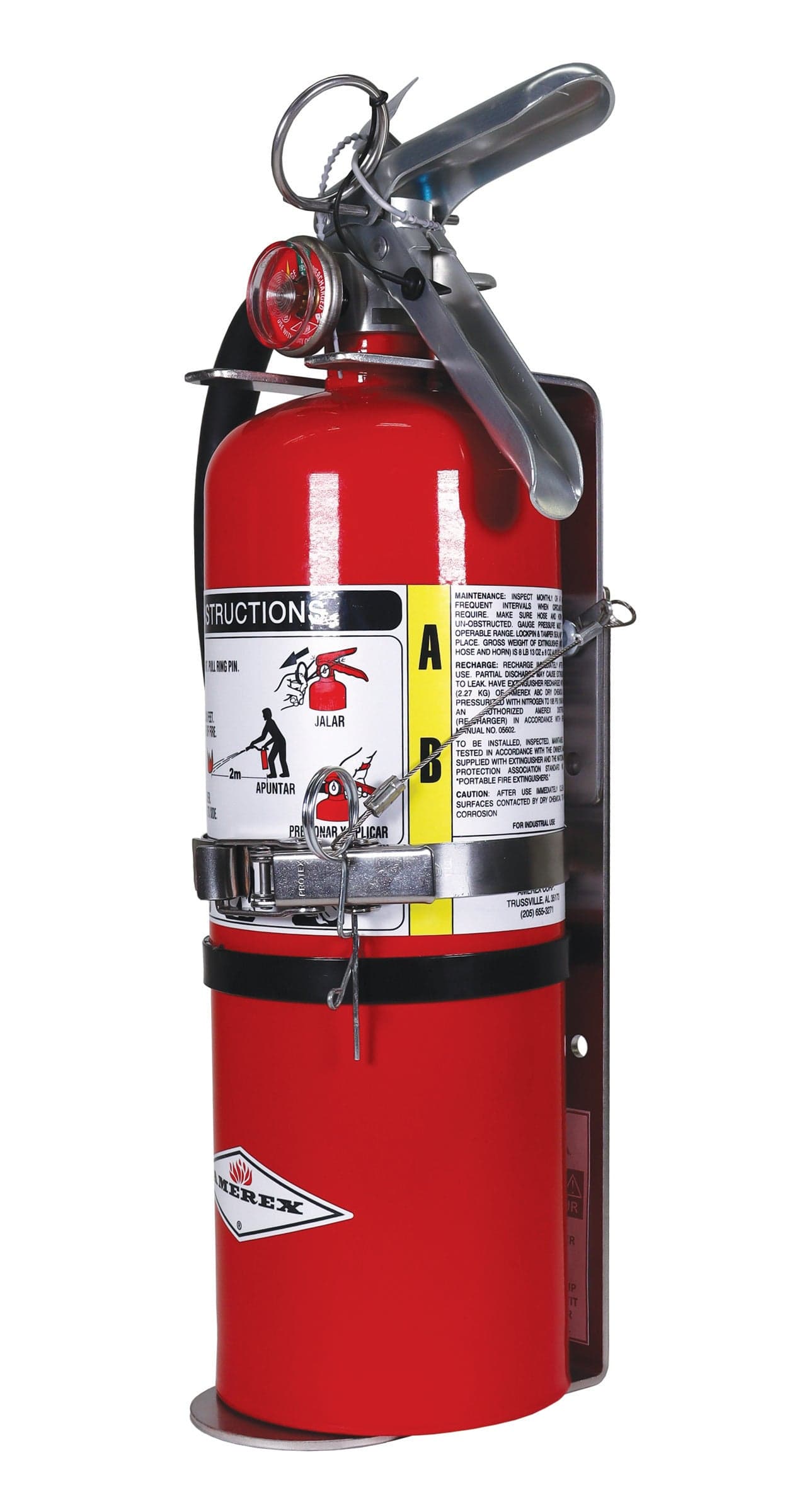

• QR-FEH-1-A: For Amerex B402 and B500
• QR-FEH-1-B: For Badger 5MB-6H
• QR-FEH-1-K: For Kidde Pro Series 340
• QR-FEH-1-S: For Sentry AA05S-1
