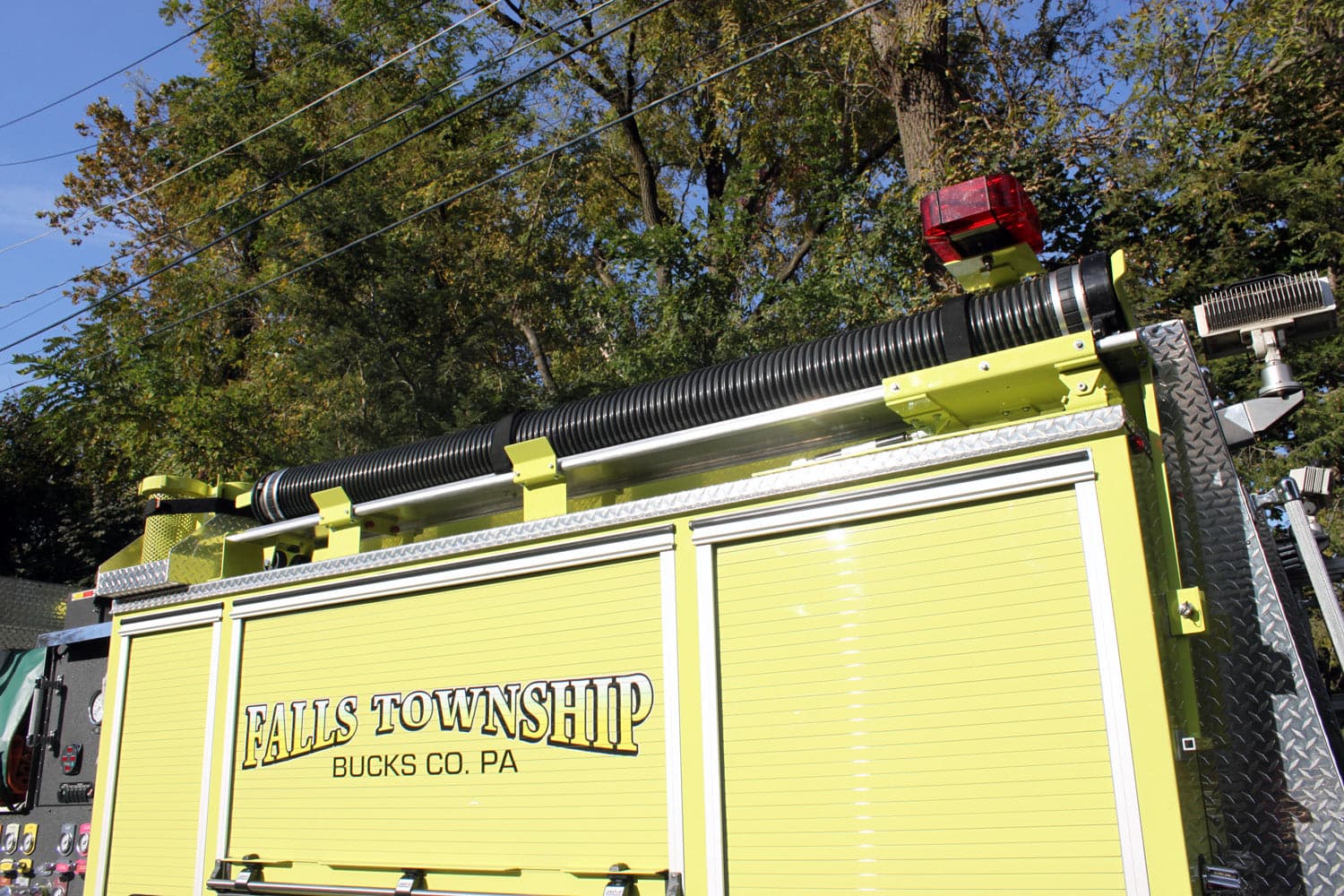

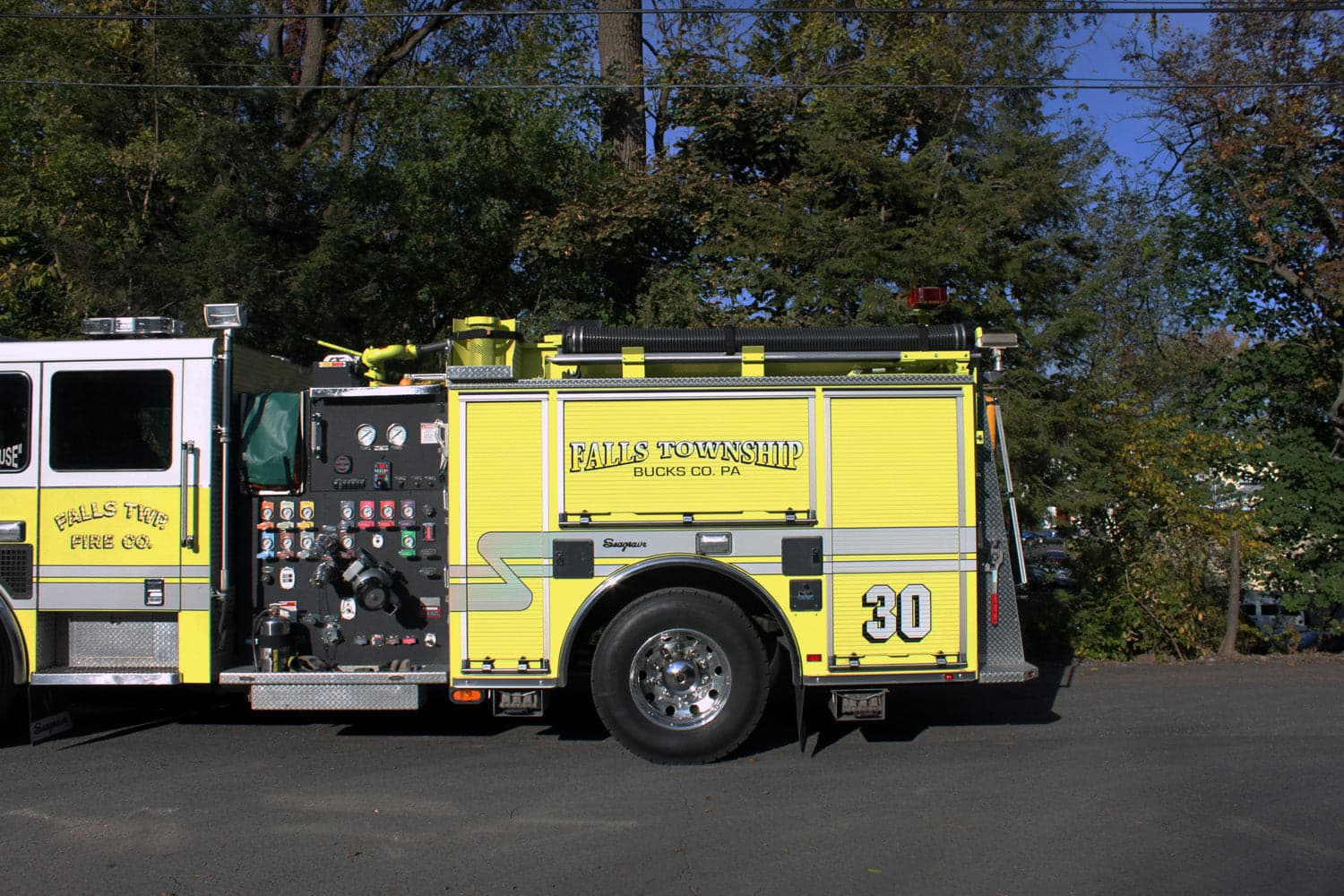

The Ziamatic Hard Sleeve Gantry System is designed to provide safe and convenient access to a 10' hard sleeve stored on a high apparatus shelf. By bringing the hard sleeve down to a comfortable retrieval height, the system eliminates dangerous climbing and helps reduce the risk of injury to personnel.

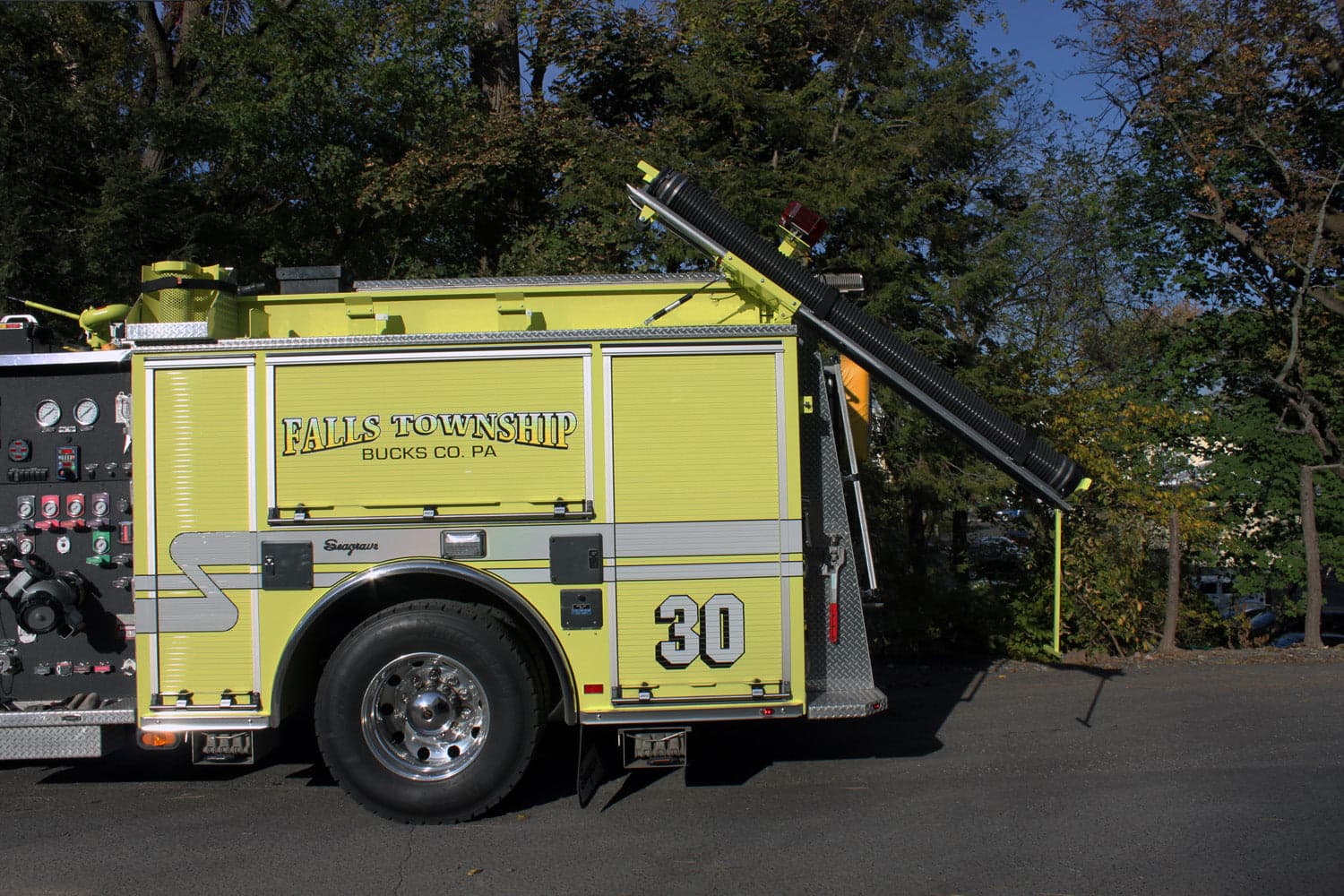

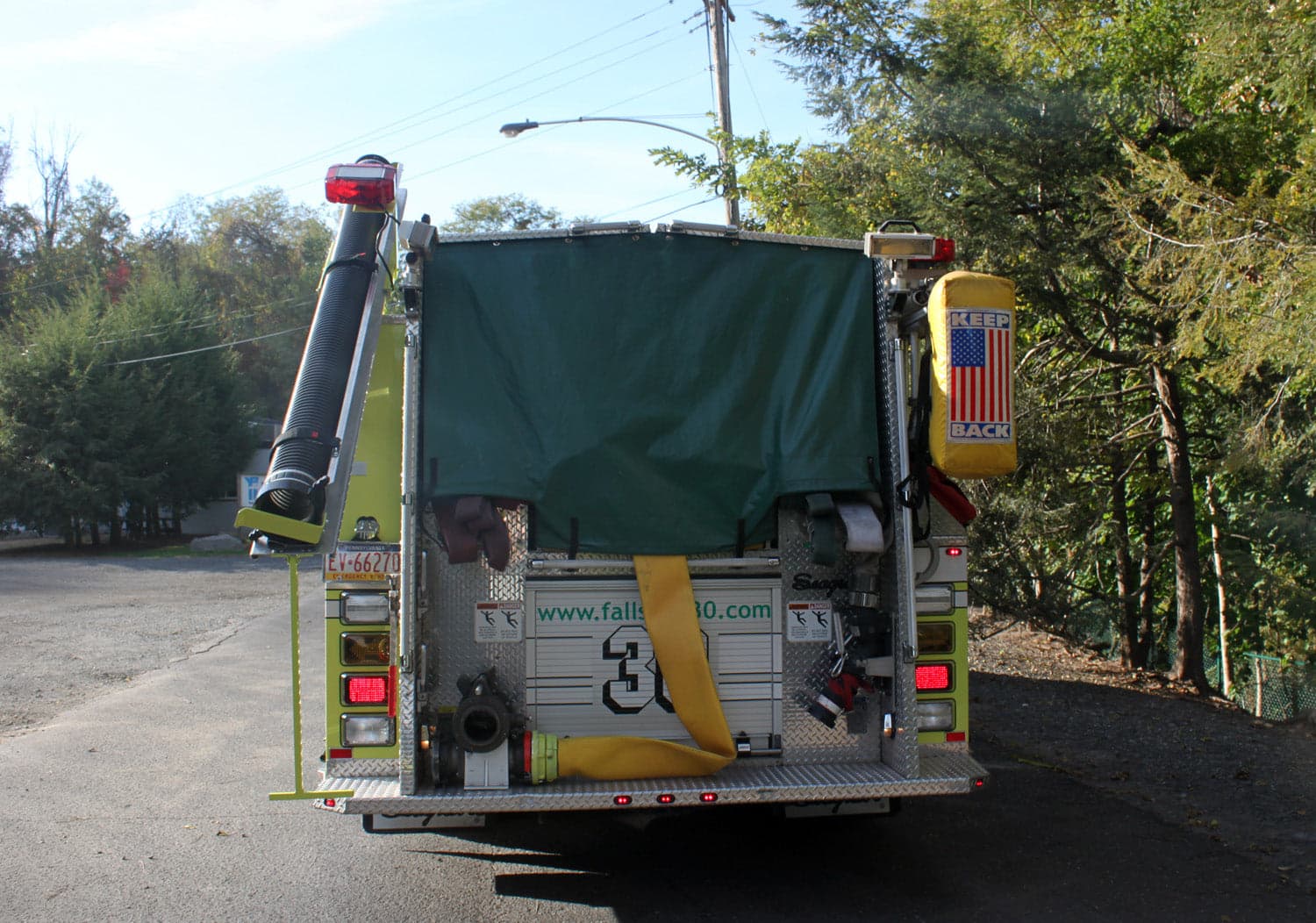

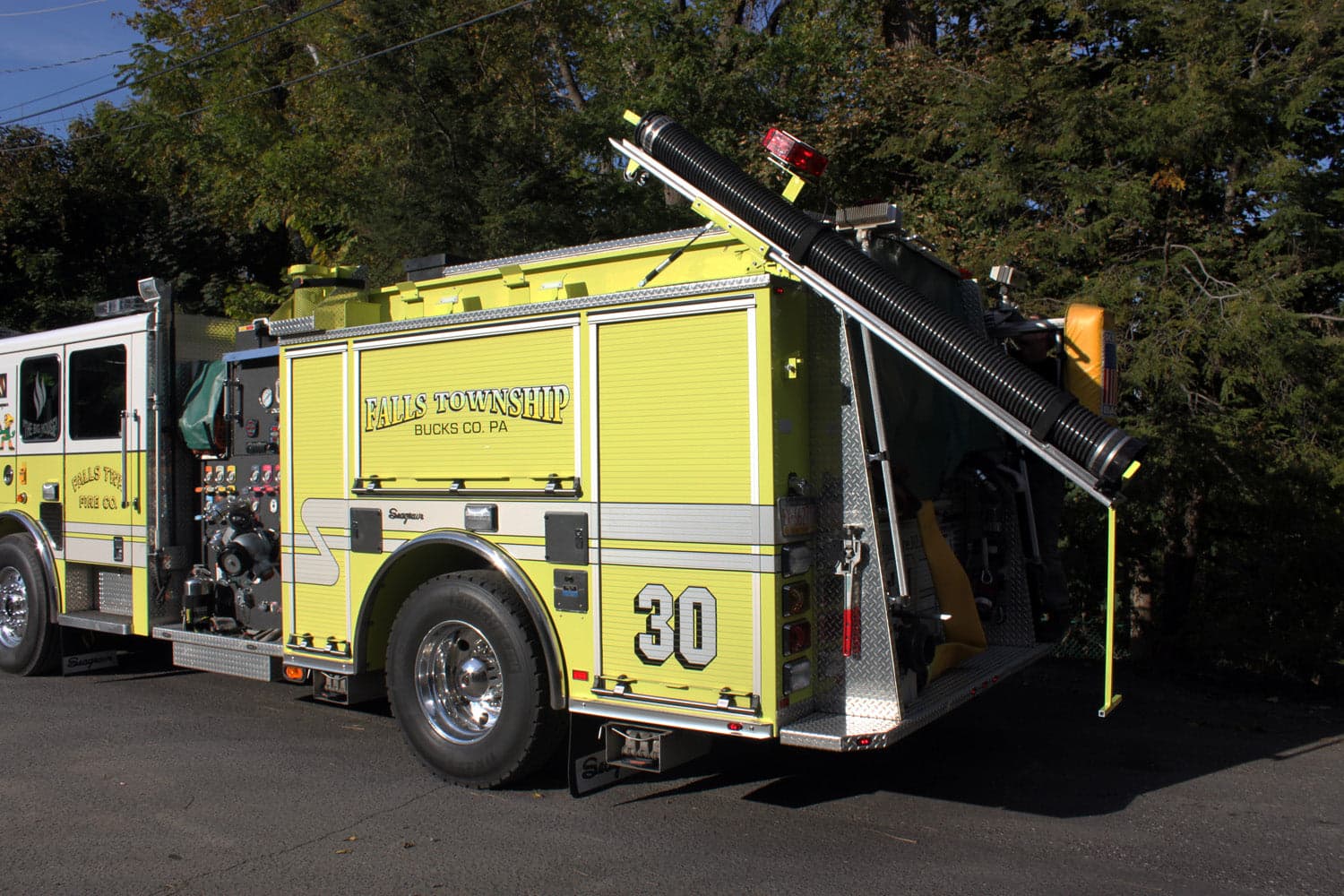

The gantry slides out from the rear of the apparatus and tilts downward for easy hard sleeve removal, allowing the process to be handled by a single firefighter. A patented catch holds the sleeve securely against the tray even after the retention straps have been removed, helping reduce the risk of dropped equipment and resulting damage to the apparatus or hard sleeve.
Features
• Provides convenient access to a 10' hard sleeve stored on a high apparatus shelf
• Eliminates the need to climb onto the apparatus to retrieve the hard sleeve
• Helps reduce the risk of personnel injury
• Slides out from the rear of the apparatus
• Tilts downward to a comfortable retrieval height
• Designed for operation by a single firefighter
• Patented catch holds the hard sleeve against the tray
• Catch continues to retain the sleeve after the straps are removed
• Helps reduce the risk of dropped equipment
• Helps protect the hard sleeve and apparatus from damage
• Available in driver's side and officer's side configurations
• Maximum load capacity of 100 lbs.
Specifications
• Manufacturer: Ziamatic
• Product Type: Hard Sleeve Gantry System
• Hard Sleeve Length: 10'
• Maximum Load Capacity: 100 lbs.
• Operation: Slide-Out and Tilt-Down
• Driver's Side Configuration: Model HSG-1-D-10
• Officer's Side Configuration: Model HSG-1-O-10
