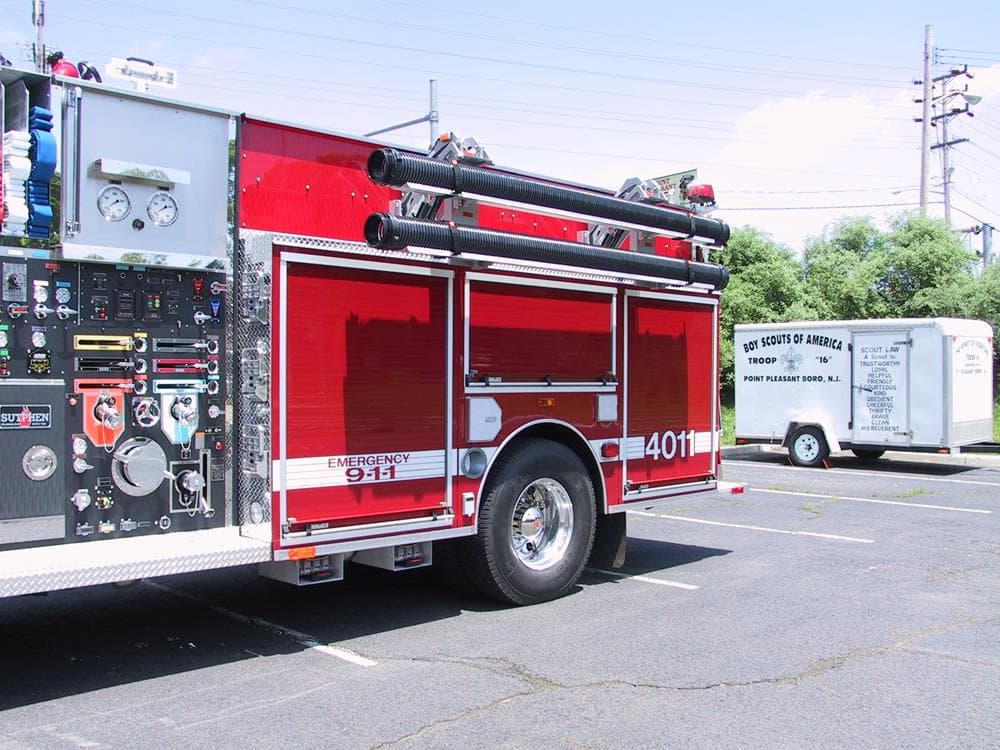

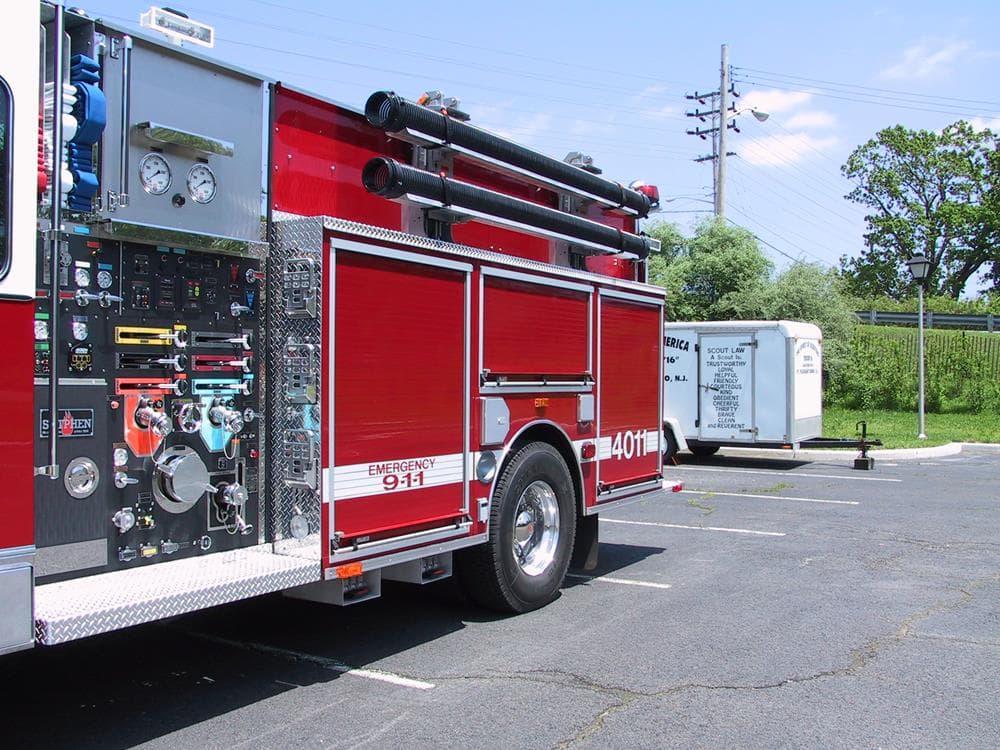

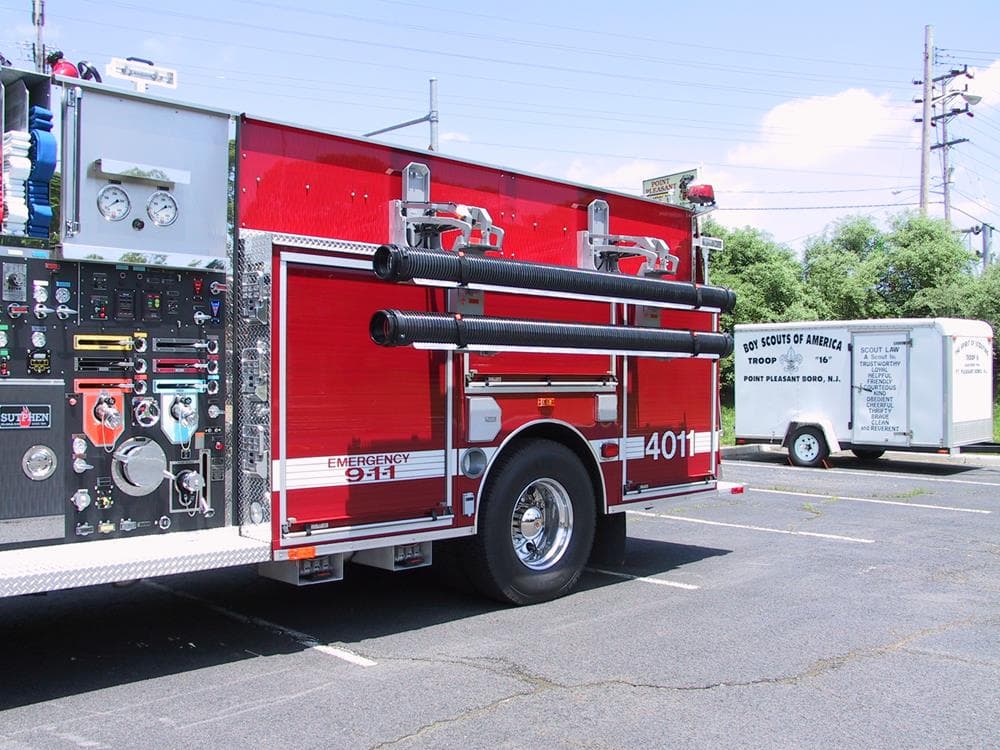

The Ziamatic Hard Sleeve System - Standard Electric is designed to lower two hard sleeves to a convenient height for safe and easy retrieval, helping eliminate the need for excessive reaching, straining, or climbing. The system provides powered access to hard sleeves while keeping them securely stored on the apparatus when not in use.
Constructed with rugged cast aluminum, the system supports the hard sleeves in durable 1/8" thick aluminum trays and uses high-strength hook & loop straps to secure them firmly in place. Electric actuators provide powered operation with a maximum load capacity of 300 lbs. An optional third hard sleeve and additional tool storage can be added with the appropriate mounting components.
Features
• Lowers two hard sleeves to a convenient retrieval height
• Helps eliminate excessive reaching, straining, and climbing
• Rugged cast aluminum construction
• 1/8" thick aluminum hard sleeve trays
• High-strength hook & loop straps securely retain hard sleeves
• Electric actuator operation
• Maximum load capacity of 300 lbs.
• Optional third hard sleeve can be mounted on top of the unit
• Optional mounting available for folding ladders, pike poles, and other tools
• Designed for convenient apparatus-mounted hard sleeve storage and retrieval
Specifications
• Manufacturer: Ziamatic
• Product Type: Hard Sleeve System - Standard Electric
• Hard Sleeve Capacity: 2 Standard, 3 with Optional Components
• Construction: Cast Aluminum
• Tray Material: Aluminum
• Tray Thickness: 1/8"
• Sleeve Retention: High-Strength Hook & Loop Straps
• Operation: Electric
• Maximum Load Capacity: 300 lbs.
• Components Required for Third Hard Sleeve: One LAS-FLB, One HSS-TMC, One HSS-SAT-10, and One HSS-TMH
• Tool Storage Mounting Component: Model LAS-FLB/PPMB
• Optional Tool Storage: Folding Ladders, Pike Poles, and Other Tools
