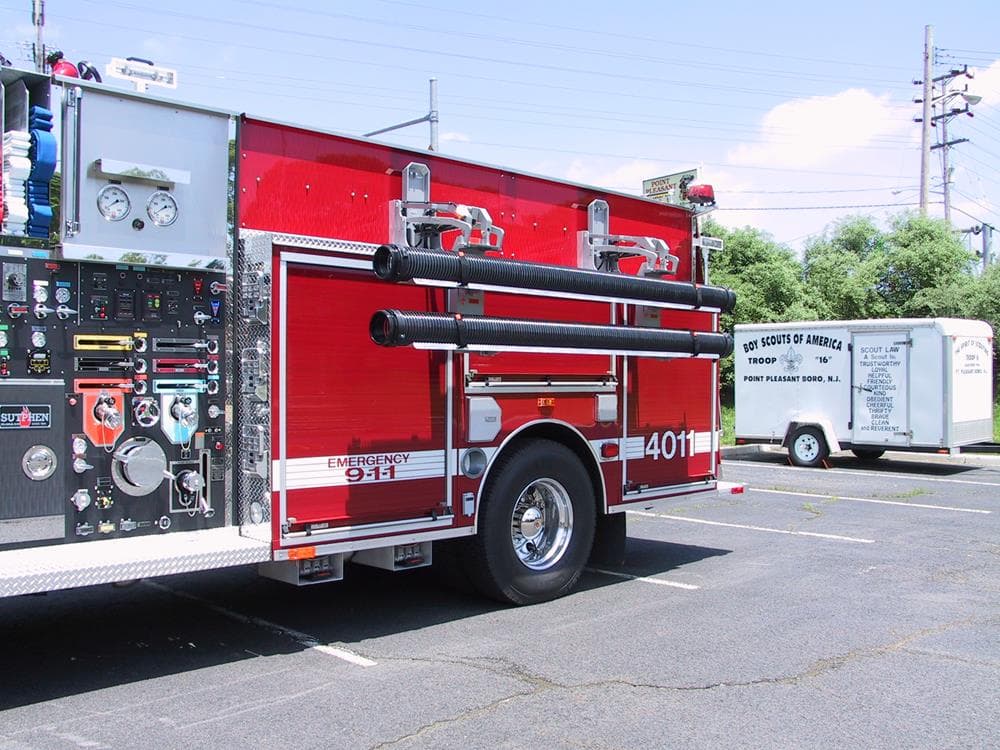

The Hard Sleeve System - Standard Hydraulic is designed to lower two hard sleeves to a convenient height for safe and easy retrieval, eliminating the need for excessive reaching, straining, or climbing. Rugged construction and powered hydraulic operation provide dependable hard sleeve storage and access on fire apparatus.
Constructed with rugged cast aluminum, the system supports hard sleeves in durable 1/8" thick aluminum trays and uses high-strength hook & loop straps to secure them firmly in place. Self-contained hydraulic actuators provide a more parallel operating motion and support a maximum load of 300 lbs. An optional third hard sleeve and additional tool storage can be added with the appropriate mounting components.
Features
• Lowers two hard sleeves to a convenient retrieval height
• Helps eliminate excessive reaching, straining, and climbing
• Rugged cast aluminum construction
• 1/8" thick aluminum hard sleeve trays
• High-strength hook & loop straps securely retain hard sleeves
• Self-contained hydraulic actuators
• Provides a more parallel operating motion
• Maximum load capacity of 300 lbs.
• Optional third hard sleeve can be mounted on top of the unit
• Optional mounting available for folding ladders, pike poles, and other tools
Specifications
• Manufacturer: Ziamatic
• Product Type: Hard Sleeve System - Standard Hydraulic
• Hard Sleeve Capacity: 2 Standard, 3 with Optional Components
• Construction: Cast Aluminum
• Tray Material: Aluminum
• Tray Thickness: 1/8"
• Sleeve Retention: High-Strength Hook & Loop Straps
• Operation: Hydraulic
• Hydraulic System: Self-Contained Actuators
• Maximum Load Capacity: 300 lbs.
• Components Required for Third Hard Sleeve: One LAS-FLB, One HSS-TMC, One HSS-SAT-10, and One HSS-TMH
• Tool Storage Mounting Component: Model LAS-FLB/PPMB
• Optional Tool Storage: Folding Ladders, Pike Poles, and Other Tools
