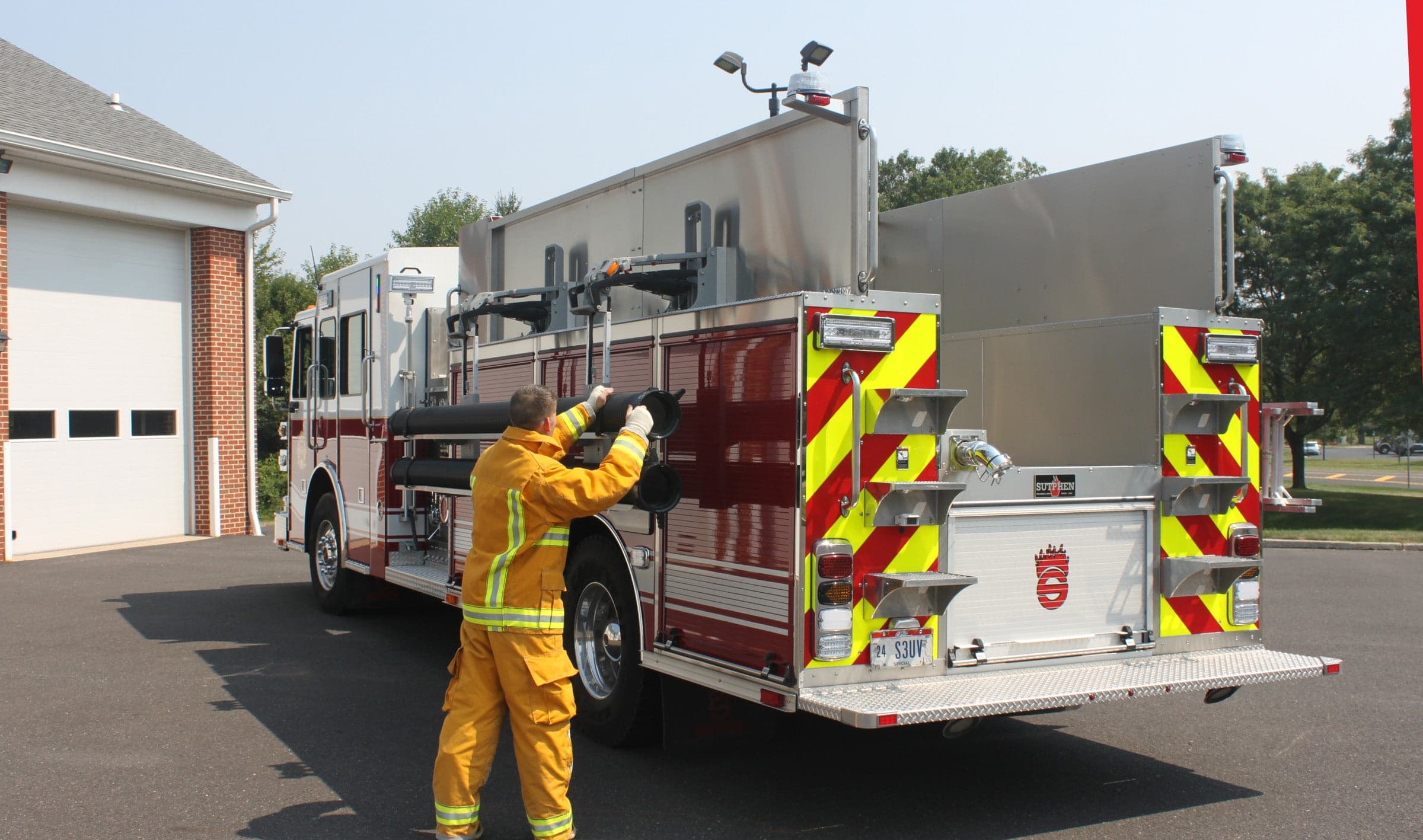

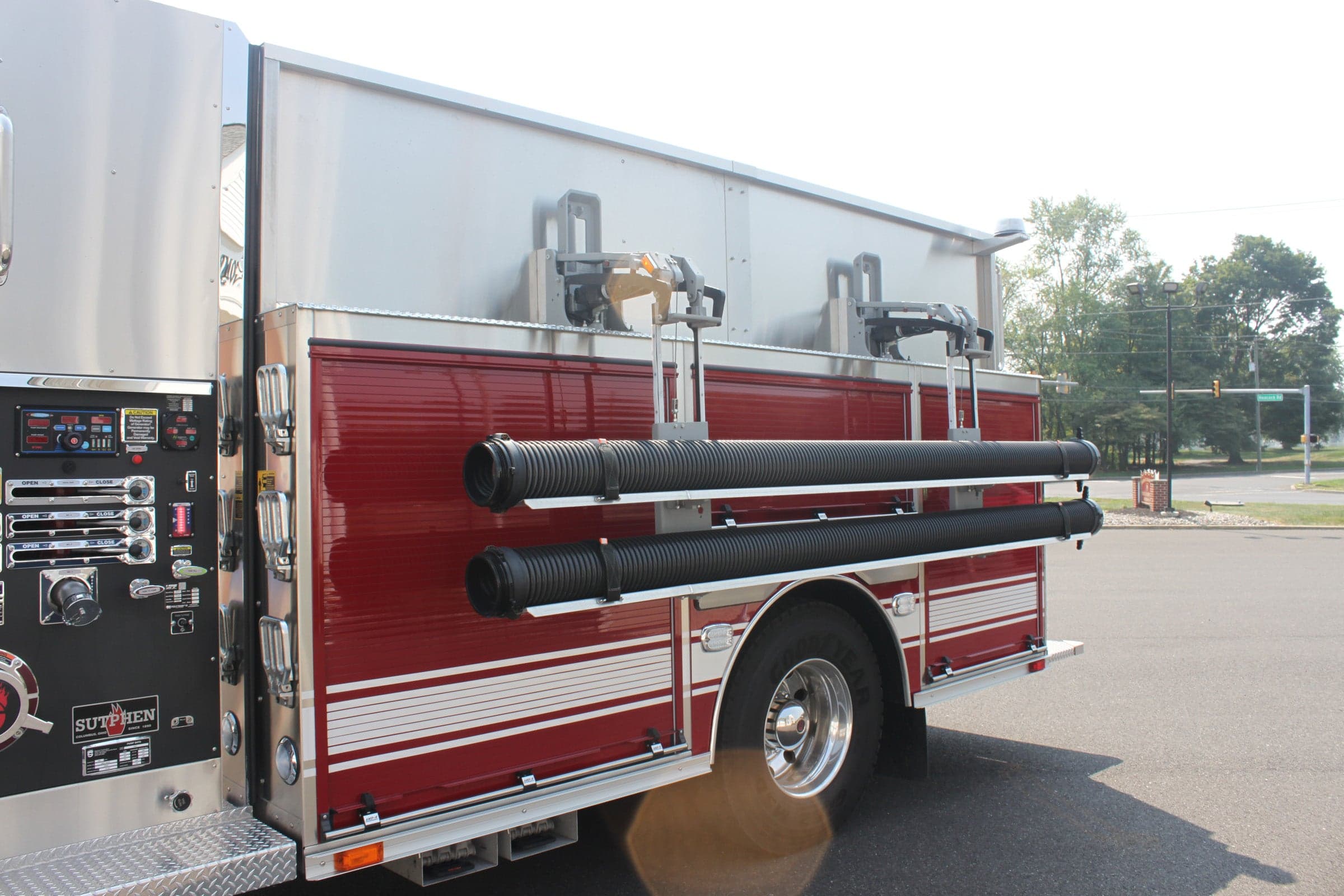

The Ziamatic Horizontal Hard Sleeve System - Extend Down is designed to lower hard sleeves an impressive 36", making stored equipment easier to reach from high mounting positions. Providing 12" more downward travel than standard models, the system is especially useful for high apparatus shelves or providing easier access for shorter personnel.
Self-contained hydraulic actuators provide a more parallel operating motion while supporting a maximum load of 300 lbs. Optional mounting brackets can also be attached to the system castings to accommodate additional equipment such as a hard sleeve, folding ladders, and pike poles.
Features
• Lowers hard sleeves up to 36"
• Provides 12" more downward travel than standard models
• Ideal for high shelf mounting locations
• Provides easier equipment access for shorter personnel
• Self-contained hydraulic actuators
• Provides a more parallel operating motion
• Maximum load capacity of 300 lbs.
• Optional mounting brackets can be attached to the system castings
• Optional mounting accommodates a hard sleeve, folding ladders, and pike poles
• Optional mounting bracket available as Model LAS-XT-AB
Specifications
• Manufacturer: Ziamatic
• Product Type: Horizontal Hard Sleeve System - Extend Down
• Maximum Downward Travel: 36"
• Additional Travel Over Standard Models: 12"
• Operation: Hydraulic
• Hydraulic System: Self-Contained Actuators
• Maximum Load Capacity: 300 lbs.
• Optional Mounting Bracket Model: LAS-XT-AB
• Optional Mounting Applications: Hard Sleeve, Folding Ladders, and Pike Poles
