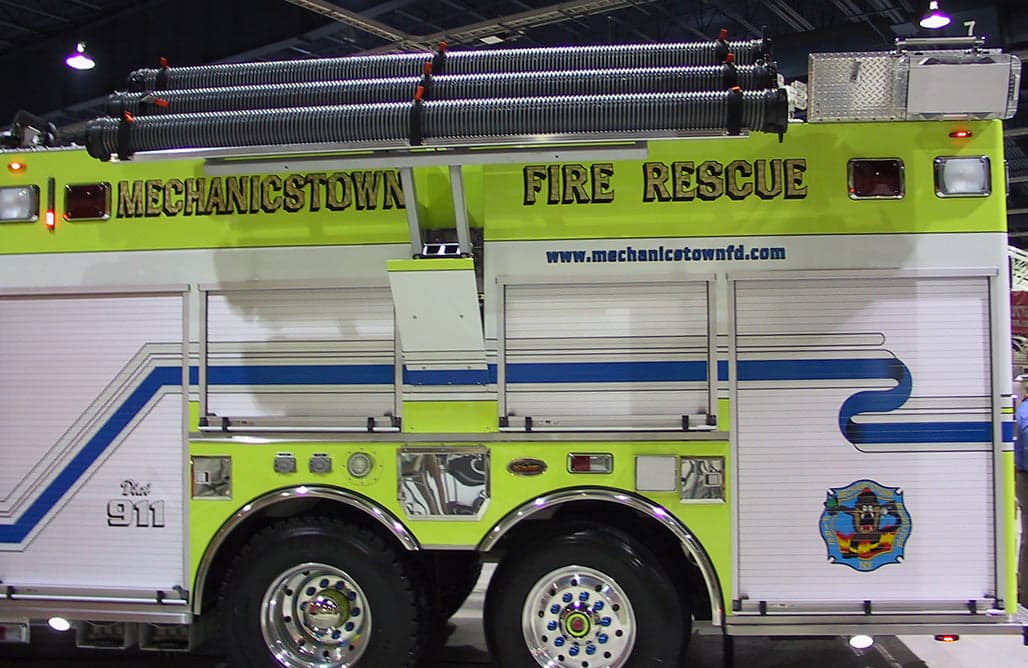

The Ziamatic Horizontal Hard Sleeve System is designed to store up to three hard sleeves over the top of a fire apparatus, freeing valuable space in the side body compartments below. At the flip of a switch, the system lowers the hard sleeves to a convenient height for safe and easy retrieval.
The boom lowers the sleeves away from the side body, allowing unrestricted access to the apparatus compartments while the system is deployed. A self-contained hydraulic piston provides powered operation with a maximum load capacity of 500 lbs. The system is NFPA compliant and incorporates a built-in safety latch and flashing light kit to provide a visual warning whenever the system is out of the stored position.
Features
• Stores up to three hard sleeves over the top of the apparatus
• Frees valuable side body compartment storage space
• Power-operated system lowers sleeves at the flip of a switch
• Lowers hard sleeves to a convenient height for safe and easy retrieval
• Boom lowers sleeves away from the side body
• Maintains unrestricted access to side compartments while deployed
• Powered by a self-contained hydraulic piston
• Maximum load capacity of 500 lbs.
• Built-in safety latch
• Flashing light kit provides a visual signal when the system is out of the stored position
• NFPA compliant
• Optional kits available for additional hard sleeve storage
• Optional mounting solution available for pike poles, folding ladders, and other tools
Specifications
• Manufacturer: Ziamatic
• Product Type: Horizontal Hard Sleeve System
• Hard Sleeve Capacity: Up to 3
• Operation: Hydraulic
• Hydraulic System: Self-Contained Piston
• Maximum Load Capacity: 500 lbs.
• Safety Latch: Included
• Flashing Light Kit: Included
• Compliance: NFPA Compliant
• Additional One Hard Sleeve Mounting Kit: Model HLAS-HS-1KIT
• Additional Two Hard Sleeve Mounting Kit: Model HLAS-HS-2KIT
• Pike Pole, Folding Ladder & Tool Mounting Option: Model HLAS-FLB-VM
