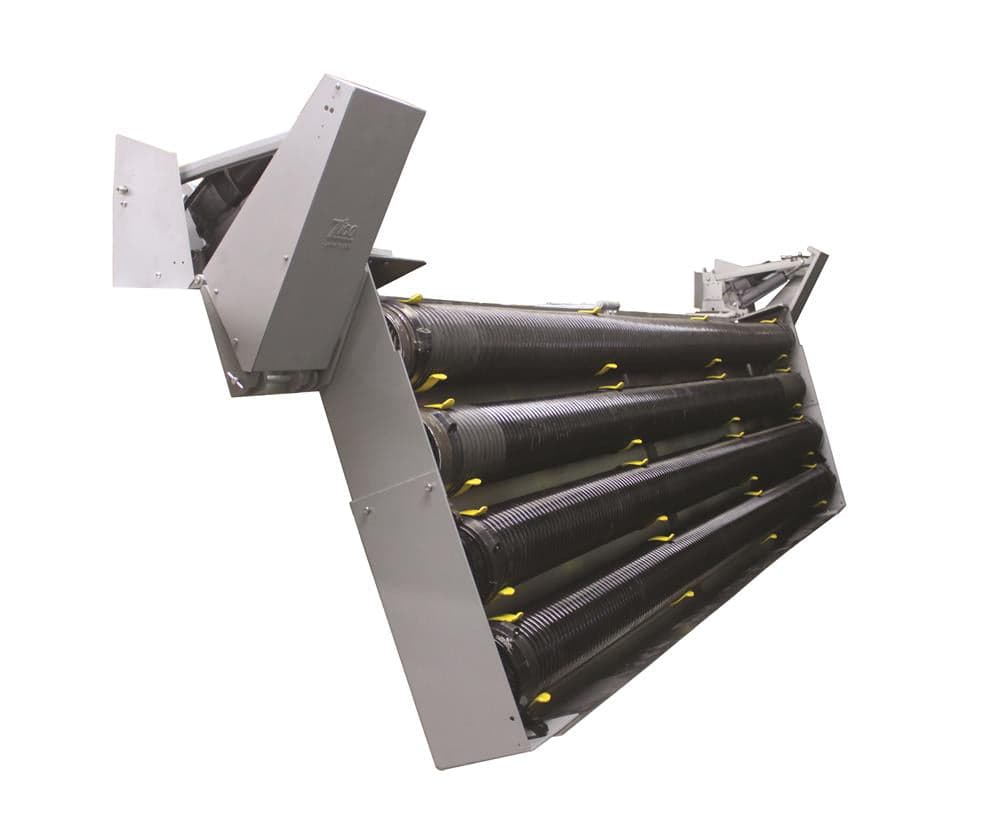

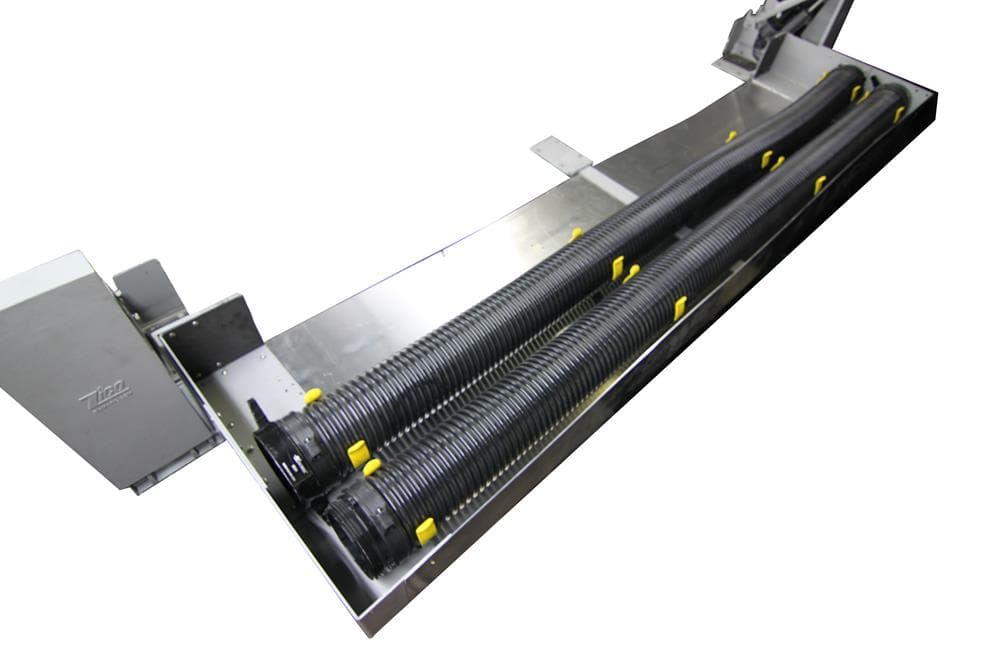

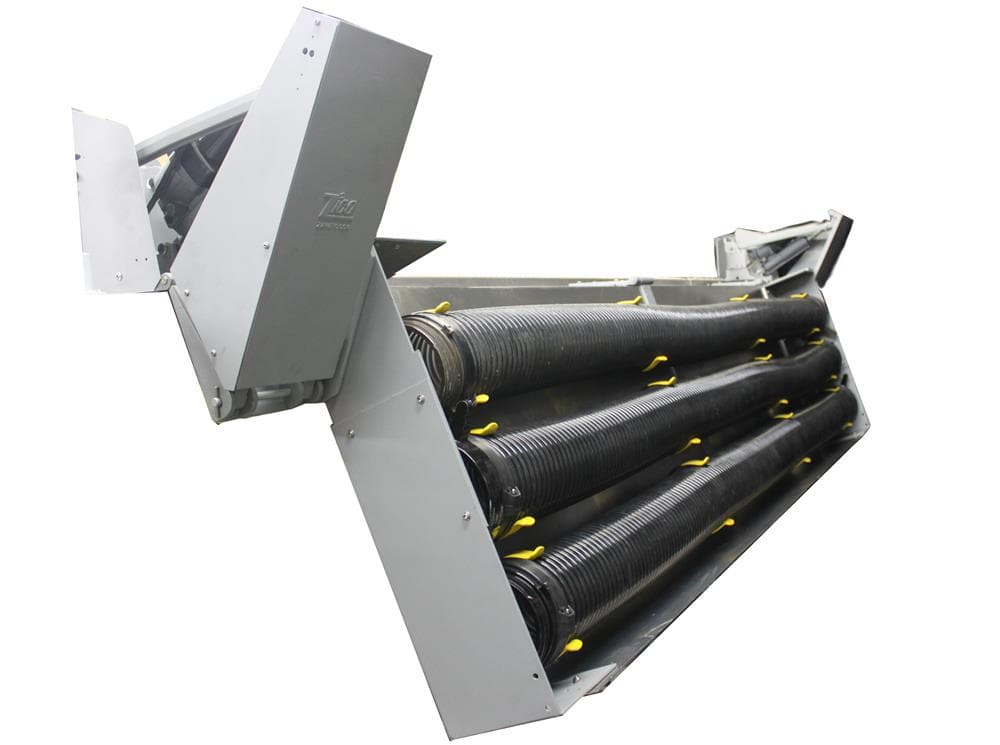

The Hydraulic Hard Sleeve System provides quick and convenient access to up to four hard sleeves stored over the side compartments of a fire apparatus. Hydraulic actuators provide a more even, parallel operating motion while lowering the sleeves to a convenient height for safe and easy retrieval.
Depending on the desired box size, the system can accommodate two, three, or four 5" or 6" hard sleeves. An additional fifth hard sleeve can be stored on top of the unit using the optional Horizontal Hard Suction Mount, Model HHS-TM-1. The system is available for both new and existing apparatus.
Features
• Provides storage for up to four hard sleeves
• Available for 5" or 6" hard sleeves
• Multiple configurations accommodate two, three, or four hard sleeves
• Stores hard sleeves over the side compartments to maximize apparatus storage space
• Hydraulic actuators provide a more even, parallel operating motion
• Lowers hard sleeves to a convenient height for safe and easy retrieval
• Optional fifth hard sleeve can be mounted on top of the unit
• Compatible with optional Horizontal Hard Suction Mount, Model HHS-TM-1
• Available for new and existing apparatus
Specifications
• Manufacturer: Ziamatic
• Product Type: Hydraulic Hard Sleeve System
• Operation: Hydraulic
• Hard Sleeve Sizes: 5" or 6"
• Standard Hard Sleeve Capacity: 2 to 4
• Optional Maximum Capacity: 5 Hard Sleeves
• HA-HS-5-2: Two 5" Hard Sleeves
• HA-HS-5-3: Three 5" Hard Sleeves
• HA-HS-5-4: Four 5" Hard Sleeves
• HA-HS-6-2: Two 6" Hard Sleeves
• HA-HS-6-3: Three 6" Hard Sleeves
• HA-HS-6-4: Four 6" Hard Sleeves
• Optional Fifth Sleeve Mount: Model HHS-TM-1
• Apparatus Compatibility: New and Existing Apparatus
