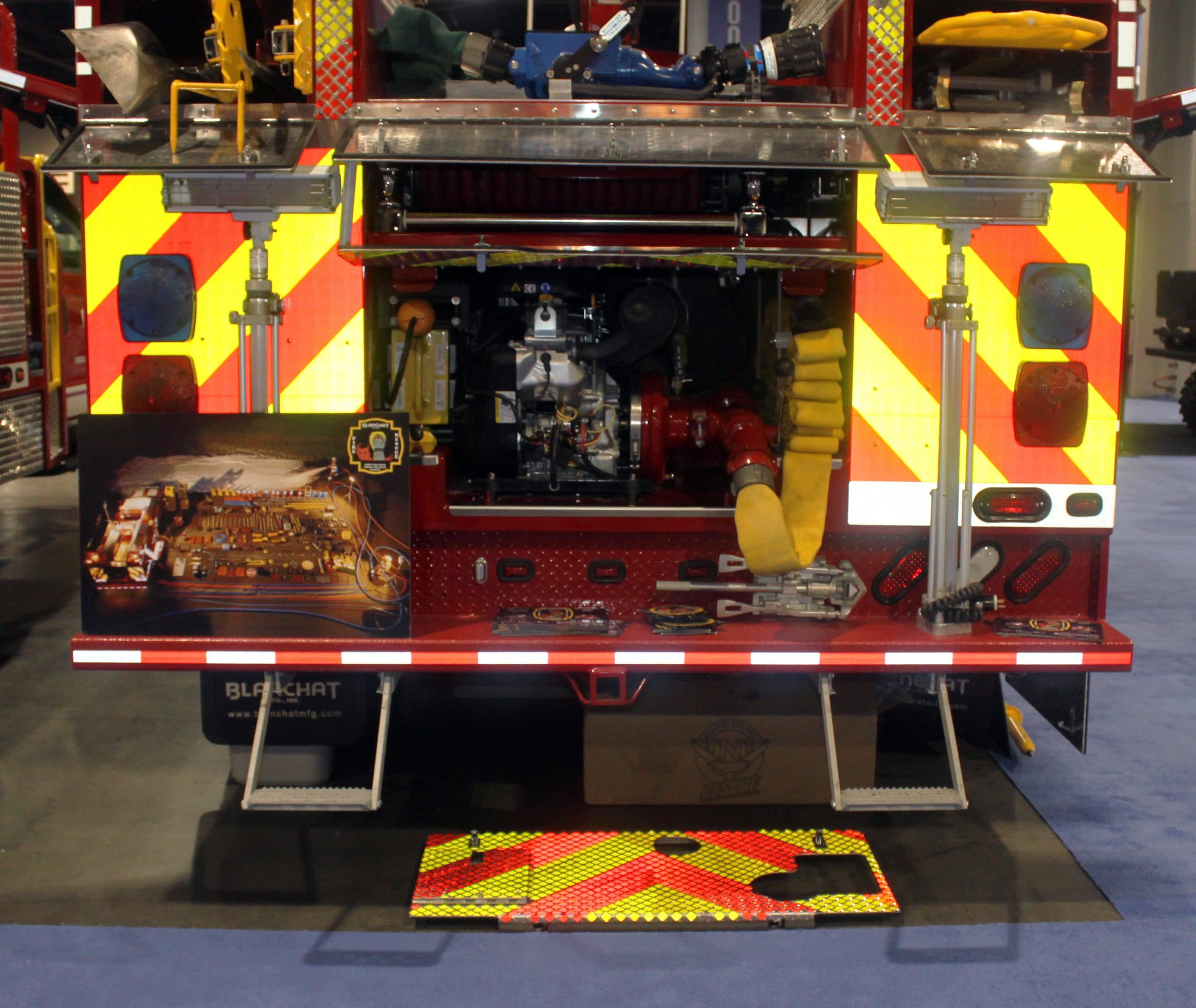

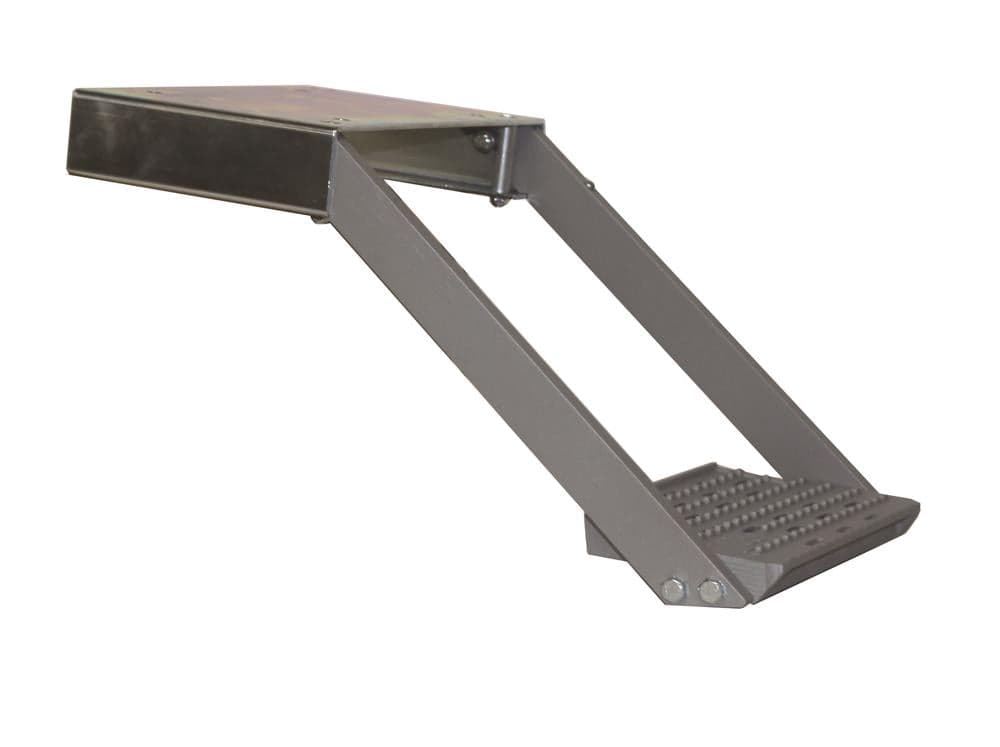

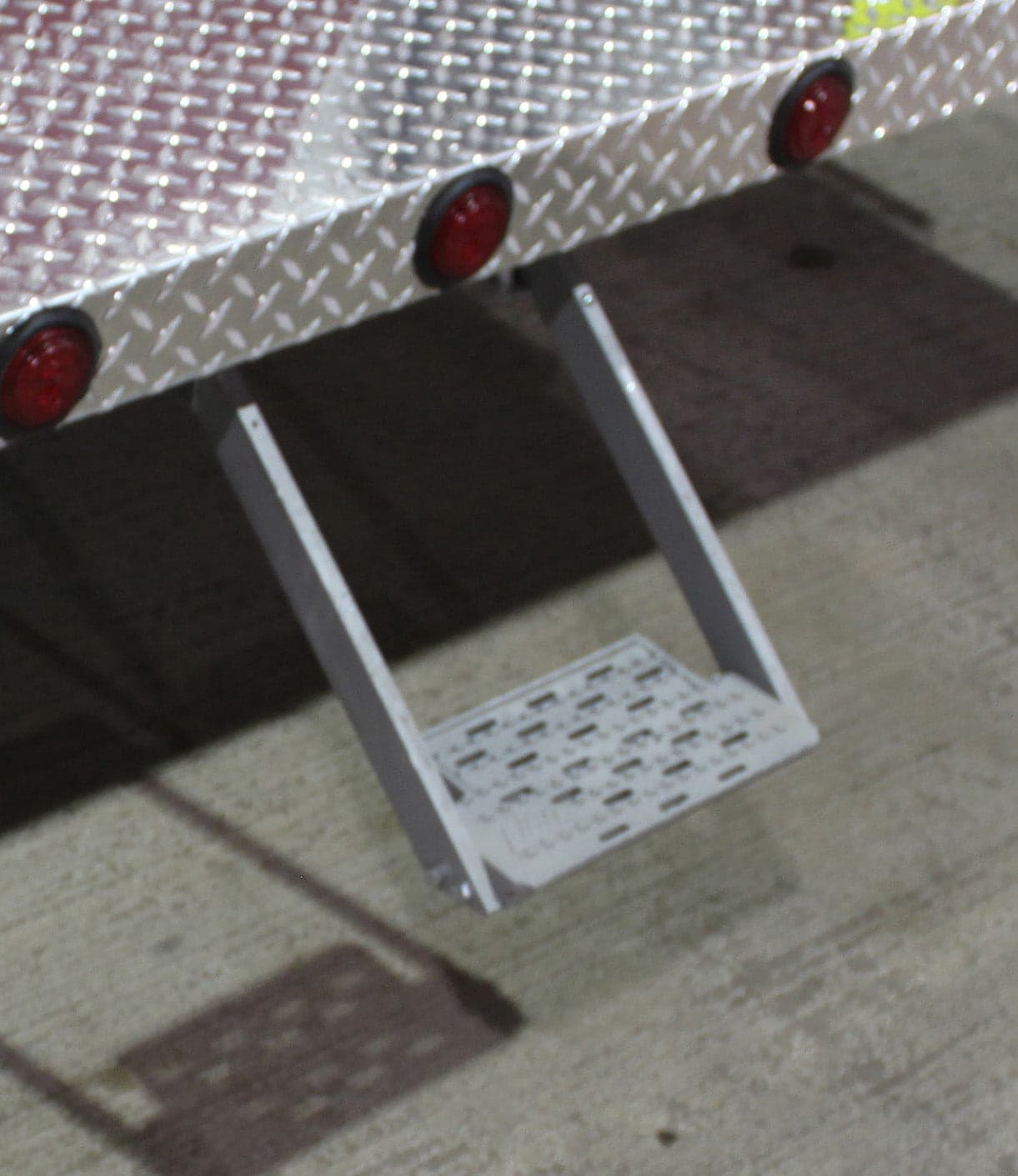

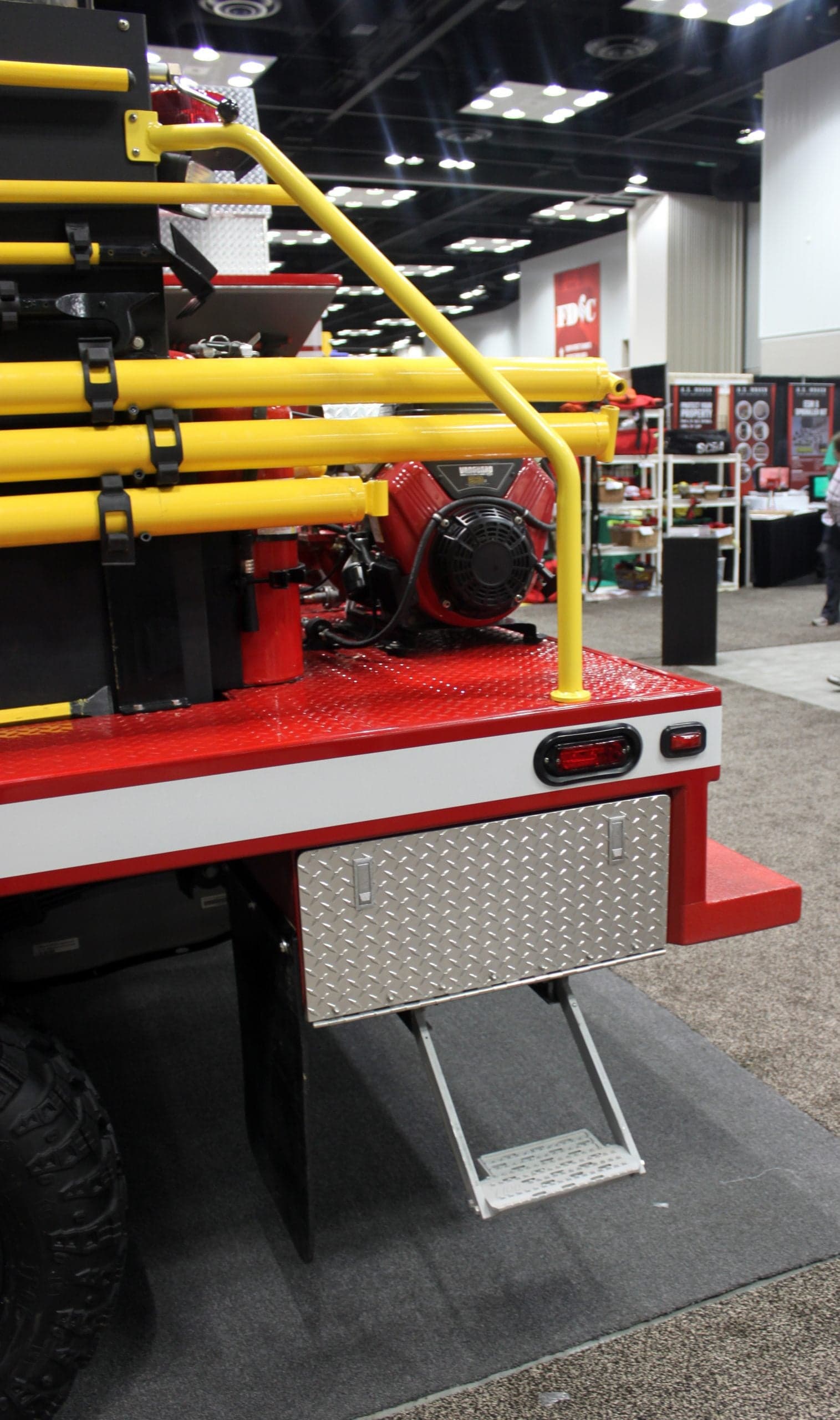

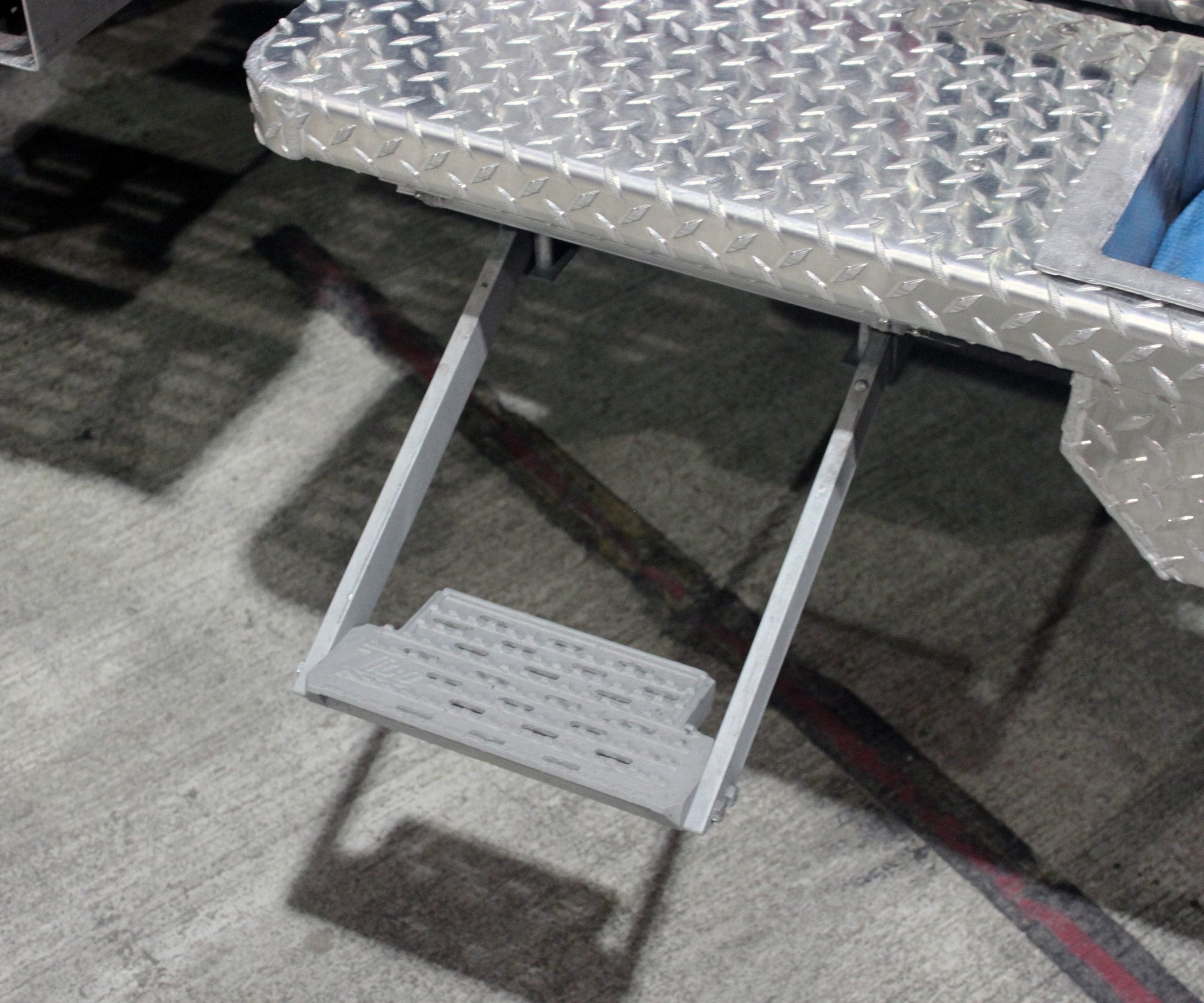

The Manual Pull-out Step is a heavy-duty slide-out step designed to provide safe, convenient access below pump panels, hose beds, and other elevated areas of fire apparatus. The step manually slides out when needed to create an optimal stepping distance and easily tucks away when not in use.
Constructed from high-strength aluminum alloy and steel, the step is powder-coated and plated for corrosion resistance and can be retrofitted onto existing apparatus. Slots in the non-skid stepping surface allow mud and debris to fall through, helping maintain dependable traction and safer footing in demanding conditions.
Features
• Heavy-duty manual pull-out step design
• Slides out when needed and tucks away when not in use
• Creates an optimal stepping distance below pump panels, hose beds, and other elevated areas
• Can be retrofitted onto existing apparatus
• High-strength aluminum alloy and steel construction
• Powder-coated and plated for corrosion resistance
• Slotted stepping surface allows mud and debris to fall through
• Non-skid surface provides dependable traction
• Sustains a 500 lb. static load
• Meets NFPA requirements for slip resistance and static load
Specifications
• Manufacturer: Ziamatic
• Product Type: Manual Pull-out Step
• Construction: High-Strength Aluminum Alloy and Steel
• Finish: Powder-Coated and Plated
• Stepping Surface: 11" W x 5" D
• Stepping Surface Type: Slotted, Non-Skid
• Drop Distance: 8"
• Static Load Capacity: 500 lbs.
• Retrofit Compatible: Yes
• Compliance: Meets NFPA Requirements for Slip Resistance and Static Load
