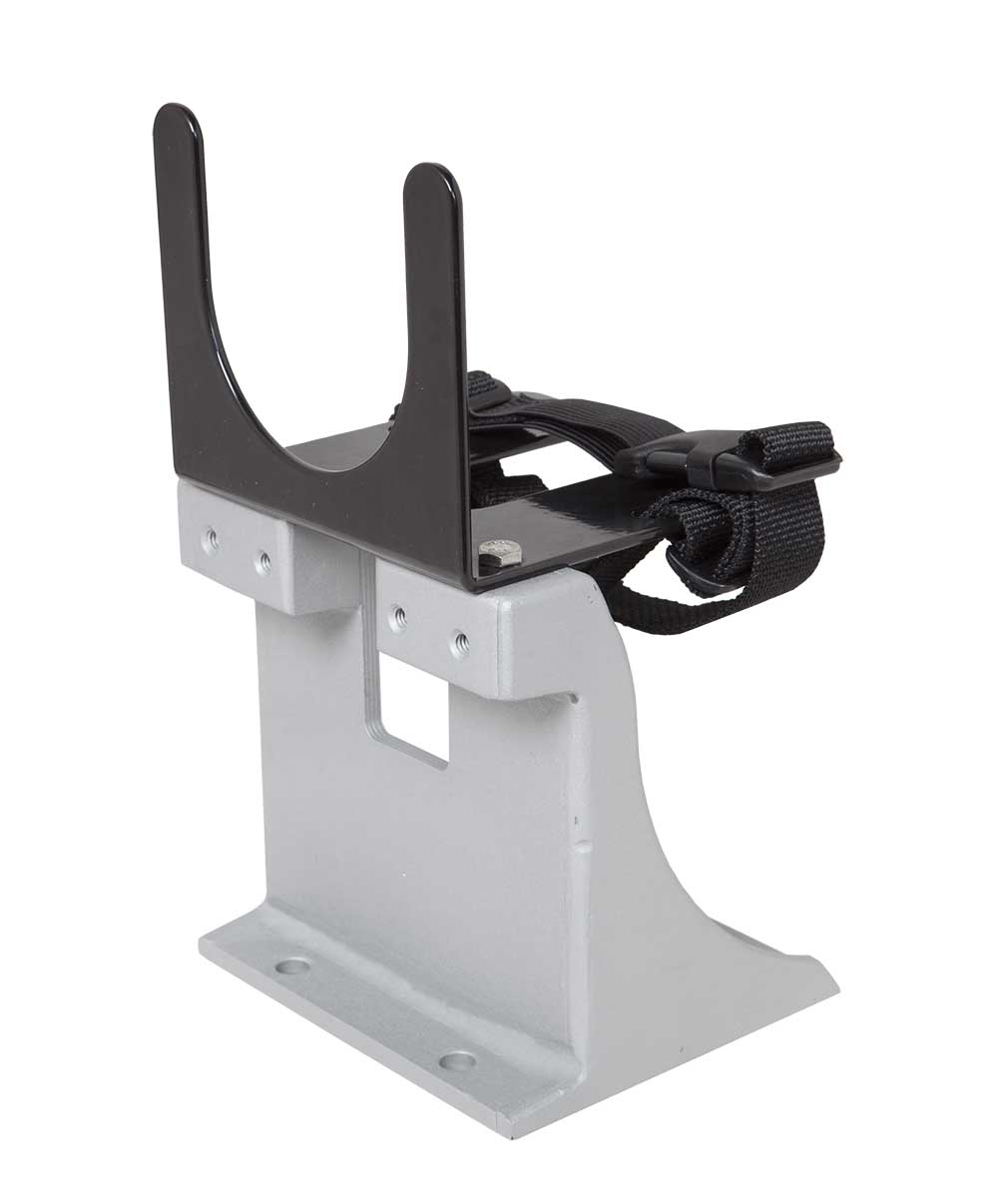

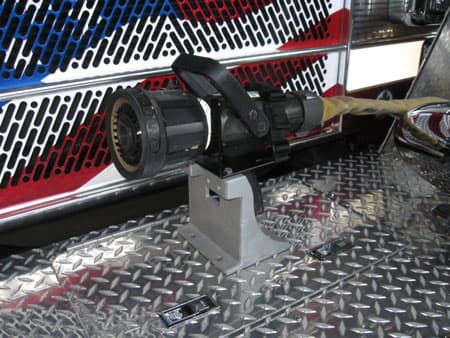

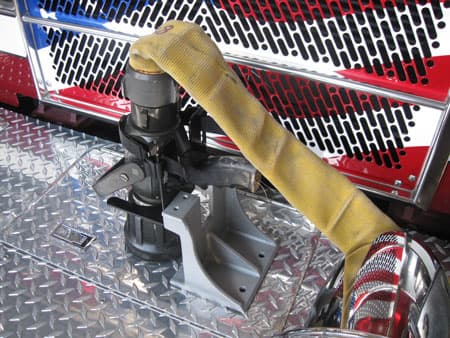

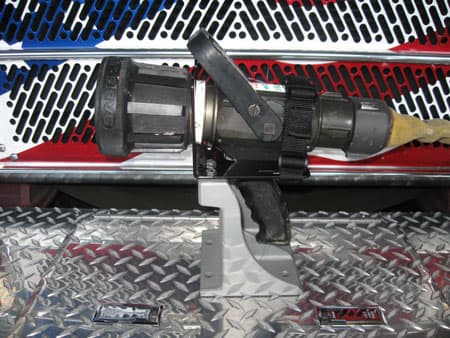

The Multiversal Nozzle Bracket is a versatile nozzle storage solution designed to provide four mounting configurations from a single bracket. The base can be mounted vertically or horizontally on an apparatus, while the adjustable top bracket can be positioned to hold the nozzle either vertically or horizontally.
The base is constructed from heavy-duty cast aluminum for durability, while the top bracket features a PVC coating to help protect the nozzle during storage and transport. Its adjustable design accommodates nozzles with handles up to 1-1/2" wide and 4-3/8" long, with a maximum nozzle diameter of 3-1/2".
Features
• One mount provides four mounting configurations
• Base can be mounted vertically or horizontally
• Top bracket adjusts to hold the nozzle vertically or horizontally
• Heavy-duty cast aluminum base
• PVC-coated top bracket helps protect the nozzle
• Versatile design accommodates multiple apparatus storage configurations
• Designed for secure and convenient nozzle storage
• Accommodates nozzle handles up to 1-1/2" wide
• Accommodates nozzle handles up to 4-3/8" long
• Holds nozzles up to 3-1/2" in diameter
Specifications
• Manufacturer: Ziamatic
• Product Type: Nozzle Mounting Bracket
• Base Material: Heavy-Duty Cast Aluminum
• Top Bracket Finish: PVC-Coated
• Base Mounting Orientation: Horizontal or Vertical
• Nozzle Storage Orientation: Horizontal or Vertical
• Maximum Handle Width: 1-1/2"
• Maximum Handle Length: 4-3/8"
• Maximum Nozzle Diameter: 3-1/2"
• Mounting Configurations: 4
