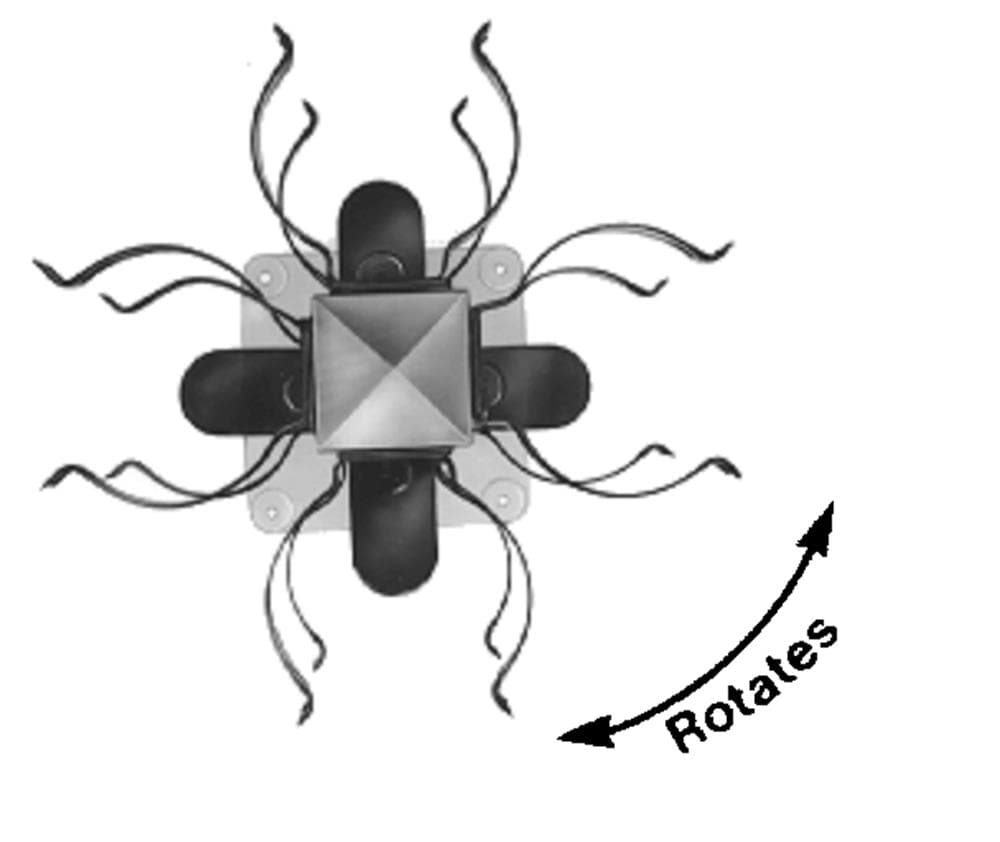

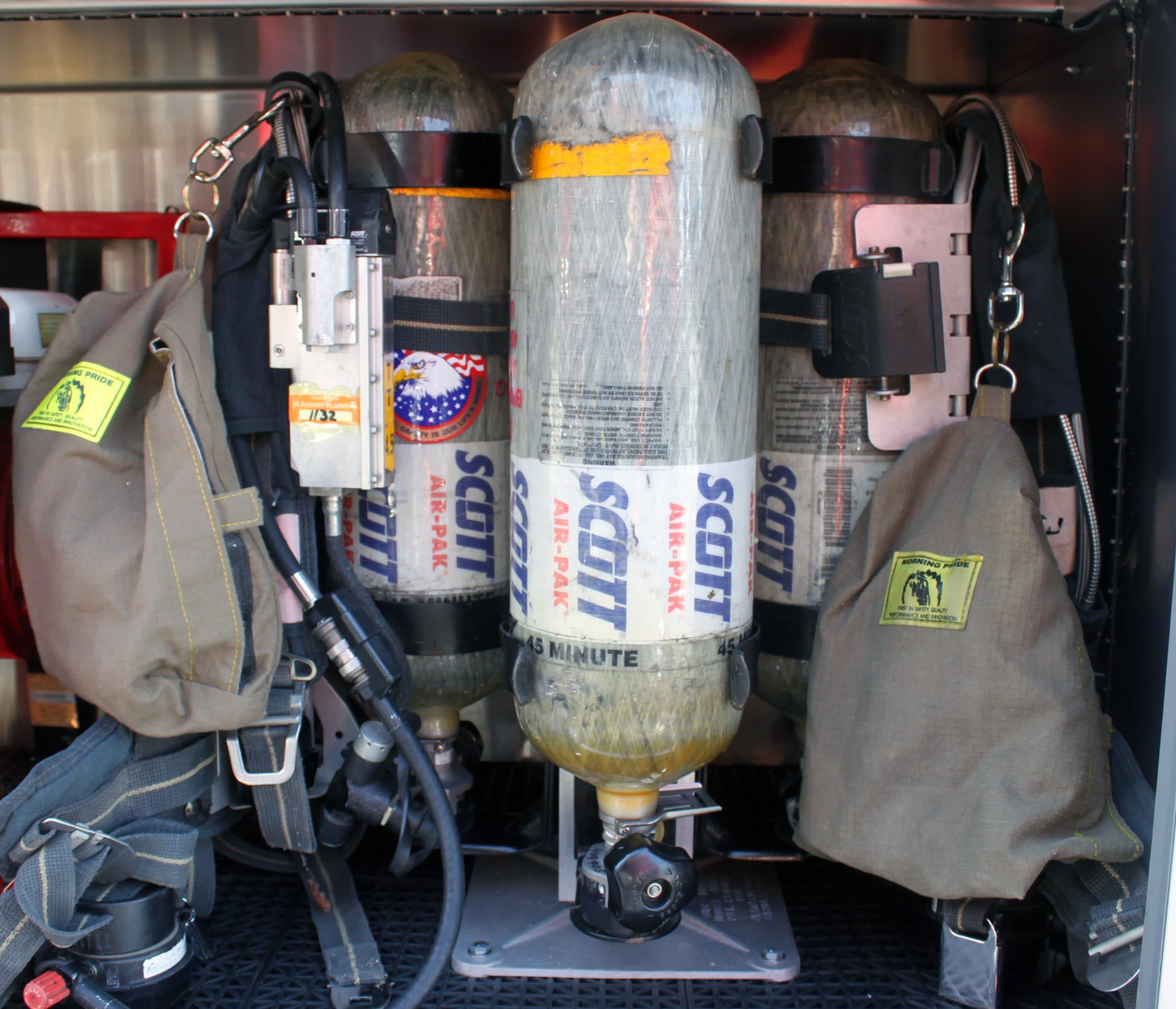

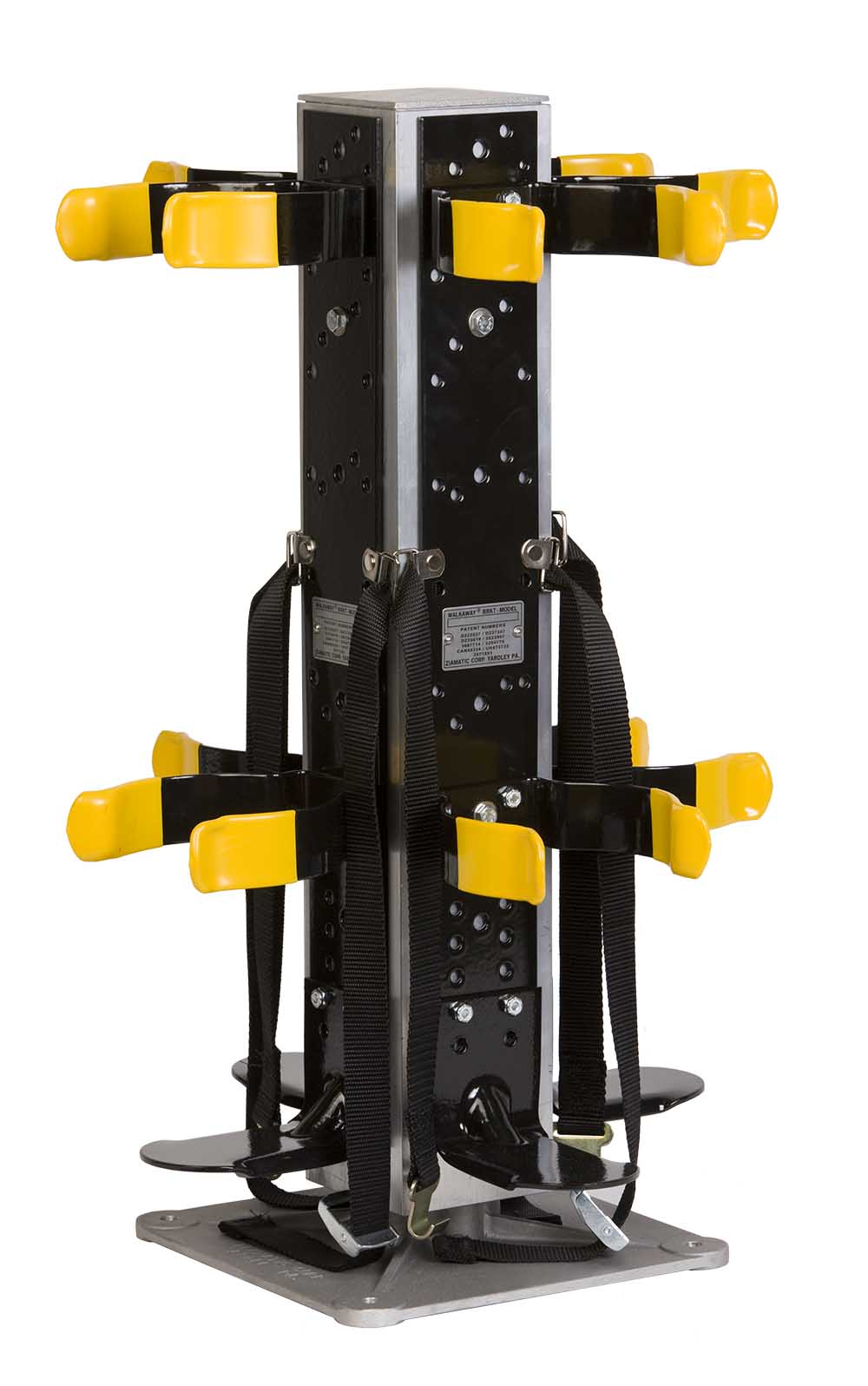

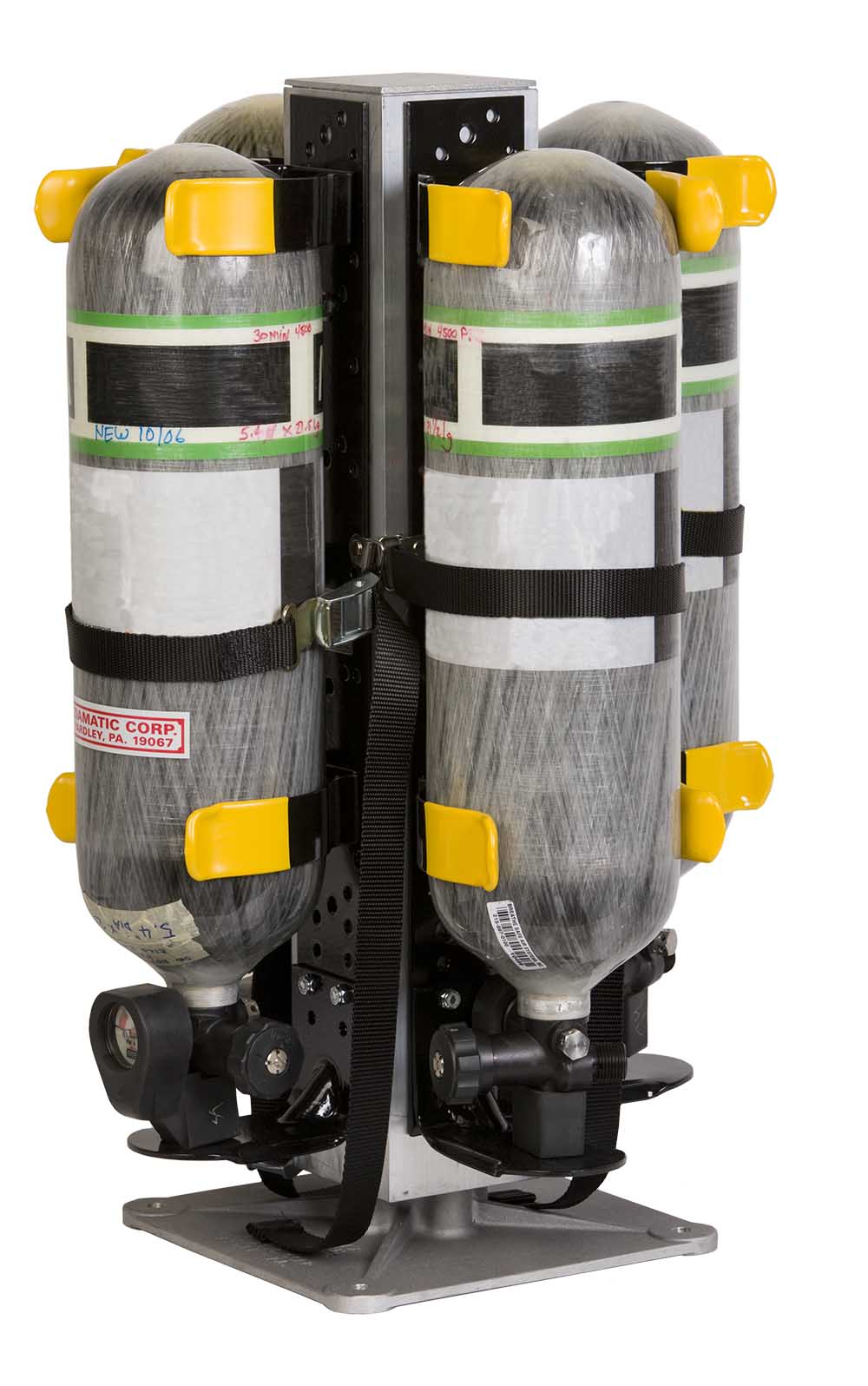

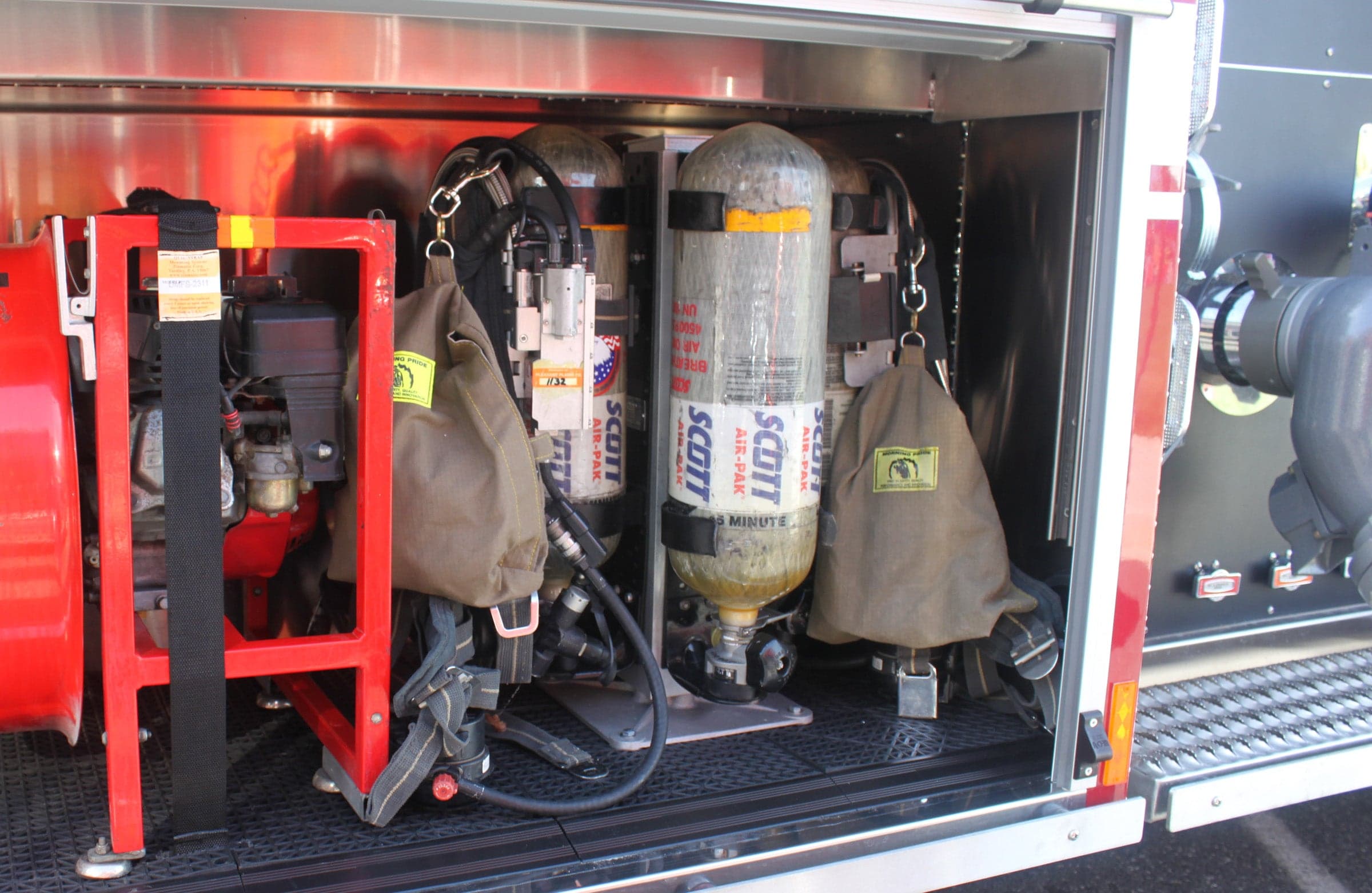

The QUIC-INDEX Multiple Bracket Holder is a space-saving SCBA storage system designed to hold up to four air packs or spare cylinders in the compartment space normally required for one. Featuring an easy-to-use "Lazy Susan" style rotating platform, the QUIC-INDEX provides efficient organization and convenient access to multiple SCBAs or cylinders while maximizing available apparatus compartment space.
The rotating holder automatically stops and locks into position after each 90-degree rotation, presenting the next air pack or cylinder for safe and convenient retrieval. Each cylinder is secured using a Ziamatic WALKAWAY Spring Clip Bracket, sold separately. The basic unit measures just 10" W x 10" D x 25-1/2" H before brackets and stored equipment are added.
Features
• Stores up to four SCBA air packs or spare cylinders
• Maximizes available apparatus compartment space
• "Lazy Susan" style rotating platform provides easy access
• Rotates in 90-degree increments
• Automatically stops and locks after each 90-degree rotation
• Presents each cylinder individually for safe and convenient retrieval
• Each cylinder is secured with a WALKAWAY Spring Clip Bracket
• WALKAWAY Spring Clip Brackets sold separately
• Compact basic unit footprint
• Designed for efficient fire apparatus SCBA and cylinder storage
Specifications
• Manufacturer: Ziamatic
• Product Type: Multiple SCBA Bracket Holder
• Capacity: Up to 4 Air Packs or Spare Cylinders
• Platform Style: Rotating "Lazy Susan"
• Rotation Increment: 90 Degrees
• Basic Unit Dimensions: 10" W x 10" D x 25-1/2" H
• Brackets Included: No
• Required Brackets: WALKAWAY Spring Clip Brackets (Sold Separately)
• Overall Width Requirement: Cylinder or Air Pack Depth x 2 + 6"
• Overall Height Requirement: Cylinder or Air Pack Length + 1-1/2"
