The Ziamatic QUIC-SLIDE Swing-Down SCBA Bracket is a compartment-mounted SCBA storage system designed to let firefighters comfortably don breathing apparatus from a choice of two different heights. Ideal for moving spare or first-attack SCBAs outside the crew cab, the QUIC-SLIDE provides convenient access to compartment-stored air packs while helping reduce firefighter exposure to harmful contaminants.

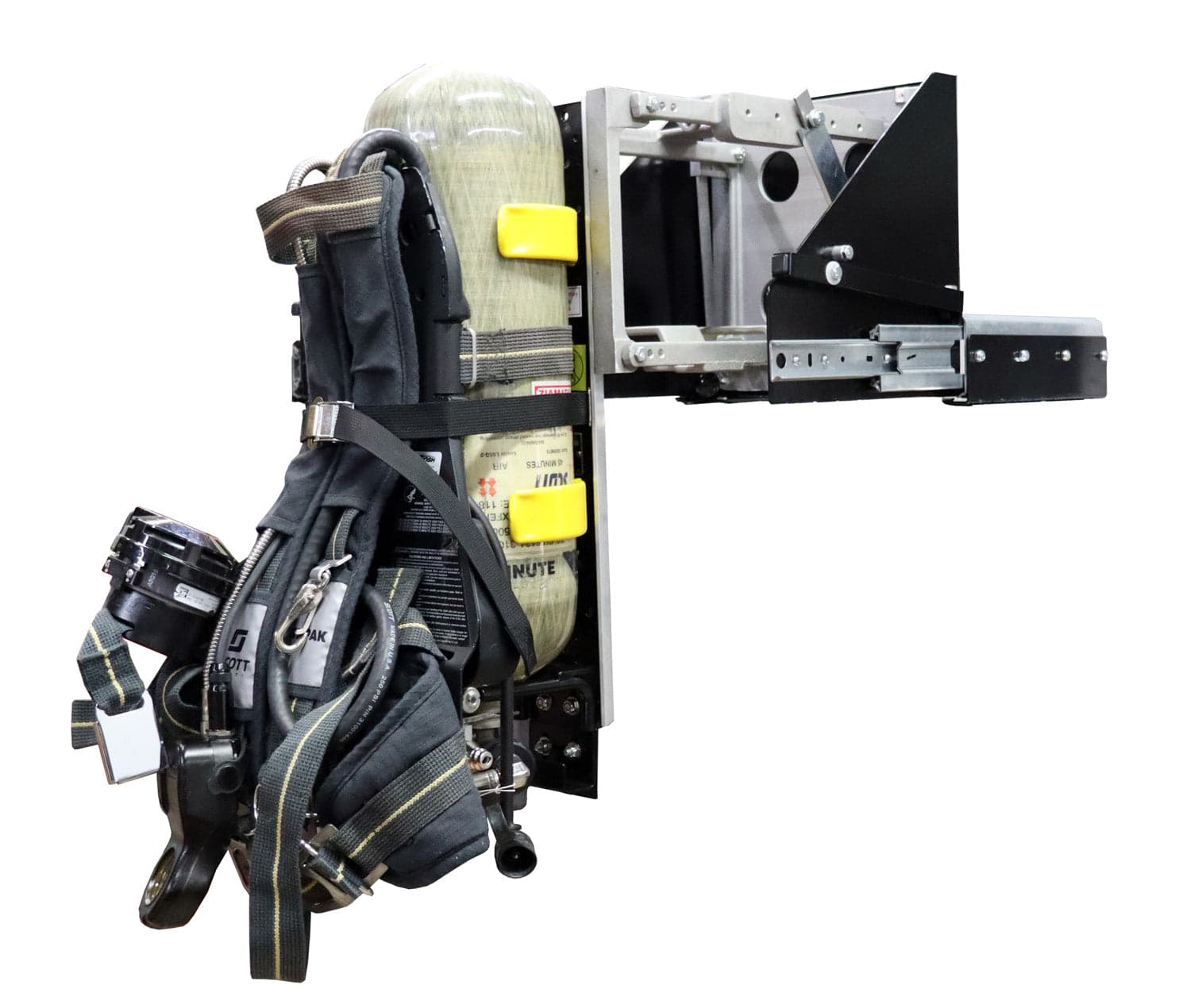

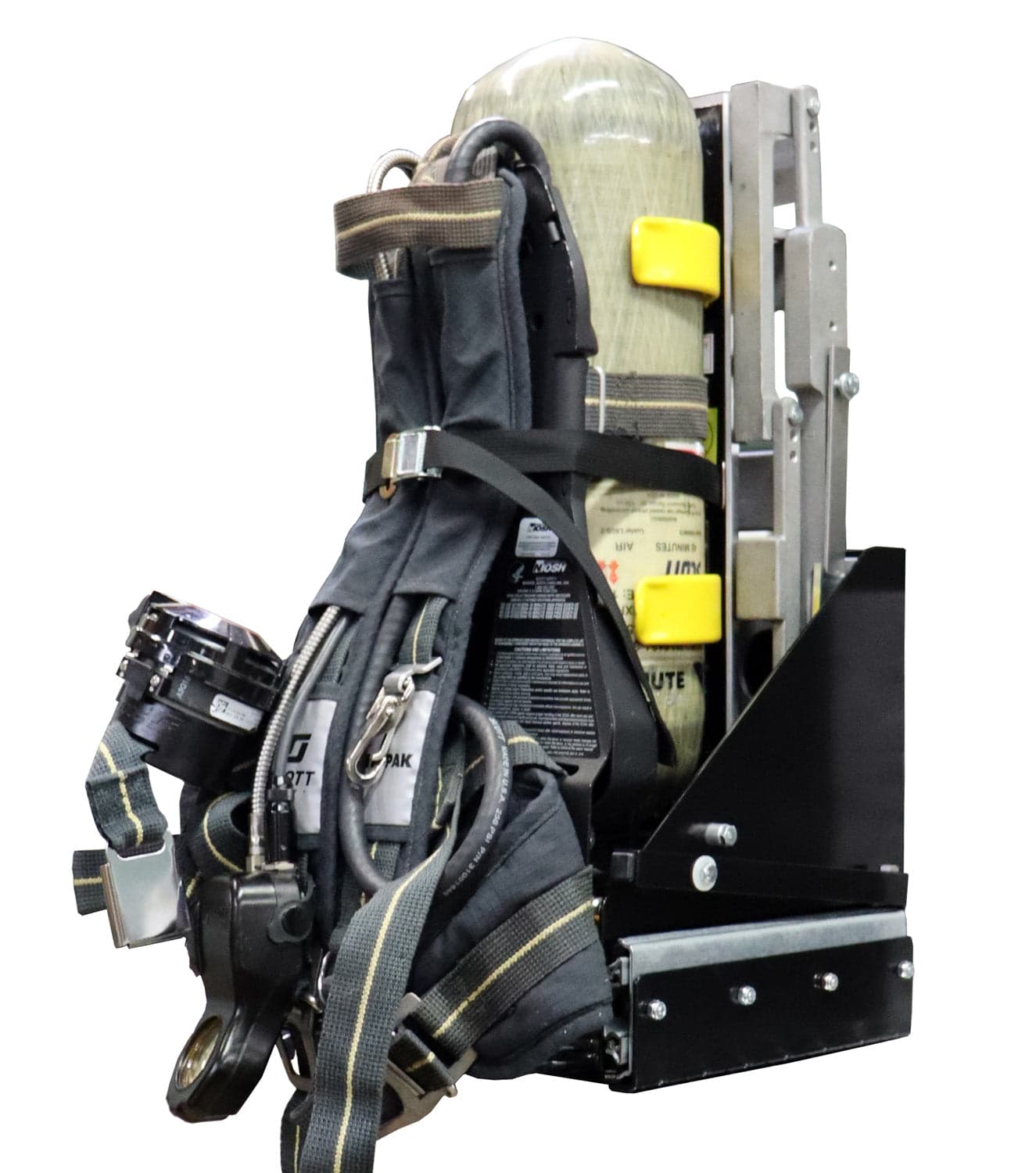

The bracket slides out of the apparatus compartment and locks into position, allowing the firefighter to don the SCBA from the higher stored position or swing the assembly down for lower access. Three locking points securely hold the assembly in place, while spring clips and a positive holding strap retain the SCBA. By bringing heavy air packs to a more accessible position, the QUIC-SLIDE helps reduce overhead reaching and strain while also making SCBA and harness inspections easier.
Features
• Slides out of the compartment and locks securely into position
• Swing-down design provides a lower SCBA donning position
• Provides two different donning heights for personnel of varying heights
• Can be used from the higher slide-out position without swinging down
• Allows SCBA to be donned from a comfortable standing position
• Ideal for spare packs and first-attack SCBAs
• Helps keep SCBAs outside the crew cab
• Helps reduce firefighter exposure to harmful contaminants
• Three locking points include two slide locks and one swing-down lock
• Spring clips securely retain the SCBA
• Positive holding strap provides additional SCBA retention
• Helps minimize strain caused by reaching overhead for heavy SCBA
• Helps reduce the potential for gear to scratch or damage the apparatus
• Provides easier access for SCBA and harness inspection
• Available for 30-minute and 45-minute 4500 PSI cylinders
• Available without an SCBA bracket
Specifications
• Manufacturer: Ziamatic
• Product Type: Slide-Out Swing-Down SCBA Bracket
• Minimum Compartment Space: 24-1/2" H x 12" D
• SCBA Valve Lowering Distance: 14" from Compartment Shelf
• Approximate Harness Extension: 21" from Apparatus Sidewall
• Locking System: Two Slide Locks and One Swing-Down Lock
• SCBA Retention: Spring Clips and Positive Holding Strap
• 30-Minute 4500 PSI Cylinder: Model QSSD-5
• 45-Minute 4500 PSI Cylinder: Model QSSD-6
• Unit Less SCBA Bracket: Model QSSD-LB
